(6) Flip the propeller shaft yoke and install the
bearing cap onto the opposite trunnion. Install a
snap ring (Fig. 30).
(7) Fit the link yoke on the remaining two trun-
nions and press both bearing caps into place (Fig.
31).
(8) Install snap rings.
(9) Install the centering kit assembly inside the
link yoke making sure the spring is properly posi-
tioned (Fig. 32).

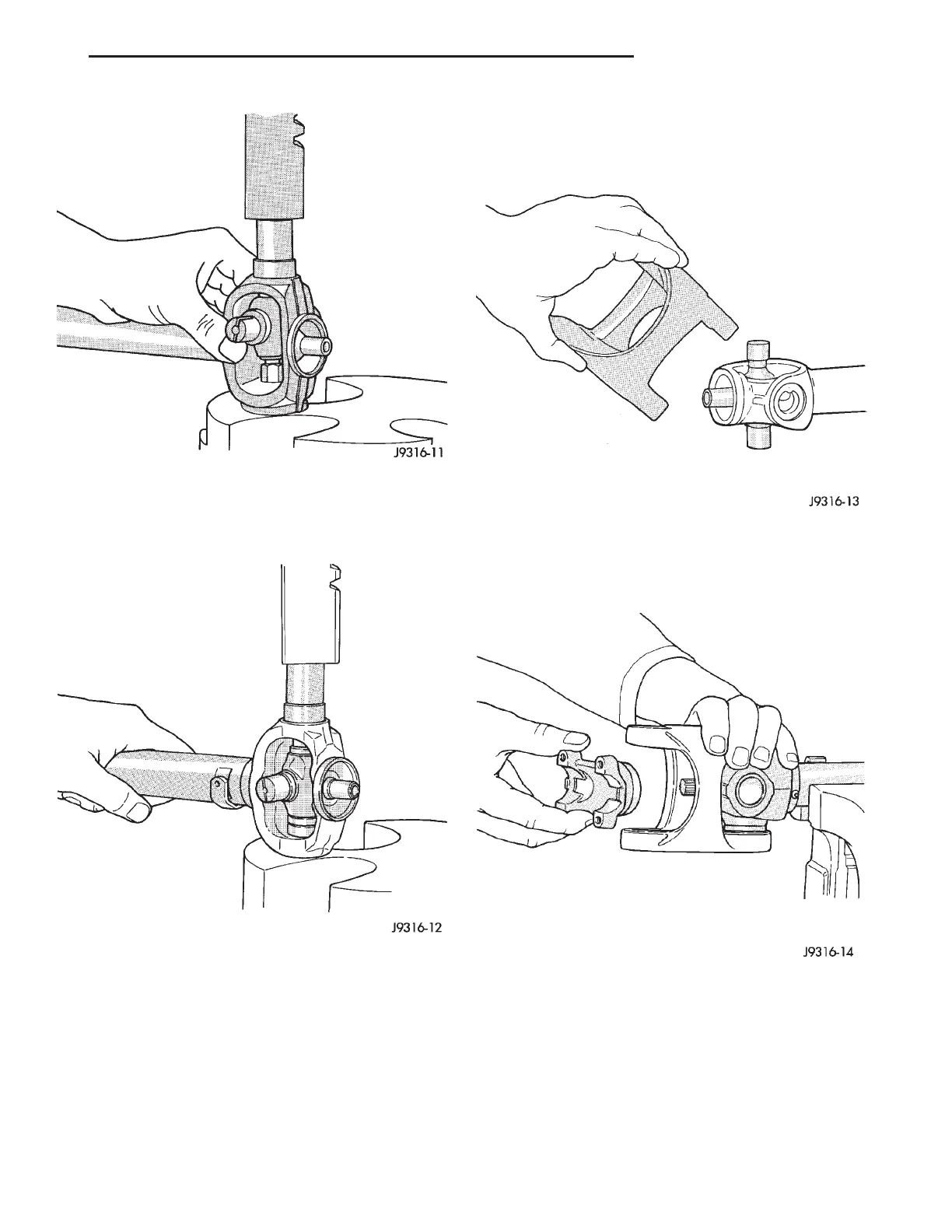

Fig. 29 Press In Bearing Cap
Fig. 30 Press In Bearing Cap
Fig. 31 Install Link Yoke
Fig. 32 Install Centering Kit
