INSTALLATION
Threads of new oxygen sensors are factory coated
with anti-seize compound to aid in removal. DO
NOT add any additional anti-seize compound to
threads of a new oxygen sensor.

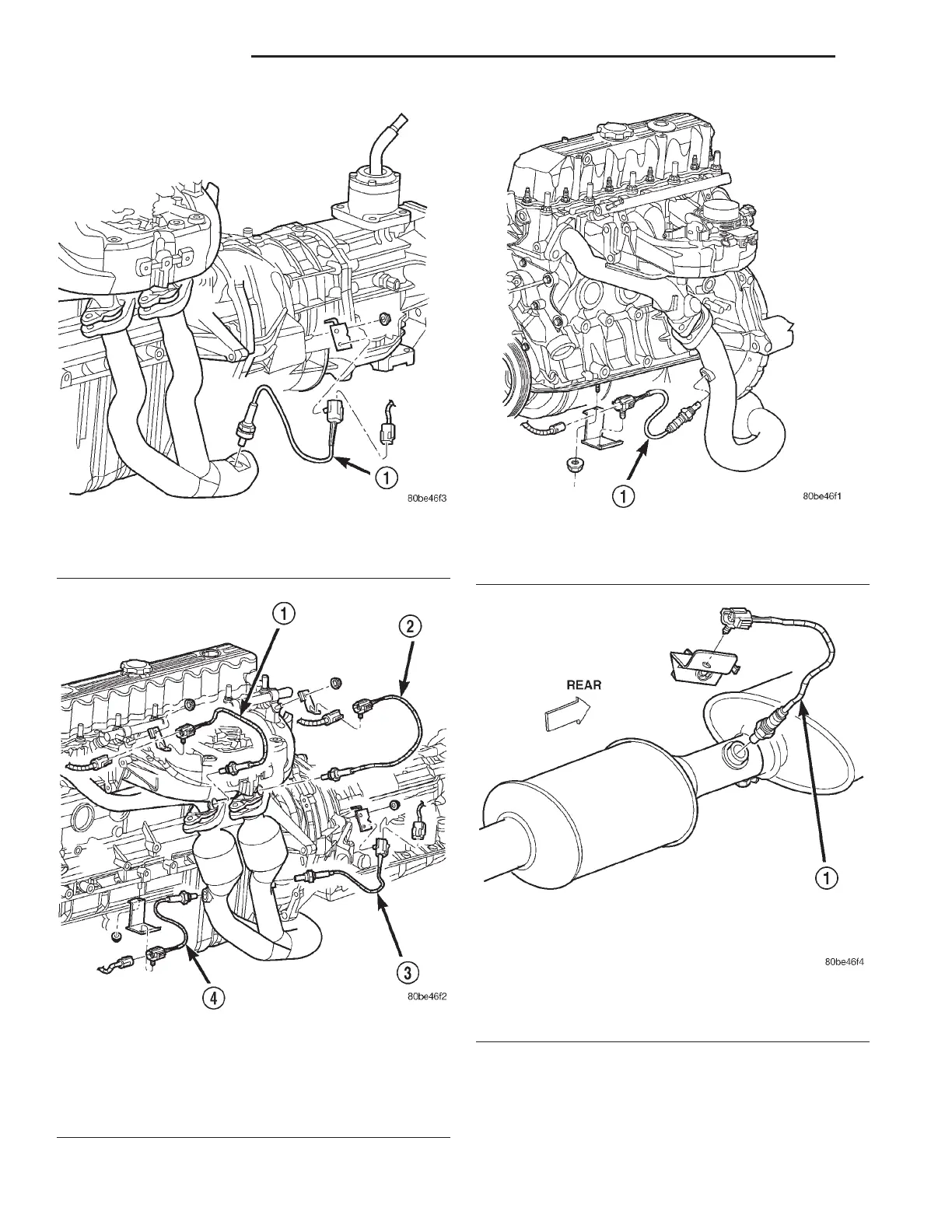

Fig. 33 Front Oxygen Sensor—4.0L—Federal
Emissions
1 – 1/1 O2S
Fig. 34 Oxygen Sensors—4.0L—California
Emissions
1 – 1/1 O2S
2 – 2/1 O2S
3 – 2/2 O2S
4 – 1/2 O2S
Fig. 35 Front Oxygen Sensor—2.5L—Federal
Emissions
1 – 1/1 O2S
Fig. 36 Rear Oxygen Sensor—2.5L/4.0L—Federal
Emissions
1 – 1/2 O2S
14 - 48 FUEL SYSTEM XJ
REMOVAL AND INSTALLATION (Continued)
