10.5. OUTRIGGERS OPENING ANGLES (SWING FUNCTION)

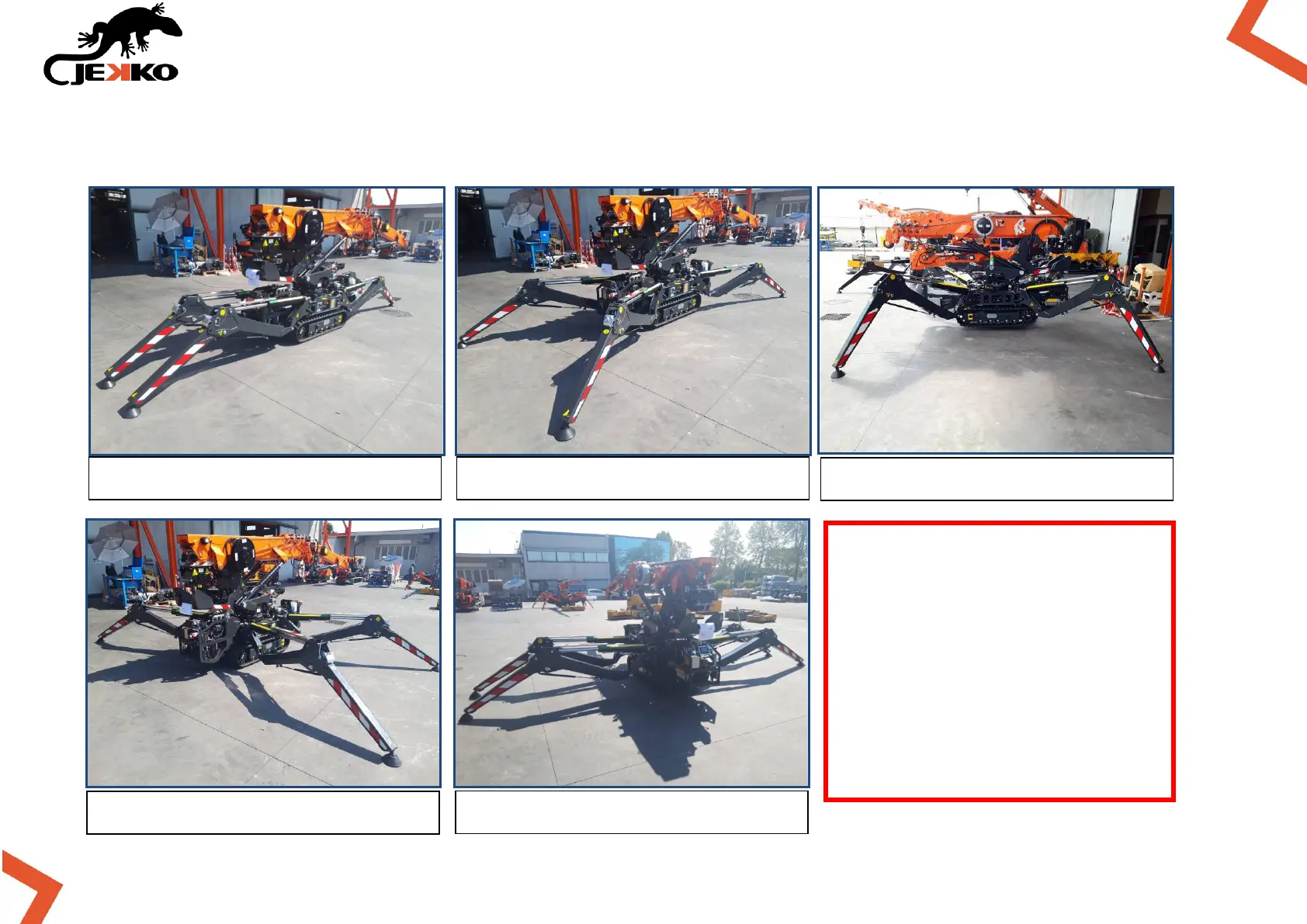

Possible outriggers opening angles: 0° - 20° - 47° - 68° - 90°.
All outriggers at 0°
All outriggers at 20°
All outriggers at 47°
The machine can work with
differentiated areas and in
many different outriggers
configurations.
NOTE:
For further details about the
overall dimensions check the
Technical data.
All outriggers at 68°
All outriggers at 90°
