10.6. OUTRIGGERS EXTENSION
Possible outriggers extension positions: 2.15m or 2.62m.
The load charts are calculated
according to the outriggers opening
angles (swing) and extension.
NOTE:
When the outrigger is in retracted
position, the lifting capacity will be
de-rated
(less stability = less capacity)

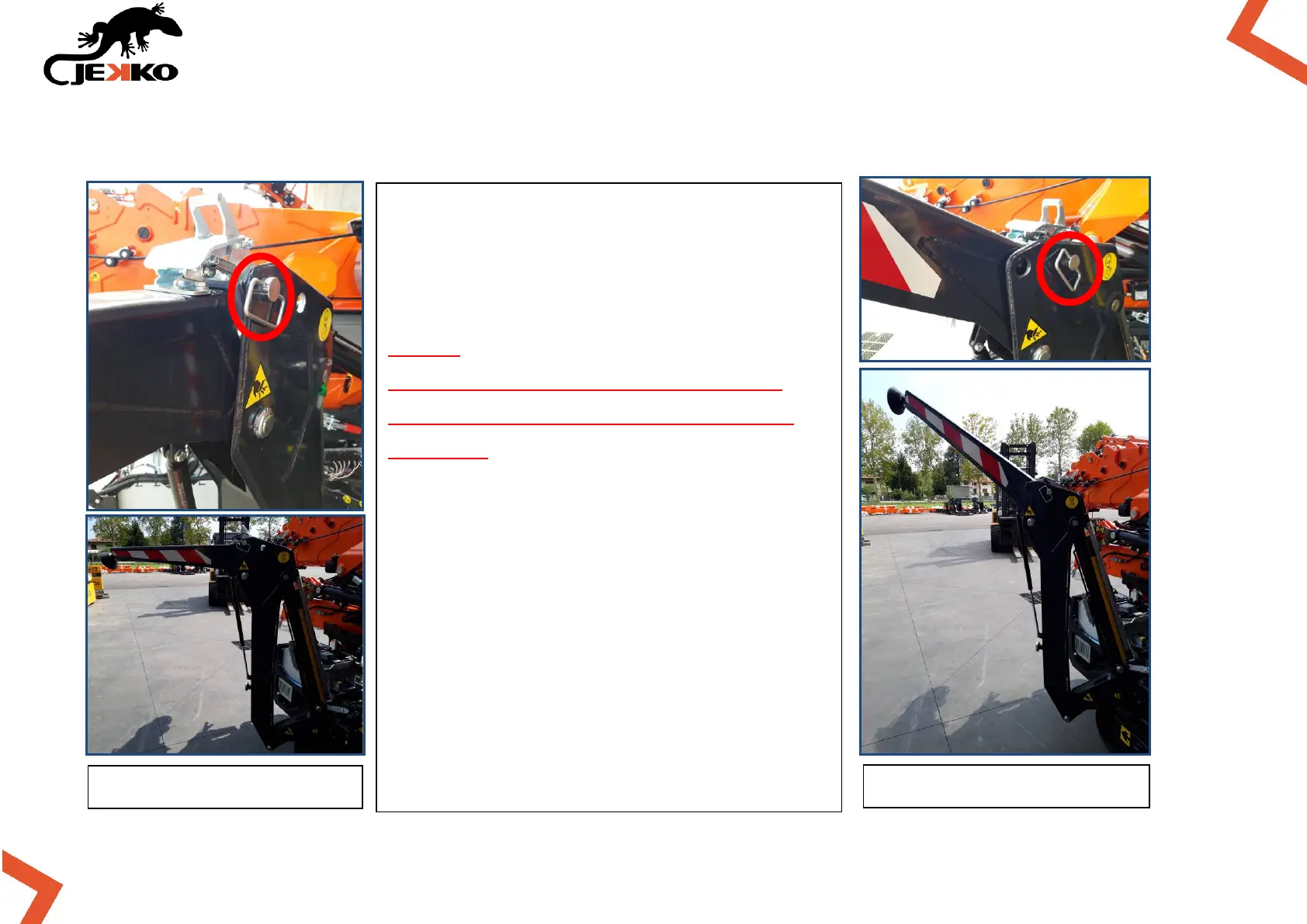

Each outrigger has got two sensors:
• on ground position sensor;
• outrigger extension sensor.
The machine can be operated in
differentiated lifting capacity areas
applying different load charts
according to the stability conditions.
