SPX532 – QUICKSTART GUIDE
12.2. CONDITIONS TO ENABLE PICK & CARRY
The following conditions must be respected to enable the pick & carry functions:
•
All 4 outriggers lifted up from the ground
•
No load (only at the moment of enabling).

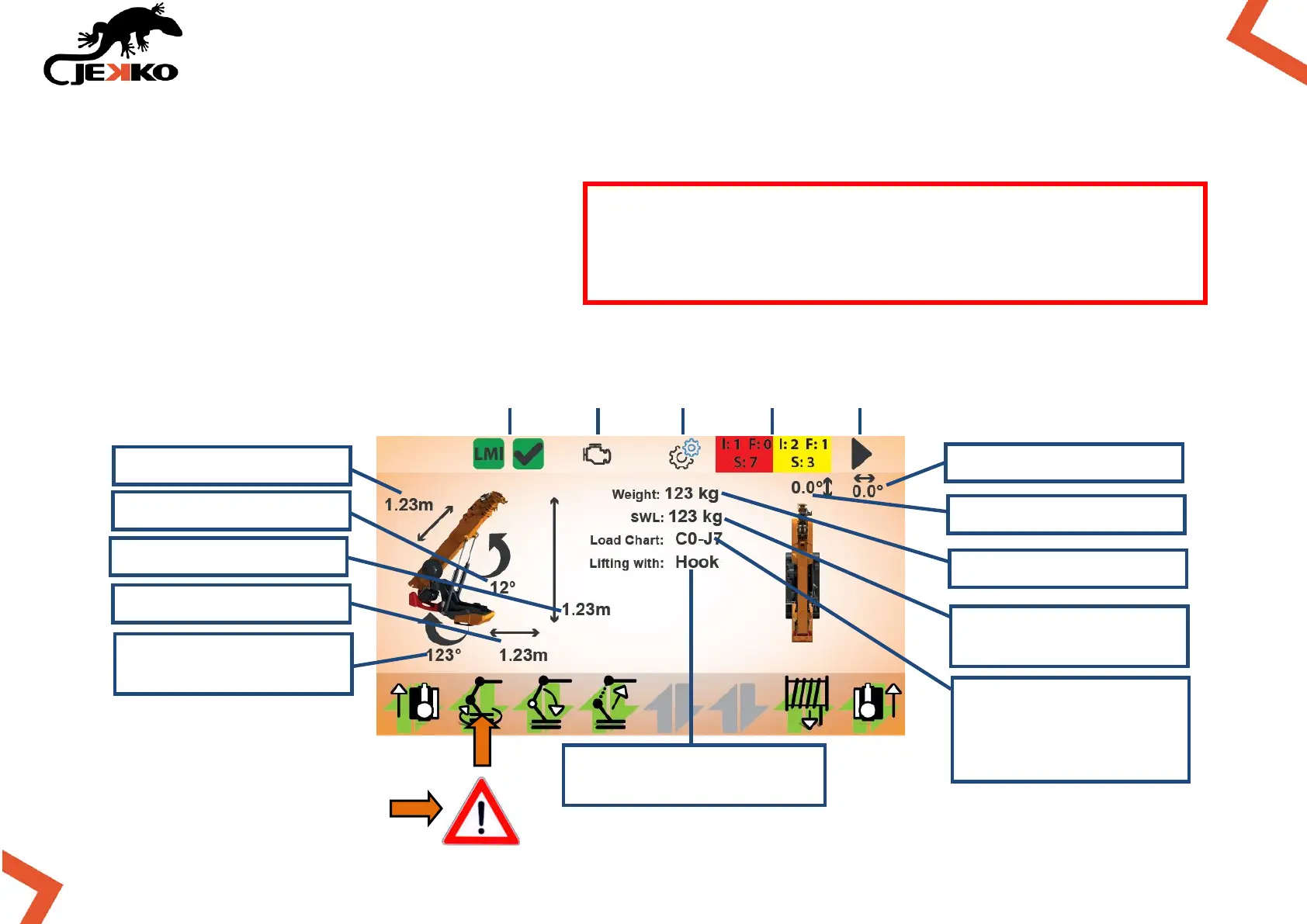

12.3. PICK & CARRY SCREEN APPEREANCE
PAY ATTENTION!
TURRET ROTATION ENABLED!
If these conditions are not respected, the icons of
the levers won’t appear on the display and it won’t
be possible to operate the functions.
LMI config
page
Engine
page
Settings
page
Warning &
alarms page
Next
page
MAIN BOOM LENGTH
MAIN BOOM ANGLE
LEFT/RIGHT INCLINATION
FRONT/BACK INCLINATION
MAIN BOOM HEIGTH
RADIUS
CRANE TURRET ROTATION
ANGLE
ACTUAL LOAD LIFTED
MAX LOAD LIFTABLE IN
THE ACTUAL POSITION
ACTUAL CONFIG. AND
LOAD CHART
C = CONFIGURATION
J = LOAD CHART
CONFIGURATION
(HOOK, NUMBER OF FALLS)
