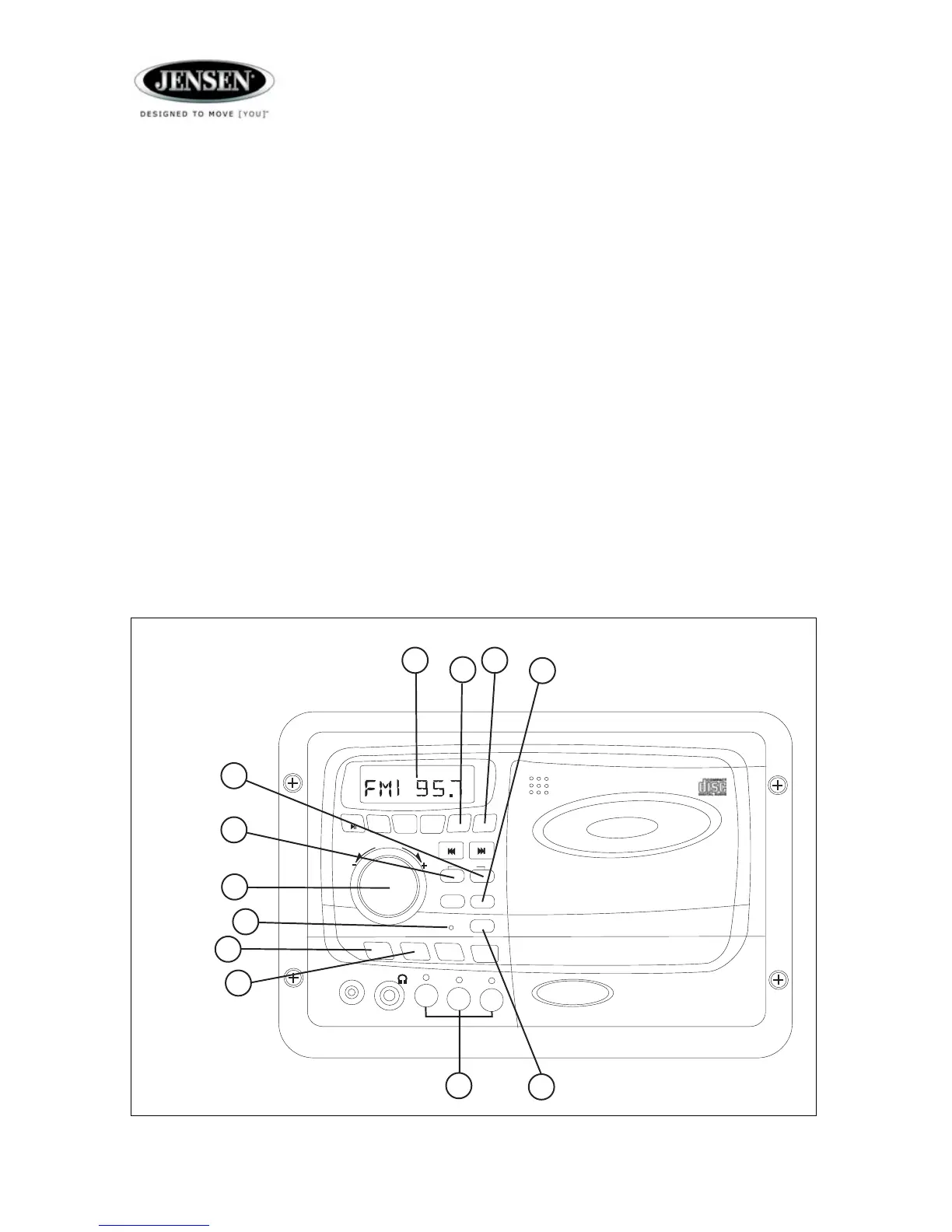

Basic Operation
1. Power / Volume Control
Press the power button (1) to turn the unit on or off. This button also serves as the volume control
knob; rotate clockwise or counterclockwise to increase or decrease the volume output.
2. Mute / Loudness
Press MUTE (2) momentarily to silence the audio output in tuner, CD or auxiliary input mode.
Press MUTE again to resume the previous volume level.
3. Liquid Crystal Display (LCD)
The liquid crystal display (LCD) panel (3) displays the frequency, time and activated functions.
Note: When subjected to cold temperatures for an extended period of time, LCD panels will
take longer to illuminate and the display visibility may slightly decrease. Optimal LCD
operation will return to normal when the temperature increases to a normal range.
4. Audio Adjustment
Press AUD (4) momentarily to step through the following audio adjustment options: Volume, Bass,
Treble, Balance (left to right) and Speaker (A to B) and Fader (front to back). When the desired
option appears in the display, rotate the volume control knob (1) to adjust that audio feature. When
no adjustments have been made for three seconds, the unit will resume normal operation.
Basic
Operation

Jensen AWM910 Specifications

Power

power supply requirements	DC 12 Volts, Negative Ground
operating voltage	10-16VDC
total system power	50 Watts Maximum

FM Tuner

tuning range	87.5-107.9FM
sensitivity	<5uV
stereo separation at 1 kHz	>30dB

AM Tuner

tuning range	530-1710
sensitivity	<30uV

CD Player

frequency response	20Hz to 20kHz
signal to noise	65dB
compatible CD formats	Audio CD, CD-R, R/W

Amplifier

output power	25 Watts per Channel
output wiring	2/4 Speaker and Headphone System
output impedance	Compatible with 4-8 Ohm Speakers, 4 Ohm Load Minimum

Weight and Dimensions

overall dimensions	10-7/16"(W) x 7"(H) x 6-1/4"(D)
mounting dimensions	9-3/8"(W) x 6-1/8"(H) x 6-1/4"(D)
weight	3.5 lbs.(1.7 Kg)
