CM715K
Before You Begin Installation
Before you begin, you will need tools, supplies and adapters. It is best to make sure you have
everything you need before you take your dashboard apart.
Installation
Prepare Radio for Installation
Tools and Supplies Needed
Basic Installation:
• Flat and Phillips screwdrivers
• Wire cutters
• Wire strippers
• Tools to remove existing radio (screw-
driver, socket wrench set or other tools)
• Electrical tape
Advanced Installation:
• Soldering iron
• Crimping tool
• 12 volt test light / Digital Meter
• Solder
• Crimp connectors
• 18 gauge wire for power connections
• Speaker wire

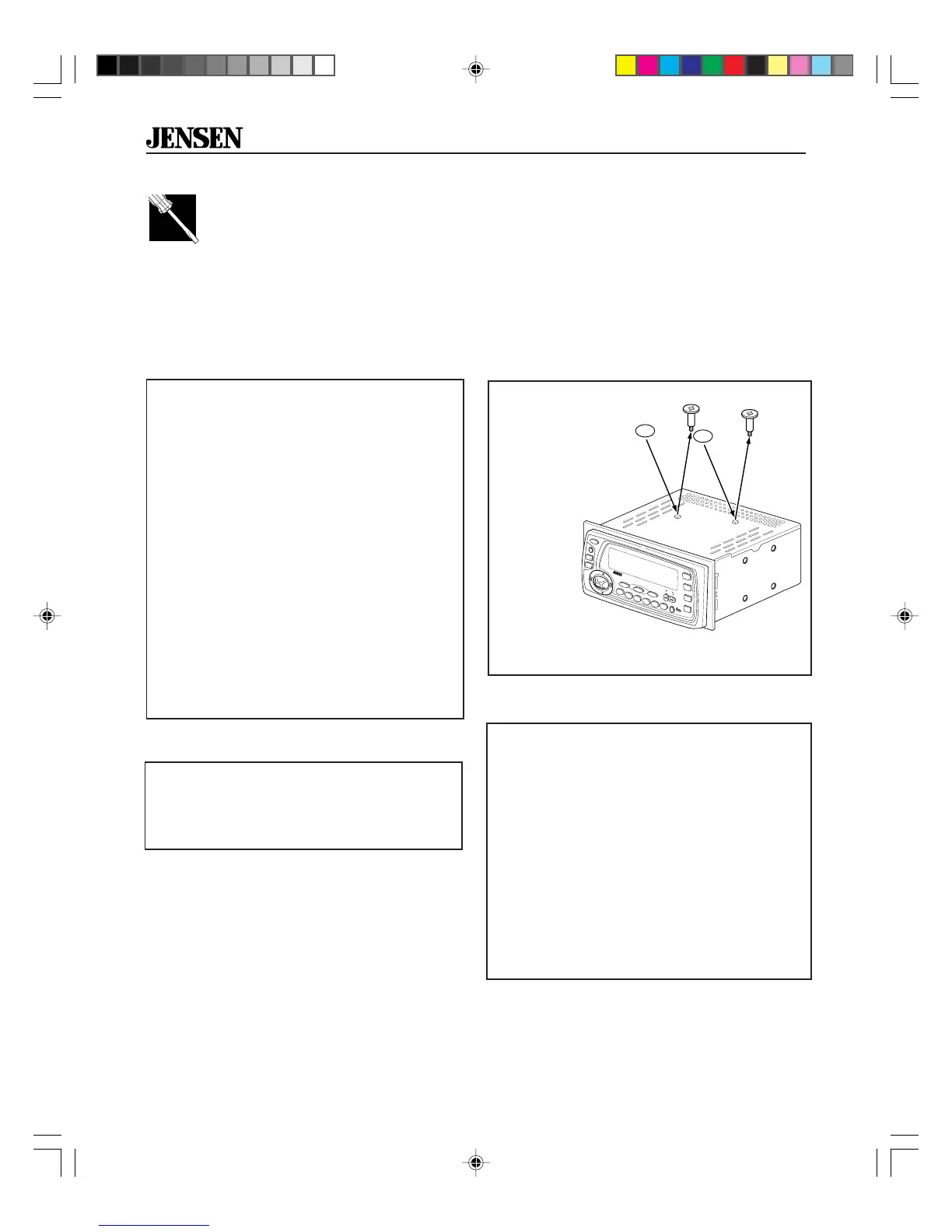

Remove transport
screws (you cannot
insert a CD until the
screws are removed)
Put adhesive dots
(from accessory kit)
over transport screw
holes
Adapters for Easier Installation
Electrical and dashboard adapters make
installation easier. Purchase adapters from
your local Jensen retailer, electronics store or
car stereo specialty store.
Wiring Harness Adapter
For a basic installation, you can purchase a
wiring harness adapter for your car's existing
radio connectors. This makes installation easy.
Antenna Adapter (GM cars)
1990 and newer GM cars have a small
antenna connector. You will need an adapter
when installing this radio in a newer GM car.
Speaker Requirements
Only connect the CM715K to speakers rated in
the load impedance range of 4 to 8 ohms.
Speakers with a load impedance less than 4
ohms could damage the CM715K.
VOL
VOL
C
O
M
P
A
C
T
DIGITAL AUDIO
®
4 X 50W CD/CASSETTE
INSTALOC II TUNER
CDC CONTROLLERCM715K
SCN
RPT
RPT
A-B
3
MEM
CLR
6
2
RDM
4
PGM
5
1
CDC
BAND
TAPE
SEL
DISC
PWR
A.PS
CD
LOUDDISP MUTE
PROG
MO
