Jensen CM715K User Manual

4
®
CM715K
Disconnect Battery
Before you begin, always
disconnect the battery
negative terminal.
Remove Old Radio
+
–
1
3
2

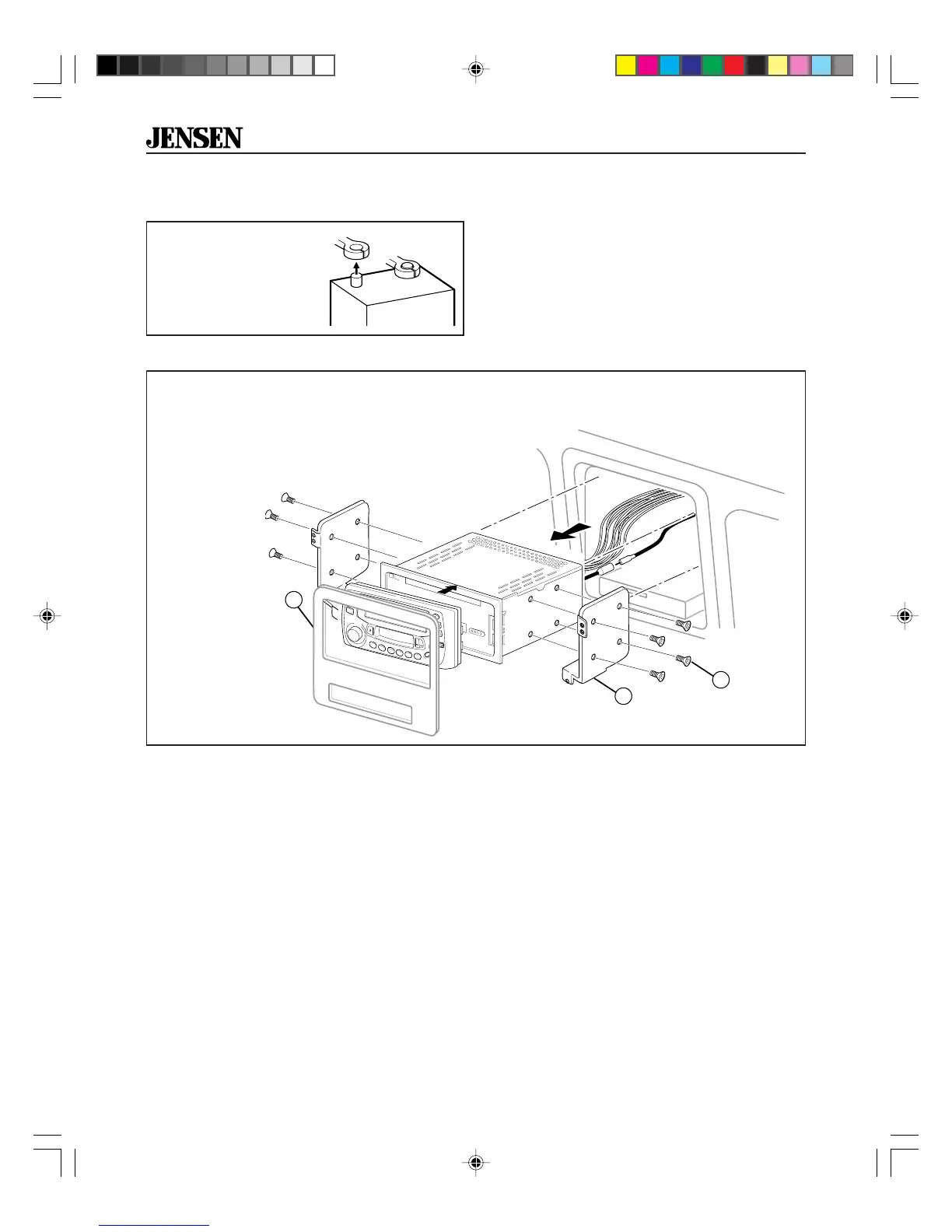

1. Remove dash trim to expose radio chassis.
2. Remove the screws from the mounting bracket and
remove radio.
3. Disconnect wiring harness.
4. Unscrew factory mounting brackets. (Most GM cars only.)
Untitled-3 4/10/99, 7:38 PM4

Jensen CM715K Specifications

CD Player

signal-to-noise ratio	>86 dB
frequency response	20 Hz - 20 kHz
channel separation	>65 dB

Tape Player

frequency response	±3 dB, 50 Hz-15 kHz
wow and flutter	0.13% JIS
signal-to-noise ratio (a-weighted)	65 dB

FM Tuner

tuning range	87.5 MHz-107.9 MHz
FM mono sensitivity	12 dBf
50 dB quieting sensitivity (stereo)	16 dBf

AM Tuner

tuning range	530 kHz-1720 kHz

Amplifier

total system power	160 watts peak
power output (front)	2 x 40W
power output (rear)	2 x 40W

General

power supply	11-16 VDC, negative ground
speaker output impedance	4-8 Ohms
fuses	fast blow AGC (2 amp and 10 amp)
