CM715K
Wiring
Important
If wiring connections are made wrong, the unit will not operate properly and it could be damaged.
Follow the installation instructions carefully, or have the installation handled by an experienced
technician.
Professional Tip

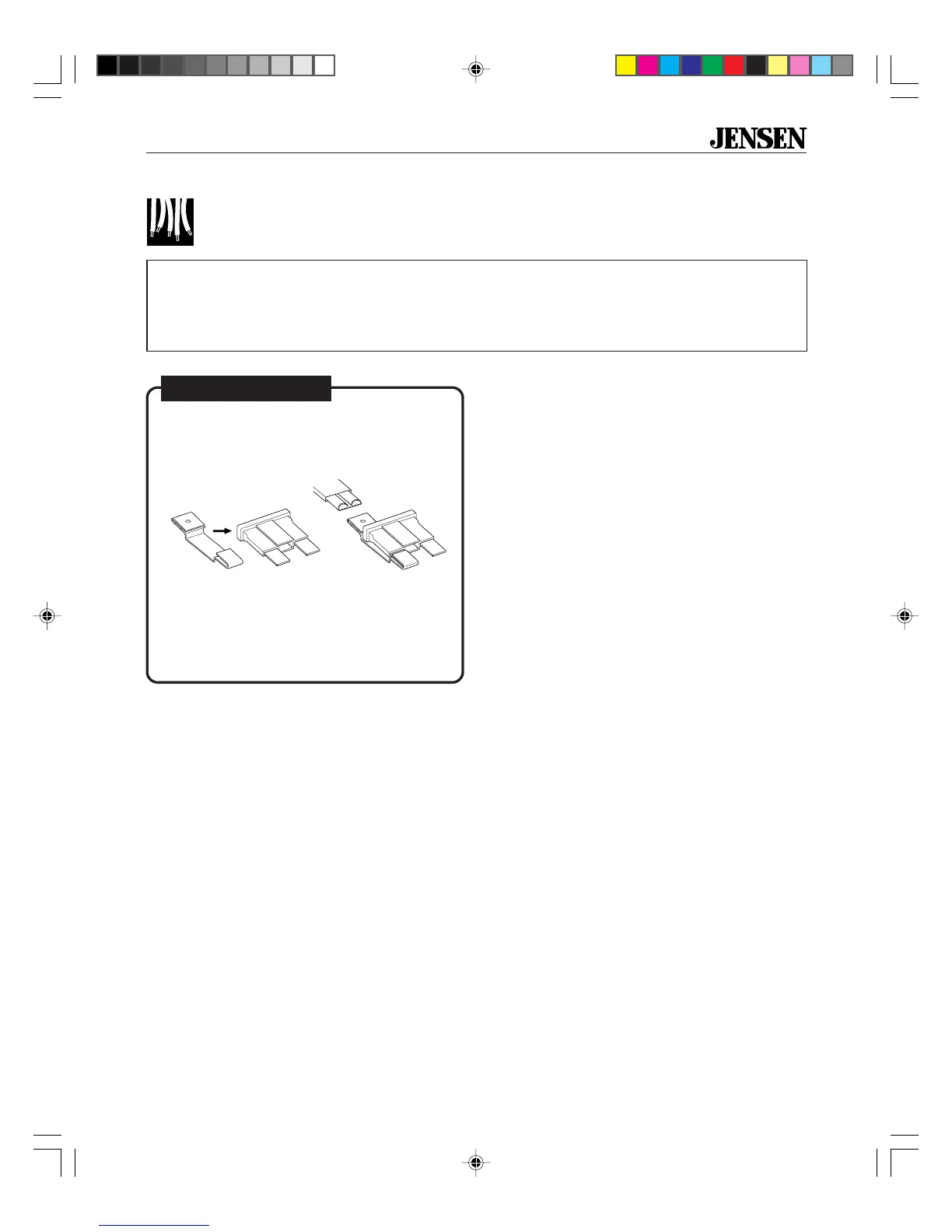

Fuse Adapters
No convenient power wire? Install a fuse
adapter having a spade connector.
Crimp on a matching connector and attach:
• Yellow wire–Fuse marked MAIN, BAT
or PWR
• Red wire–Fuse marked ACCY
(accessory), or RADIO
Fuse
Adapter
Fuse
Untitled-3 4/10/99, 7:38 PM5

Jensen CM715K Specifications

CD Player

signal-to-noise ratio	>86 dB
frequency response	20 Hz - 20 kHz
channel separation	>65 dB

Tape Player

frequency response	±3 dB, 50 Hz-15 kHz
wow and flutter	0.13% JIS
signal-to-noise ratio (a-weighted)	65 dB

FM Tuner

tuning range	87.5 MHz-107.9 MHz
FM mono sensitivity	12 dBf
50 dB quieting sensitivity (stereo)	16 dBf

AM Tuner

tuning range	530 kHz-1720 kHz

Amplifier

total system power	160 watts peak
power output (front)	2 x 40W
power output (rear)	2 x 40W

General

power supply	11-16 VDC, negative ground
speaker output impedance	4-8 Ohms
fuses	fast blow AGC (2 amp and 10 amp)
