Jensen LXA600 User Manual

9
®

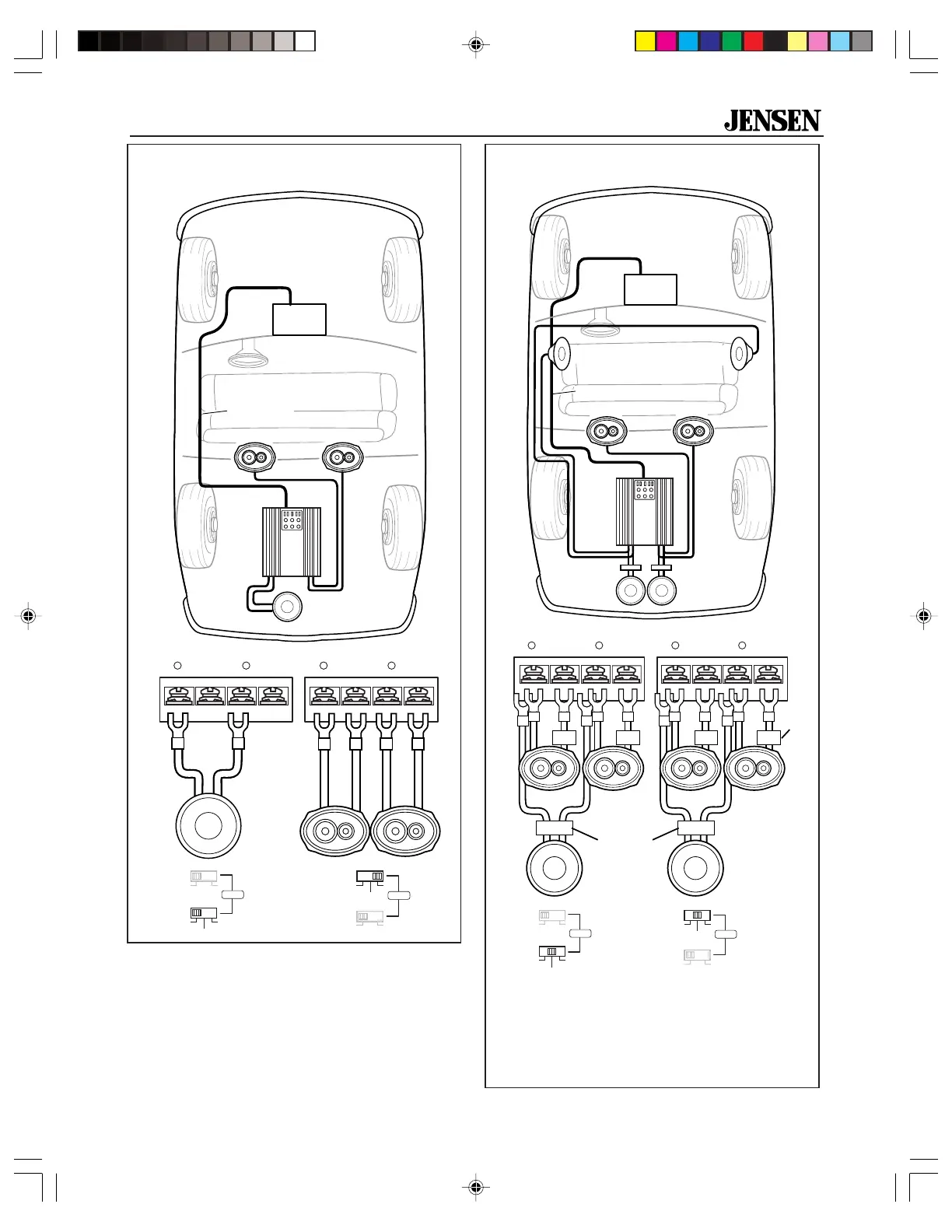

LXA600
4 Speakers + 2 Subwoofers
2 Speakers + Bridged Subwoofer
Important
When running a subwoofer and two full-range
speakers together (Tri-mode operation), high
and low pass filters must be used. Failure to
install these filters will damage your amp and/
or speakers.
A-CH B-CH C-CH D-CH
+ –
–
+
+ –
–
+
RCA Cables
4Ω 4Ω
4Ω
4Ω
minimum
4Ω
minimum
4Ω
4Ω4Ω
Low Pass
Filter
(available at
most car stereo
installation
stores)
High
Pass
Filter
OFF ON
LPF
FULL
HPF
BASS-BOOST
OFF ON
BASS-BOOST
X-OVER
LPF
FULL
HPF
X-OVER
CH A/B
CH C/D
A-CH B-CH C-CH D-CH
+ –
–
+
+ –
–
+
RCA Cables
2/4Ω
4Ω
minimum
4Ω
2/4Ω
OFF ON
LPF
FULL
HPF
BASS-BOOST
OFF ON
BASS-BOOST
X-OVER
LPF
FULL
HPF
X-OVER
CH A/B
CH C/D
6022Eamp.p65 02/08/01, 4:27 PM9

Jensen LXA600 Specifications

Power Output

power output at 4 ohms	75 Watts per channel RMS
power output at 2 ohms	100 Watts per channel RMS
power output bridged at 4 ohms	200 Watts per channel RMS

Audio Performance

frequency response	20 Hz-20 kHz ± 3 dB
signal to noise ratio	>100 dB
channel separation	>65 dB at 1 kHz

Impedance

speaker impedance	2-8 ohms
input impedance	20 k ohms
crossover frequencies	40-240 Hz

Power Requirements

power requirement	14.4 VDC (10.8-15.6 VDC allowable)
fuse requirements	two 25 amp blade-type fuses

Weight and Dimensions

dimensions	3" x 11.125" x 13" (76mm x 283mm x 330mm)
