Jensen MP1516 - Securing the Unit and Rear Mount; Securing the Mounting Sleeve; Connecting Wires and Radio Insertion; Rear Support Installation

11
MP1516

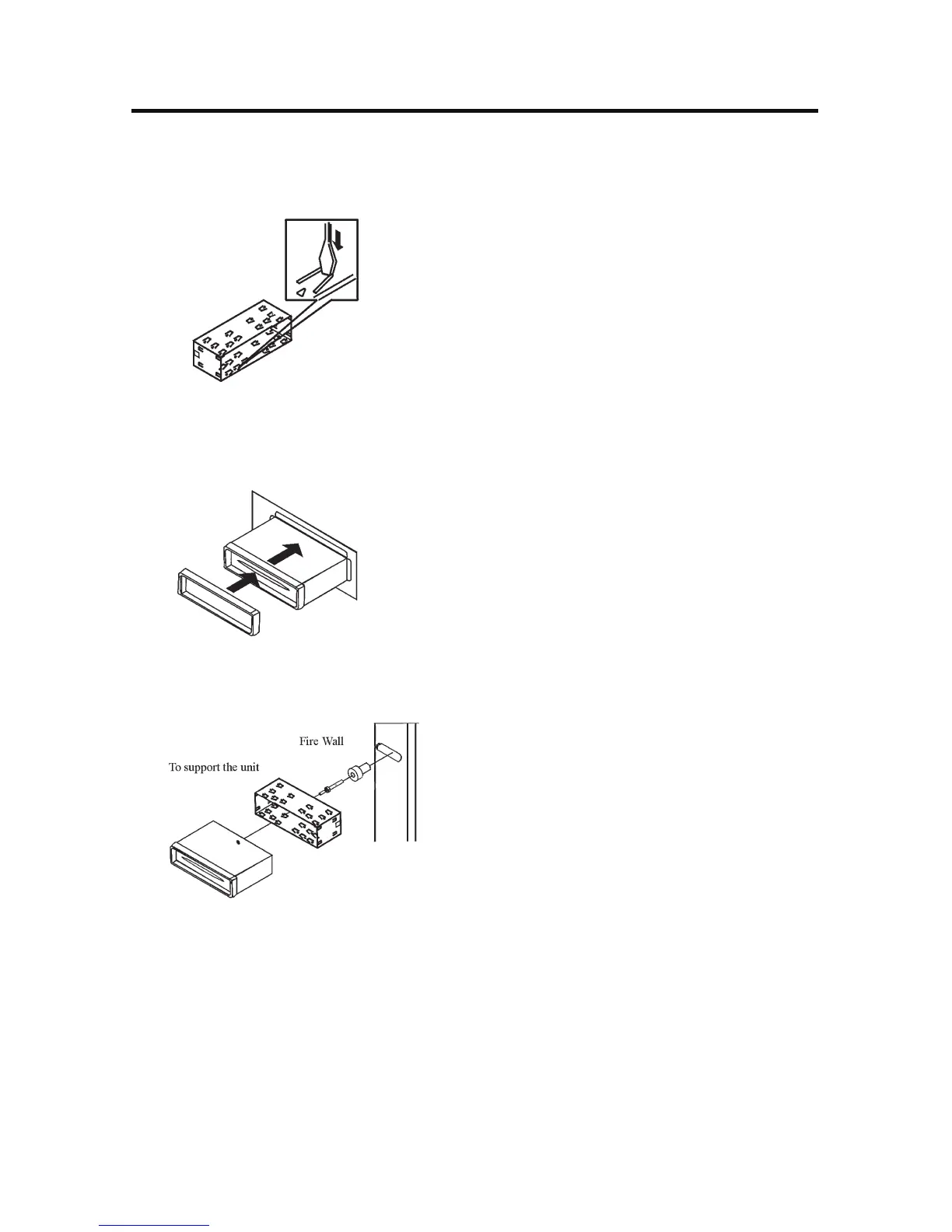

2. Bend the tabs on the mounting sleeve to keep the mounting sleeve rmly in
place.
3. Attach the wires from the unit to existing wires. See the wiring connections
diagram. Insert the radio into the dashboard. Then apply the trim frame to the
outside of radio.
4. Support the radio using the supplied rear mounting bolt and steel bar. See the
parts list.
DIN Rear Mount (Method B)
This method of installation uses the screw holes at the sides of the unit and the
holes of the existing vehicle mounting bracket. This is only intended as a general
guide; contact the vehicle’s manufacturer for specic instructions.
NOTE: Outer trim frame, hook, and mounting sleeve are not used for this
installation.
