14
Handling Precautions
1. Do not drop the faceplate.
2. Do not put pressure on the display or control buttons when detaching or re-
installing the faceplate.
3. Do not touch the contacts on the faceplate or on the main unit body. It may
result in poor electrical contact.
4. If any dirt or foreign substances adhere to the contacts, they can be removed
with a clean and dry cloth.
5. Do not expose the faceplate to high temperatures or direct sunlight.
6. Keep away any volatile agents (e.g. benzene, thinner, or insecticides) from
touching the surface of the faceplate.
7. Do not attempt to disassemble the faceplate.

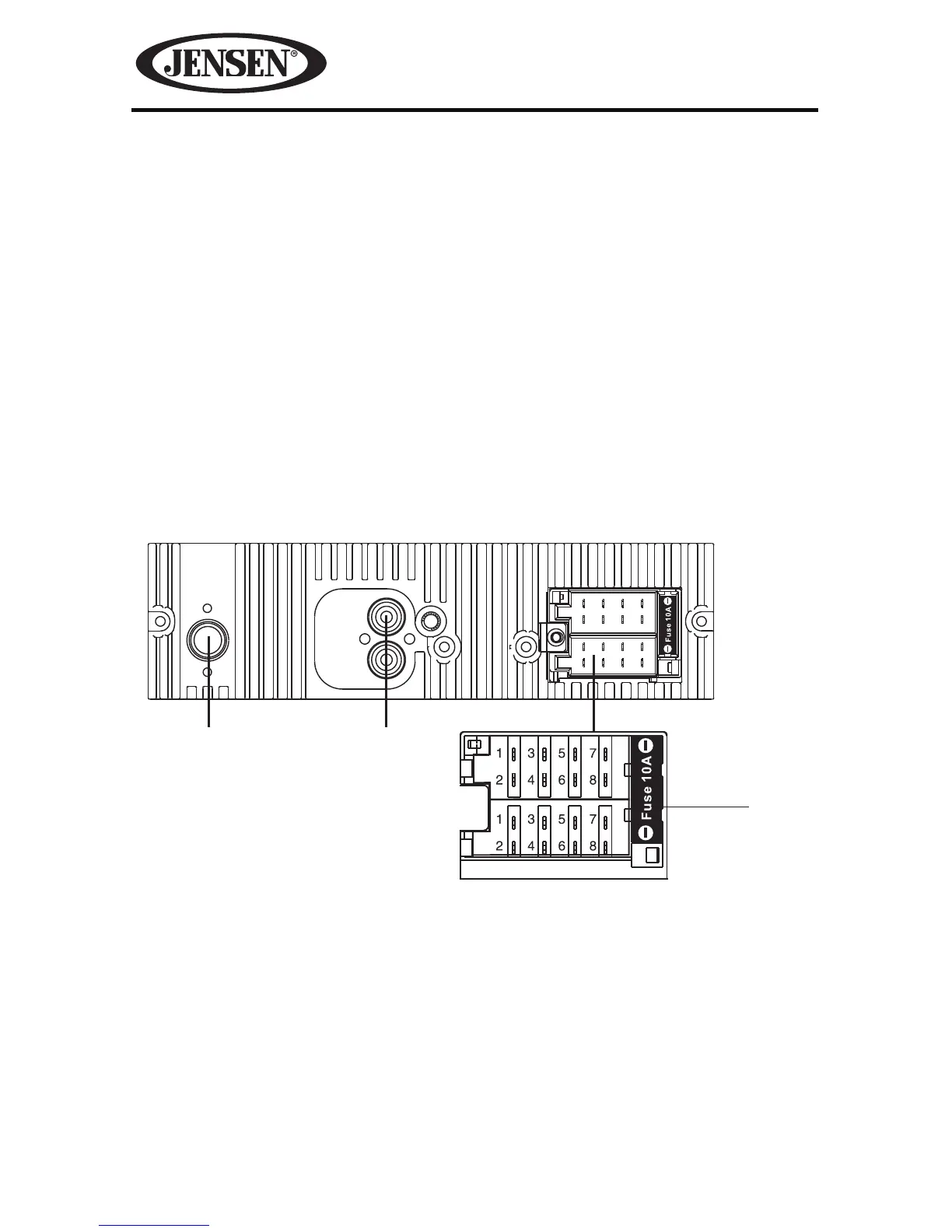

WIRING CONNECTIONS
RCA OUT
left=white
right=red
Antenna
socket
ISO-connector
Fuse 10 A
Connector A
1. Rear right speaker (+) /Blue
2. Rear right speaker (-) /Blue-White
3. Front right speaker (+) / Grey
4. Front right speaker (-) / Grey-White
5. Front left speaker (+) / Green
6. Front left speaker (-) / Green-White
7. Rear left speaker (+) / Brown
8. Rear left speaker (-) / Brown-White
Connector B
1. -
2. -
3. -
4. Battery 12V (+) / Yellow
5. Antenna Power / Blue
6. Panel Light / White
7. ACC+ / Red
8. Ground / Black
A
B
