EN - 6 BA-0006 • 2020-02-08
3 Product description SynMag 2600/3100/3600/4100/5100
Production according to Euronorms EN 60974-1 and EN 60974-10

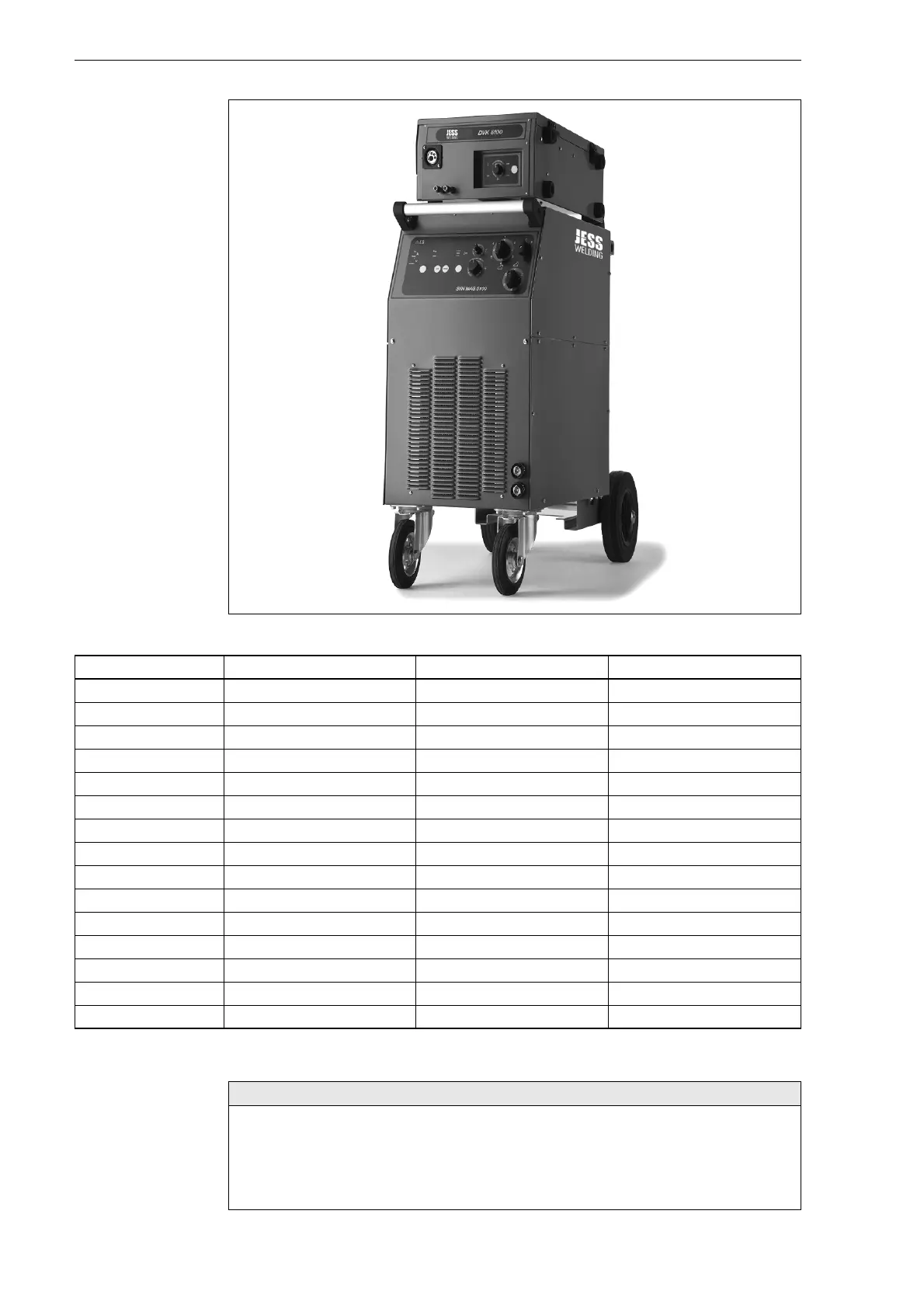

Fig. 2 SynMag 3600/4100/5100 technical data
Tab. 2 SynMag 3600/4100/5100 technical data
Power source SynMag 3600 SynMag 4100 SynMag 5100
Mains voltage 50 Hz 400 V AC 400 V AC 400 V AC
Fuse 20 A, slow-blow 25 A, slow-blow 32 A, slow-blow
Primary current max./eff. 23 A/15 A 28 A/18 A 45 A/29 A
Power supply cable 4 × 4 mm² 4 × 4 mm² 4 × 4 mm²
Mains plug 32 A 32 A 32 A
Idle voltage 18–45 V 18–48 V 20–64 V
Welding range 30–350 A 40–400 A 50–500 A
100% duty cycle 220 A 240 A 280 A
60% duty cycle 280 A 300 A 360 A
30% duty cycle 350 A 400 A 500 A
Protection type IP 23 IP 23 IP 23
Type of coolingAFAFAF
Dimensions (L × W × H) 980 × 430 × 930 mm 980 × 430 × 930 mm 980 × 430 × 930 mm
Weight 160 kg 180 kg 190 kg
Noise level 70 dB(A) 70 dB(A) 70 dB(A)
NOTICE
Generator operation
• The generator must produce at least 30% more power than the maximum power of the machine.
Example: 13 kVA (machine) + 30% = 17 kVA. A 17 kVA generator must be used for this device.
• The use of a smaller generator is prohibited as this would damage both the JÄCKLE & ESS welding
device and the generator.
