11 Appendix SynMag 2600/3100/3600/4100/5100
11.4 Circuit diagram
11.4.1 SynMag 2600 circuit diagram

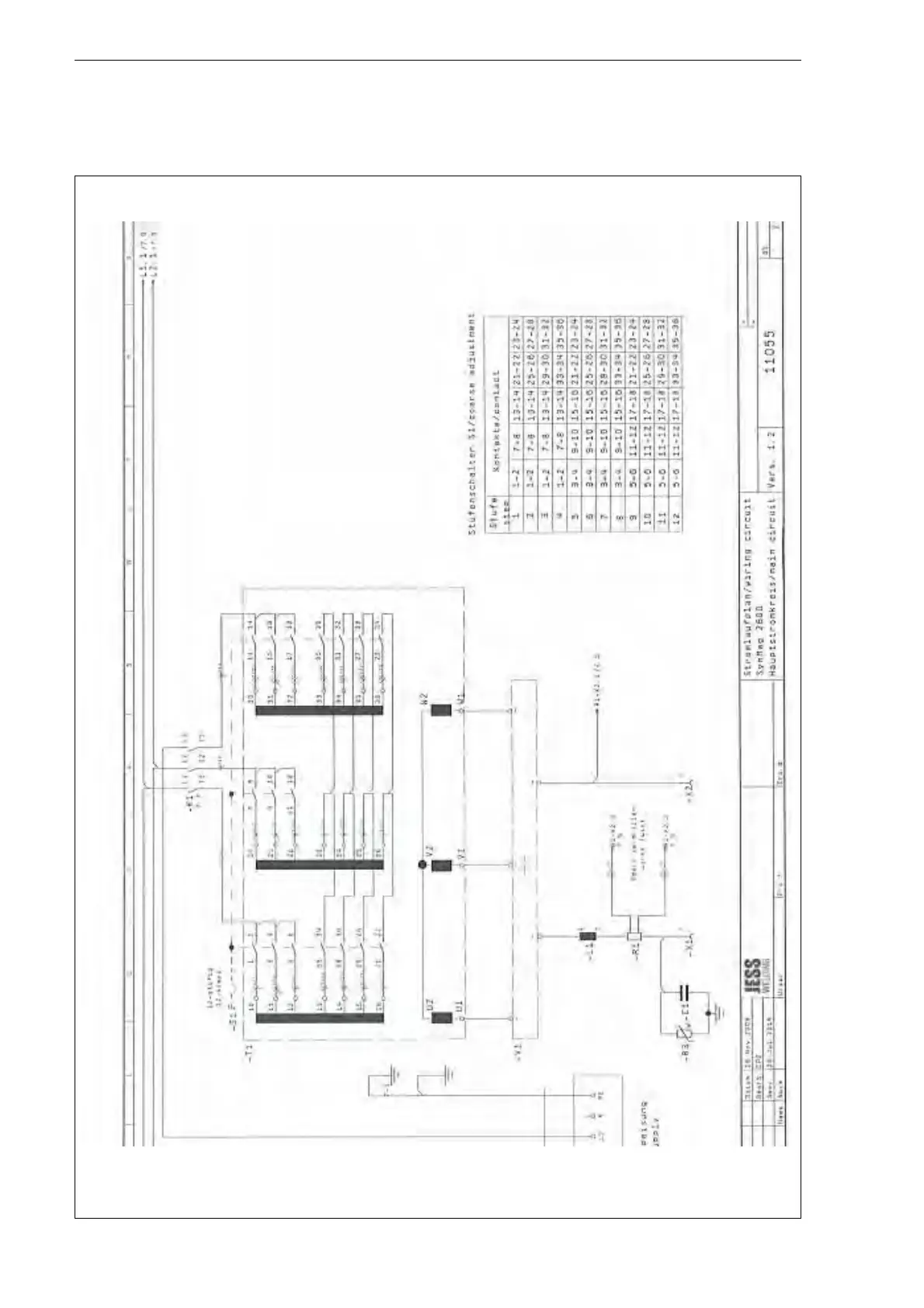

Fig. 20 SynMag 2600 circuit diagram, part 1
