11.1 SynMag 2600/3100 spare parts

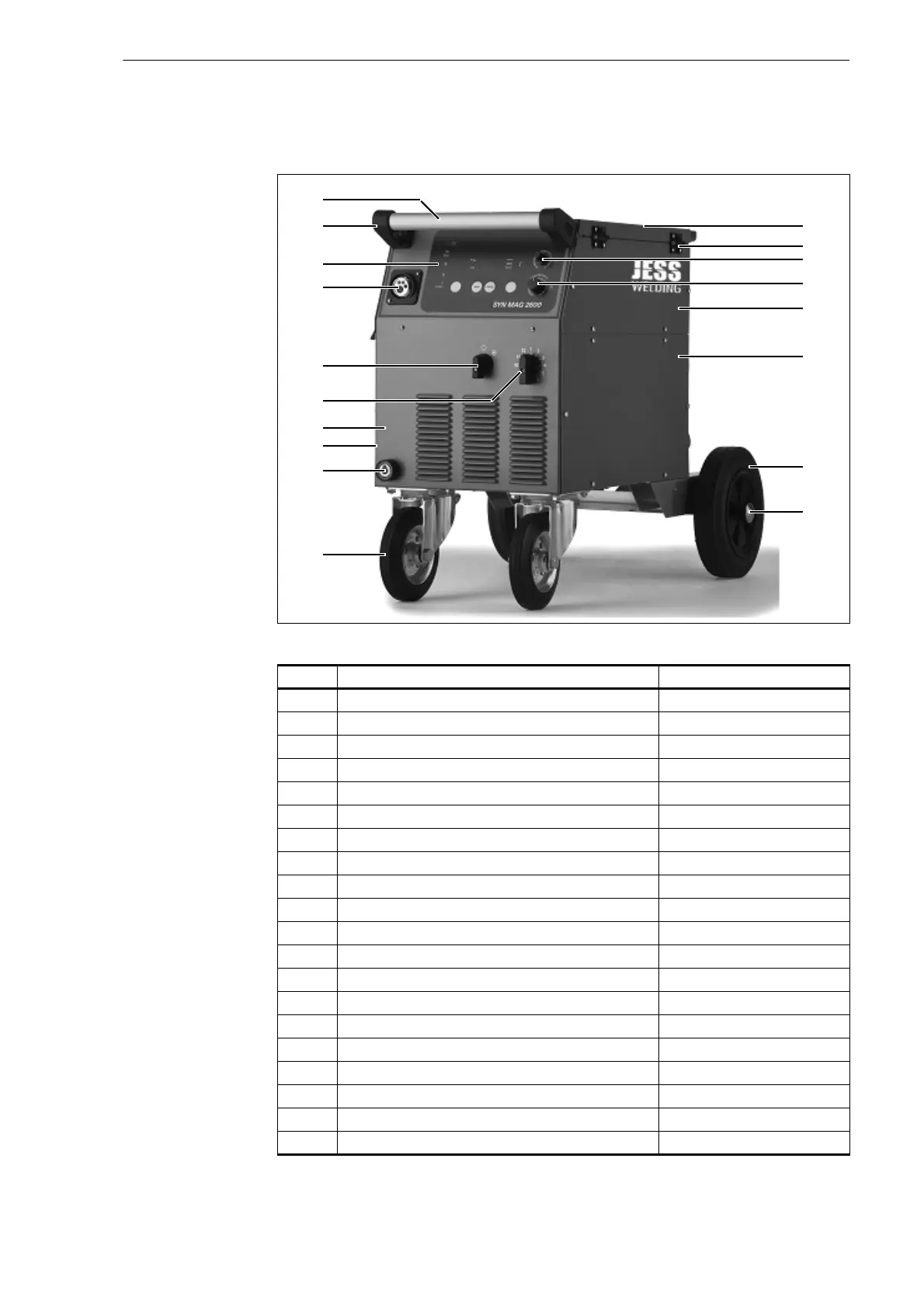

Fig. 14 SynMag 2600/3100 front view
Tab. 11
SynMag 2600/3100 spare parts – external
Pos. Name Item no.
A
Fold-away hood 715.866.005
B
Adjustable hinge 303.032.005
C
Knob E770410
Cover E770411
D
Knob E750401
Cover E750402
E
Top right side plate 715.866.004
F
Bottom right side plate 715.866.003
G
Black rubber wheel E590018
H
20 mm Starlock cap 301.020.012
I
Guide castor 301.160.001
J
EURO central connector E866825
K
Bottom left side plate 715.866.003
L
Front plate 715.866.002
M
Voltage selector switch E880531
N
Main switch E950422
O
EURO central connector E866825
P
Front panel E231370
Q
Handle bracket E950651
R
Handle tube E866012
A
B
E
F
G
H
D
R
Q
P
O
N
M
L
J
I
K
C
