JESS WELDING SynMag 2600 - Page 68

EN - 22 BA-0006 • 2020-02-08
11 Appendix SynMag 2600/3100/3600/4100/5100

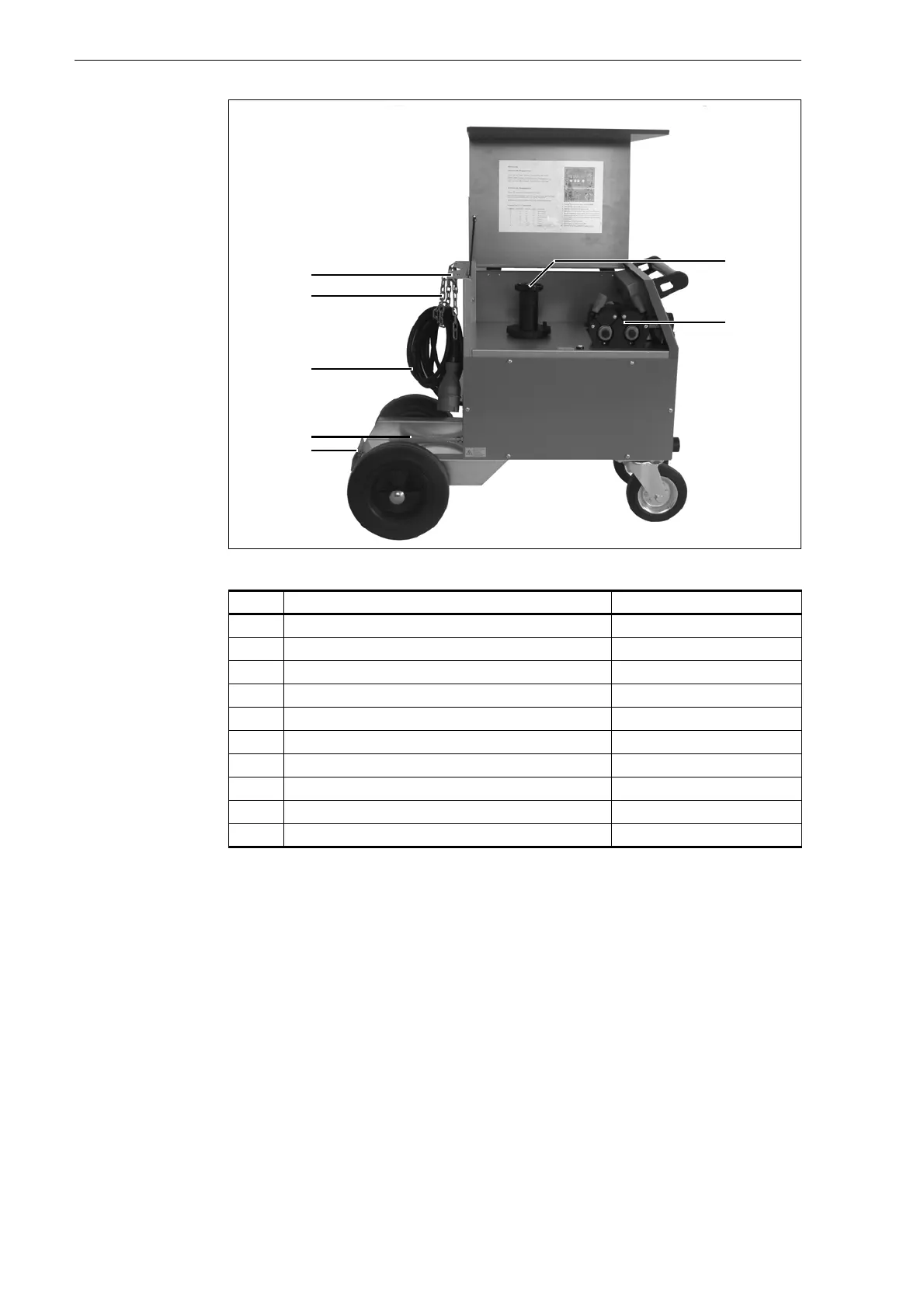

Fig. 15 SynMag 2600/3100 side view
Tab. 12 SynMag 2600/3100 spare parts – internal
Pos. Name Item no.
A
Spool mandrel E890706
B
WF unit E881810
C
Bottle tray E866009
D
PVC hose 5 × 1.5 356.005.007
E
Power cable 4 × 2.5/5 m/16 A 704.025.013
F
24-link chain 101.097.010
G
Rear plate 715.866.006
N/a Welding transformer without switch E880528
N/a Fan 230 V, 20 W E480012
N/a Solenoid valve 42/48 V, 50/60 Hz, 24 V DC E880251
A
B
C
D
E
F
G
