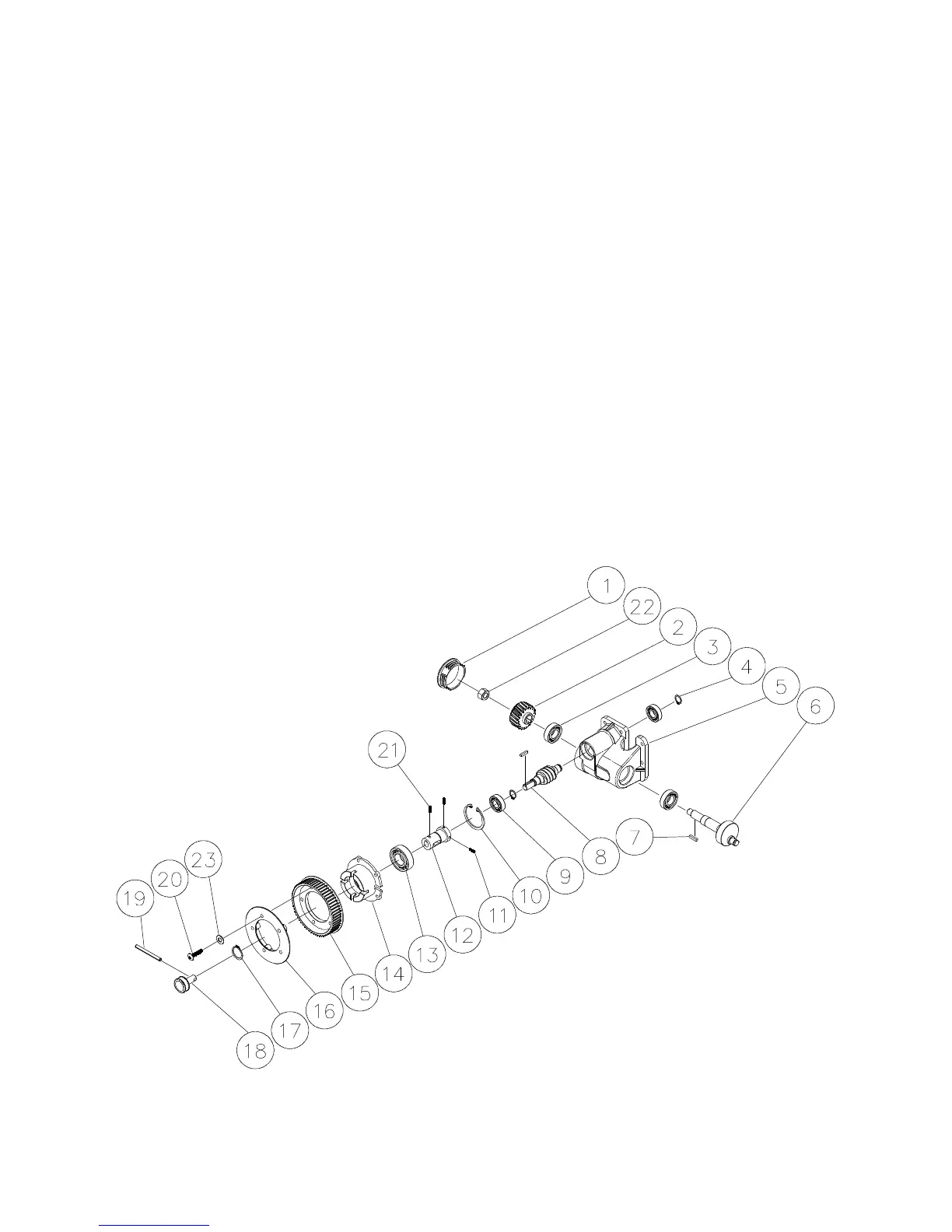

Gearbox Assembly
Index No. Part No. Description Size Qty
.................. 2244OSC-GBA.......... Gearbox Assembly .................................................. ...................................... 1
1 ................ 2244OSC-201 ........... Rubber Cover .......................................................... ...................................... 1
2 ................ 2244OSC-202 ........... Gear ......................................................................... ...................................... 1
3 ................ BB-6002ZZ ................ Ball Bearing ............................................................. 6002ZZ.......................... 2
4 ................ 2244OSC-204 ........... Retaining Ring ......................................................... ...................................... 2
5 ................ 2244OSC-205 ........... Gearbox ................................................................... ...................................... 1
6 ................ 2244OSC-206 ........... Eccentric Shaft......................................................... ...................................... 1
7 ................ 2244OSC-207 ........... Key........................................................................... 4x4x18 .......................... 2
8 ................ 2244OSC-208 ........... Worm ....................................................................... ...................................... 1
9 ................ BB-6001ZZ ................ Ball Bearing ............................................................. 6001ZZ.......................... 2
10 .............. 2244OSC-210 ........... Retaining Ring ......................................................... ...................................... 1
11 .............. 2244OSC-211 ........... Set Screw ................................................................ #10-24x1/4 .................... 2
12 .............. 2244OSC-212 ........... Clutch Bushing......................................................... ...................................... 1
13 .............. BB-6004ZZ ................ Ball Bearing ............................................................. 6004ZZ.......................... 1
14 .............. 2244OSC-214 ........... Pulley Base .............................................................. ...................................... 1
15 .............. 2244OSC-215 ........... Pulley ....................................................................... ...................................... 1
16 .............. 2244OSC-216 ........... Pulley Shield ............................................................ ...................................... 1
17 .............. 2244OSC-217 ........... Retaining Ring ......................................................... ...................................... 1
18 .............. 2244OSC-218 ........... Clutch Knob ............................................................. ...................................... 1
19 .............. 2244OSC-219 ........... Pin............................................................................ ...................................... 1
20 .............. 2244OSC-220 ........... Screw ....................................................................... #10-24x7/8 .................... 5
21 .............. 2244OSC-221 ........... Set Screw w/Steel Ball............................................. M4x9 ............................. 1
22 .............. TS-0640091 .............. Nylon Insert Lock Nut .............................................. 3/8-16 ............................ 1
23 .............. TS-0680011 .............. Flat Washer ............................................................. 3/16 ............................... 5
To Next Page
