9
Assembly
Stand Assembly
1. Position two stand sides (F
1
, F
2
) on the
ground with the base down, about 3 feet
apart with the openings toward the center.
2. Mount the bottom plate (E) to the stand
sides with four each 5/16" hex cap screws
(L
1
) and 5/16" flat washers (P
1
). Hand-
tighten only at this time.
3. Secure the left side of the rear plate (G) to
the left stand side (F
1
) with two each 5/16"
hex cap screws (L
2
) and 5/16" flat washers
(P
2
). Hand-tighten only.
PPPPP
4. Secure the right side of the rear plate (G) to
the right stand side (F
2
) in the same manner
as above. Hand-tighten only.
5. Secure the front plate (H) to the left and right
stand sides (F
1
, F
2
) in the same manner as
above with four each 5/16" hex cap screws
(L) and 5/16" flat washers (P). Hand-tighten
only.
F
1
L
1
P
1
E
P
2
L
2
F
2
H
Base
Base
G

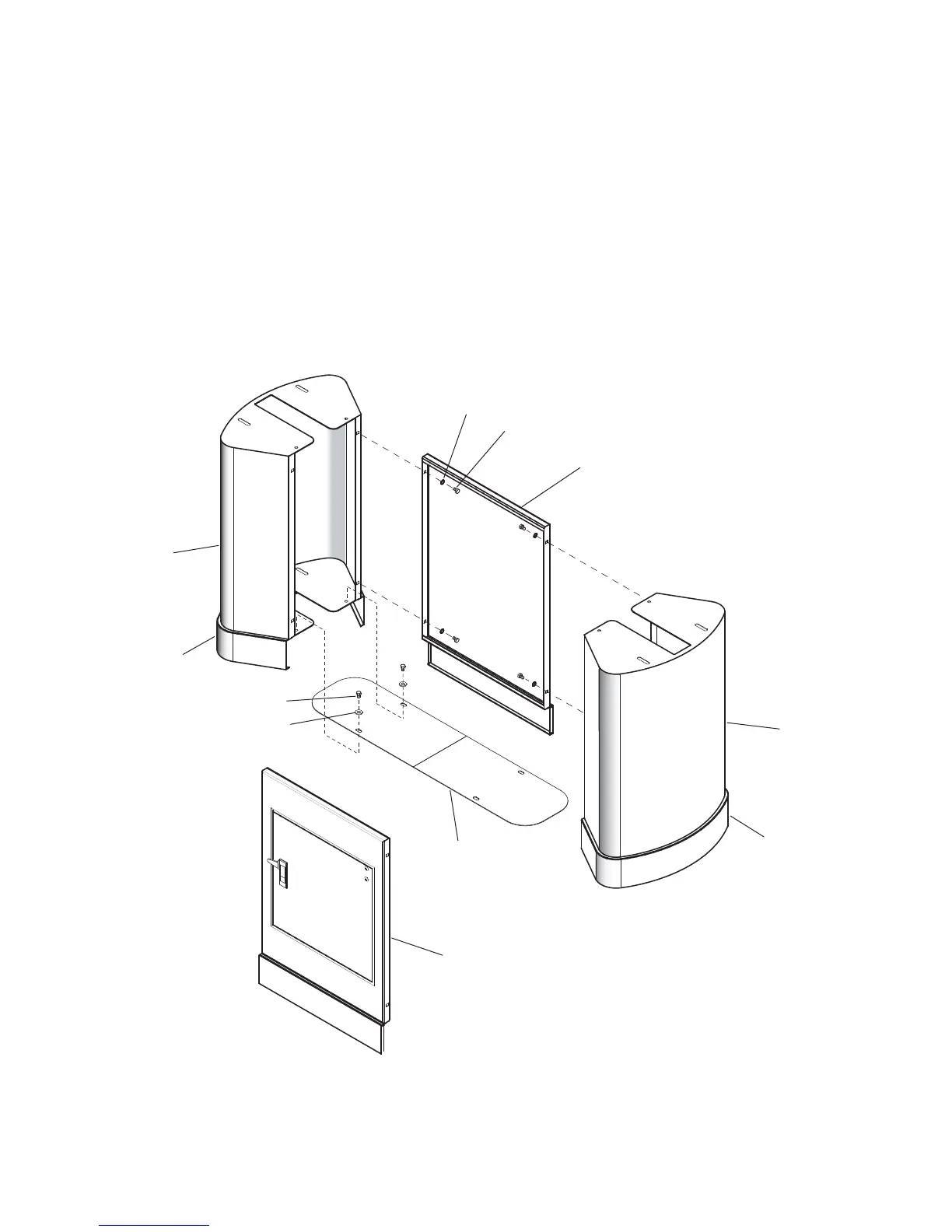

Figure 4
To Next Page
