8
Unpacking
Open shipping container and check for shipping
damage. Report any damage immediately to
your distributor and shipping agent. Do not
discard any shipping material until the Drum
Sander is assembled and running properly.
Compare the contents of your container with the
following parts list to make sure all parts are
intact. Missing parts, if any, should be reported
to your distributor. Read the instruction manual
thoroughly for assembly, maintenance and
safety instructions.
Note: The letter designators identifying parts on
this page are used throughout the Assembly
section of this manual for reference conven-
ience.

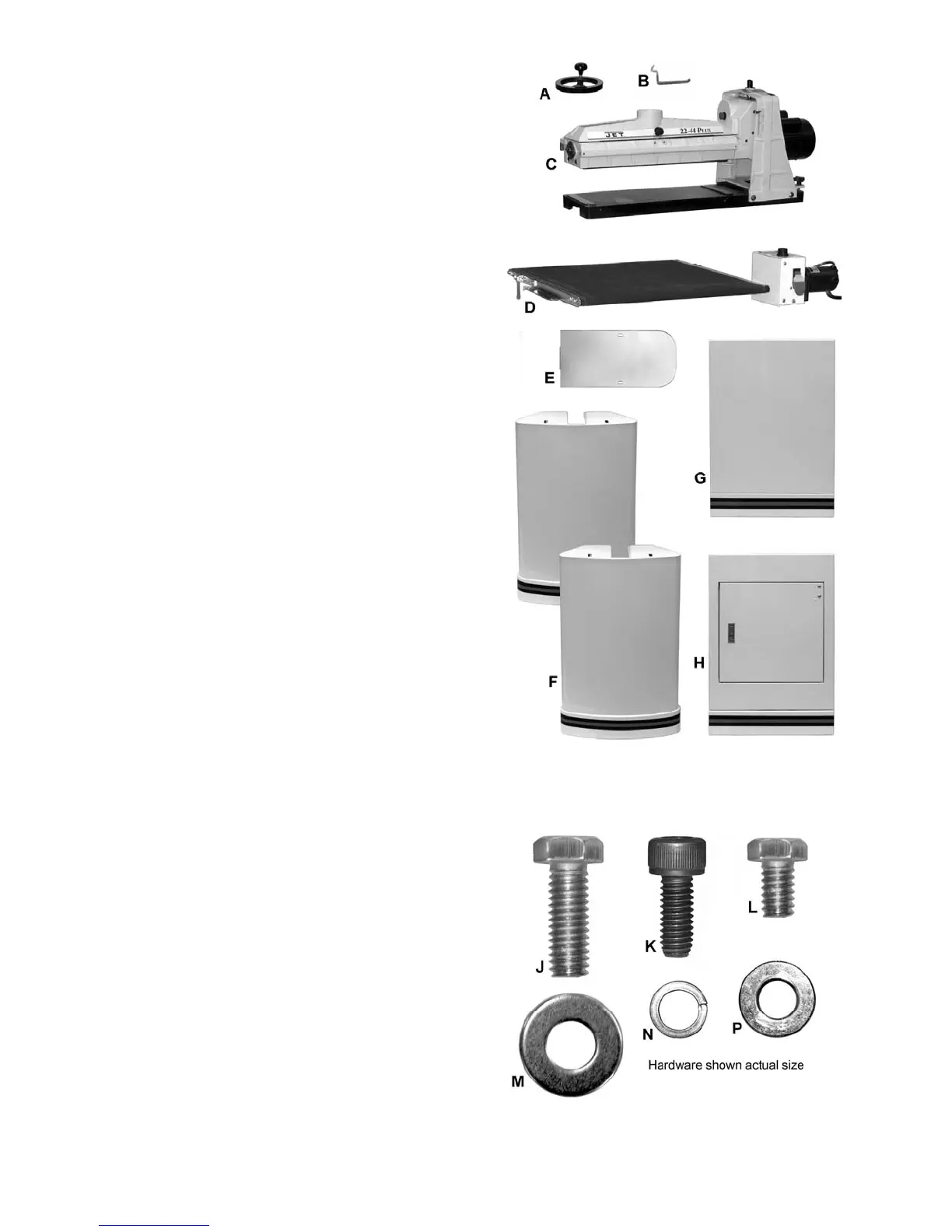

Shipping Contents
Main Container Contents
Contents shown in Figure 1
1 Handwheel (A)
1 TufTool (B)
1 Drum Head (C)
1 Conveyor Table Assembly (D)
1 Bottom Plate (E)
2 Stand Side (F)
1 Rear Plate (G)
1 Front Plate (H)
1 Hardware Bag (see below for contents)
1 Owner's Manual (not shown)
Hardware Bag Contents
Note: The letter designators identifying parts on
this page are used throughout this manual for
reference convenience.
04 Hex Cap Screw, 3/8”x1” (J)
04 Socket Head Cap Screw, 5/16"x3/4” (K)
12 Hex Cap Screw, 5/16”x1/2” (L)
04 Flat Washer, 3/8" (M)
04 Lock Washer, 5/16” (N)
16 Flat Washer, 5/16" (P)
03 Hex Wrenches, 1/8", 4mm and 6mm (not
shown
Figure 2 – Main Container Contents
Figure 3 – Hardware Bag Contents
