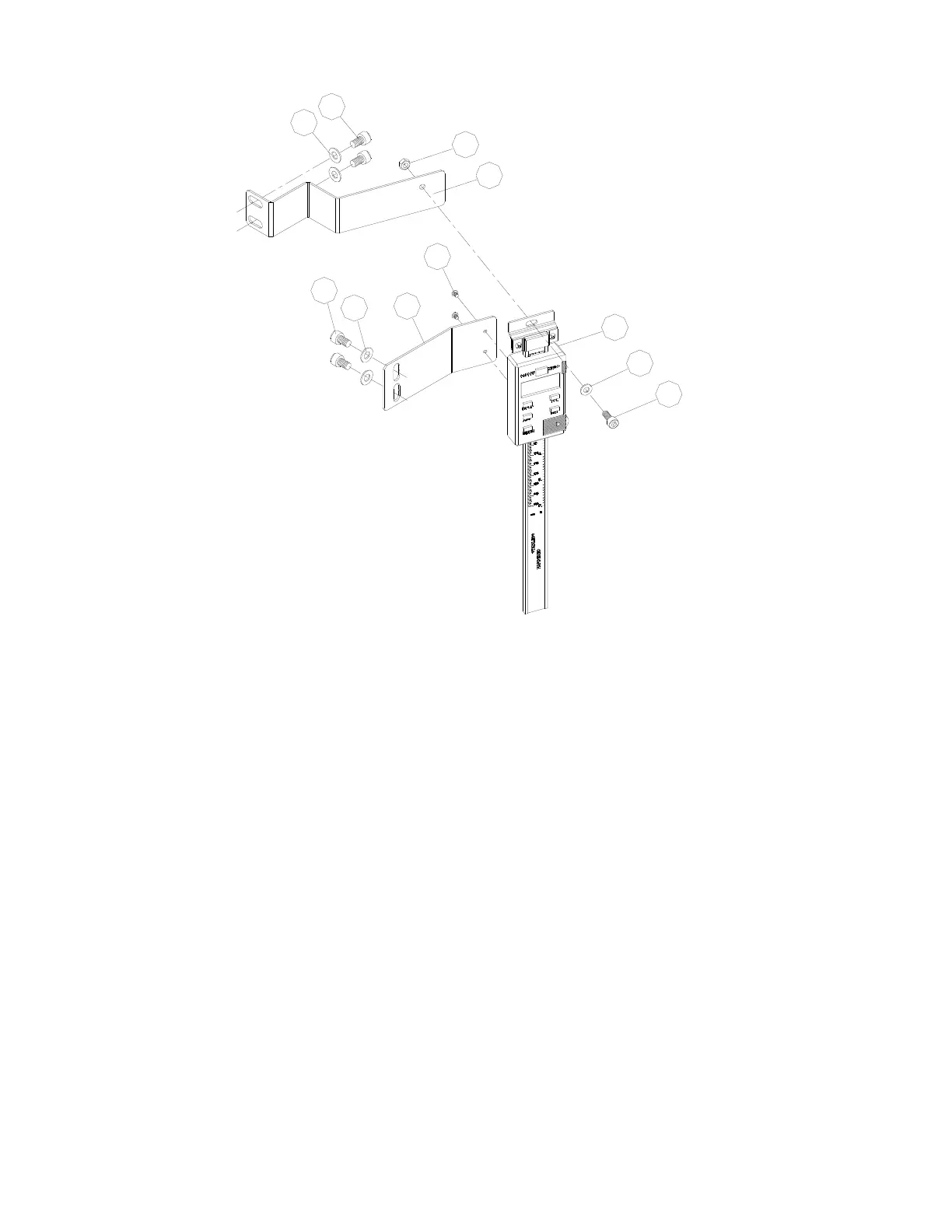

15.2.1 (OPTIONAL) Digital Readout for JWDS-2244/-2550 – Exploded View
15.2.2 (OPTIONAL) Digital Readout for JWDS-2244/-2550 – Parts List
Index No Part No Description Size Qty
.................. 723552 ...................... Drum Sander DRO Assembly (includes #1 thru 9) .. ........................................
1 ................ TS-1503021 .............. Socket Head Cap Screw ......................................... M6-1.0P x 10L .............. 4
2 ................ TS-1550041 .............. Flat Washer ............................................................. 6.5 x 13 x 1T ................. 4
3 ................ TS-1540031 .............. Hex Nut .................................................................... M5-0.8P ........................ 1
4 ................ JWDS2244-504 ......... Upper Bracket .......................................................... ...................................... 1
5 ................ JWDS2244-505 ......... Lower Bracket .......................................................... ...................................... 1
6 ................ JWDS2244-506 ......... Phillips Round Hd Machine Screw .......................... M3-0.5P x 5L ................ 2
7 ................ JWDS2244-507 ......... DRO ......................................................................... ...................................... 1
8 ................ TS-1550031 .............. Flat Washer ............................................................. 5.1 x 10 x 1T ................. 1
9 ................ TS-1502031 .............. Socket Head Cap Screw ......................................... M5-0.8P x 12L .............. 1
1
5
1
4
7
8
9
2
3
2
6
