36

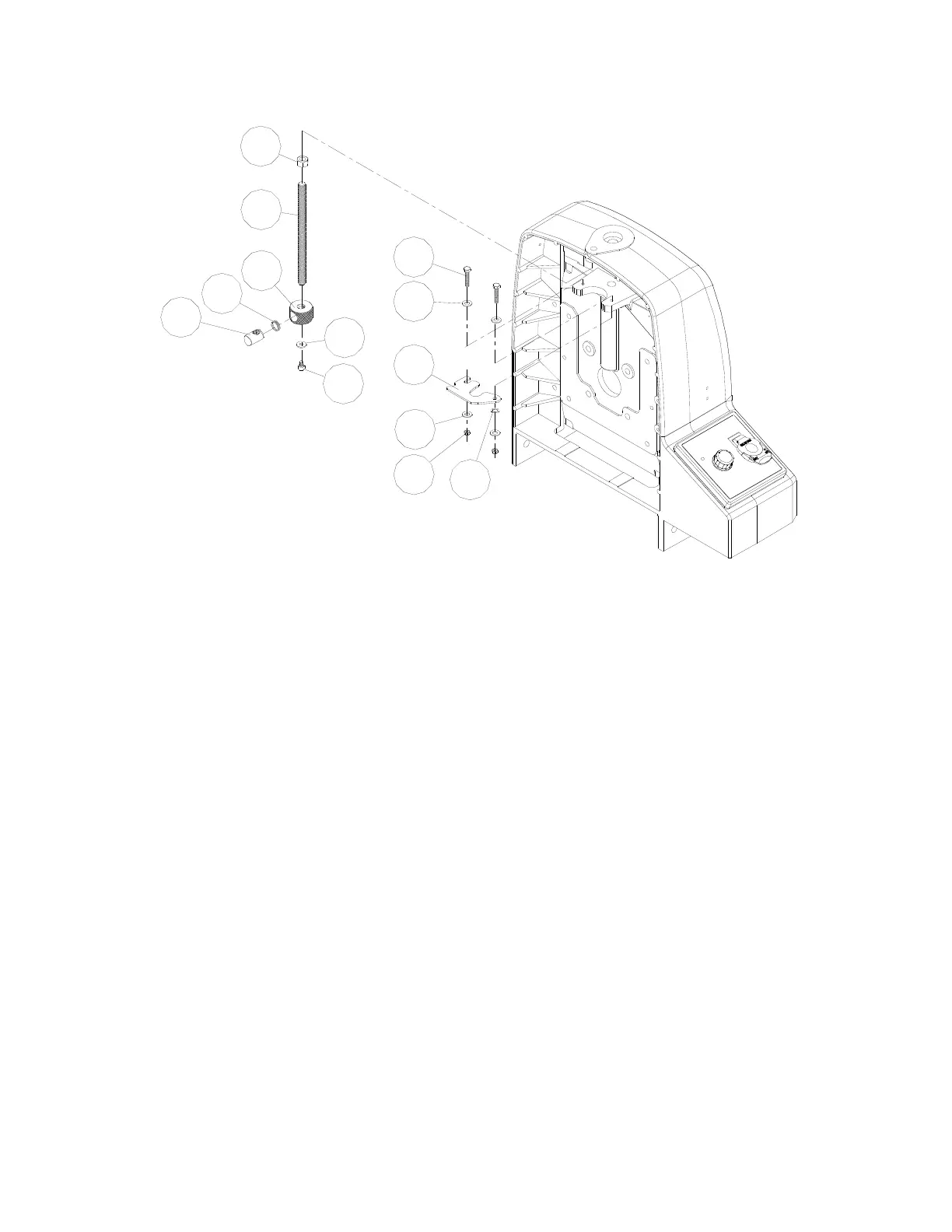

15.6.1 Depth Stop Assembly for JWDS-2244/-2550 * – Exploded View
15.6.2 Depth Stop Assembly for JWDS-2244/-2550 * – Parts List
Index No Part No Description Size Qty
.................. 723553 ...................... Depth Stop Assembly (#1 thru 12) .......................... ........................................
1 ................ JWDS2244-601 ......... Special Nut .............................................................. ...................................... 1
2 ................ JWDS2244-602 ......... Threaded Post ......................................................... ...................................... 1
3 ................ JWDS2244-603 ......... Stop Nut ................................................................... ...................................... 1
4 ................ JWDS2244-604 ......... Compression Spring ................................................ ...................................... 1
5 ................ JWDS2244-605 ......... Half Nut .................................................................... ...................................... 1
6 ................ TS-1550031 .............. Flat Washer ............................................................. 5.2 x 16 x 1.4T .............. 1
7 ................ TS-1502031 .............. Socket Head Cap Screw ......................................... M5-0.8P x 12L .............. 1
8 ................ TS-1482051 .............. Hex Cap Screw ........................................................ M6-1.0P x 25L .............. 2
9 ................ TS-1550041 .............. Flat Washer ............................................................. 6.4 x 16 x 1.6T .............. 4
10 .............. JWDS2244-610 ......... Stop Plate ................................................................ ...................................... 1
11 .............. TS-1541021 .............. Nylon Lock Hex Nut ................................................. M6-1.0P ........................ 2
12 .............. JWDS2244-612 ......... Wave Washer .......................................................... WW-6 ............................ 1
* NOTE: This assembly is optional for JWDS-2244, provided standard with JWDS-2550.
10
8
9
1
2
5
4
3
6
7
11
9
12
