Read and understand the entire
contents of this manual before attempting set-
up or operation! Failure to comply may cause
serious injury.
NOTE: Figures in this manual may show Sander
with stand, extension tables and/or depth stop
assembly. These are optional accessories
depending upon your model, and are purchased
separately.
6.0 Setup and assembly
Open boxes and check for shipping damage. Report
any damage immediately to your distributor and
shipping agent. Do not discard any shipping
material until the Drum Sander is assembled and
running properly.
Compare the contents of your boxes with the
following parts list to make sure all parts are intact.
Any missing parts should be reported to your
distributor. Read this instruction manual thoroughly
for assembly, maintenance and safety instructions.
6.1 Shipping contents
Drum Sander (Figure 6-1)
1 Sander with conveyor table – A
1 Height adjust handle – B
1 Hose hanger – C
2 Socket hd cap screw M6x12 – C
1
2 Flat washer 6mm – C
2
1 Operating Instructions and Parts Manual
1 Product registration card
OPTIONAL Infeed/Outfeed Tables (Figure 6-2)
2 Infeed/outfeed tables – D
1 Rear (short) fixed bracket – E
1 Front (long) fixed bracket – F
2 Left folding table brackets – G
2 Right folding table brackets – H
1 Hardware package, includes:
4 Locking handles – HP1
4 Disc washers – HP2
4 Oilite washers – HP3
16 Socket hd cap screws M8x16 – HP4
16 Flat washers M8 – HP5
4 Socket hd cap screws M6x20 – HP6
4 Eccentric cams – HP7
4 Flat washers M6 – HP8
6.2 Tools required for assembly
5mm, 6mm hex (Allen) wrenches
Straight edge (such as straight steel bar or carefully
jointed board)
Additional tools may be required depending upon
other accessories purchased.

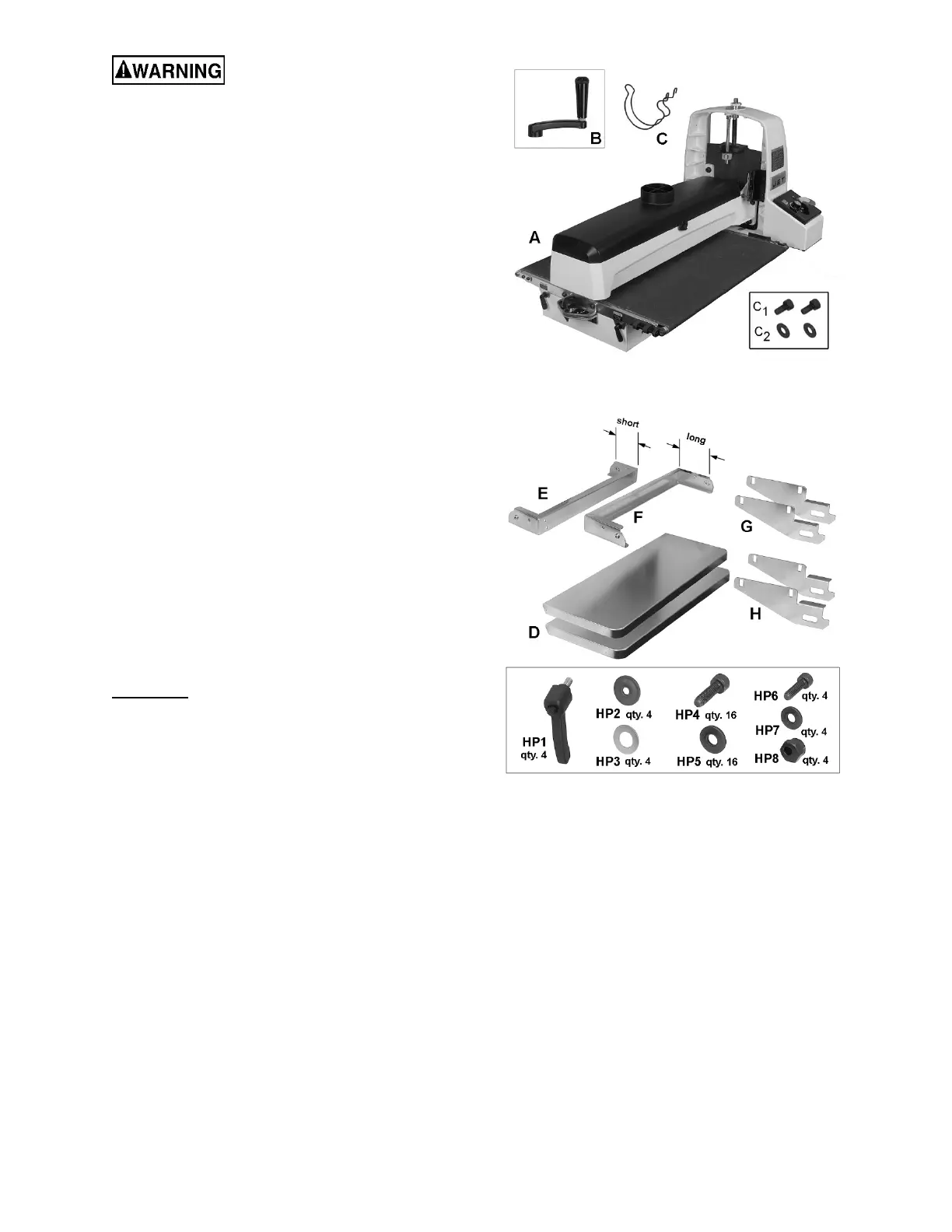

Figure 6-1: Sander contents (JWDS-2550 shown)
Figure 6-2: Infeed/Outfeed Tables (OPTIONAL)
