Jet 723540B - OPTIONAL) Closed Stand Assembly for JWDS-2550 - Exploded View; OPTIONAL) Closed Stand Assembly for JWDS-2550 - Parts List

37

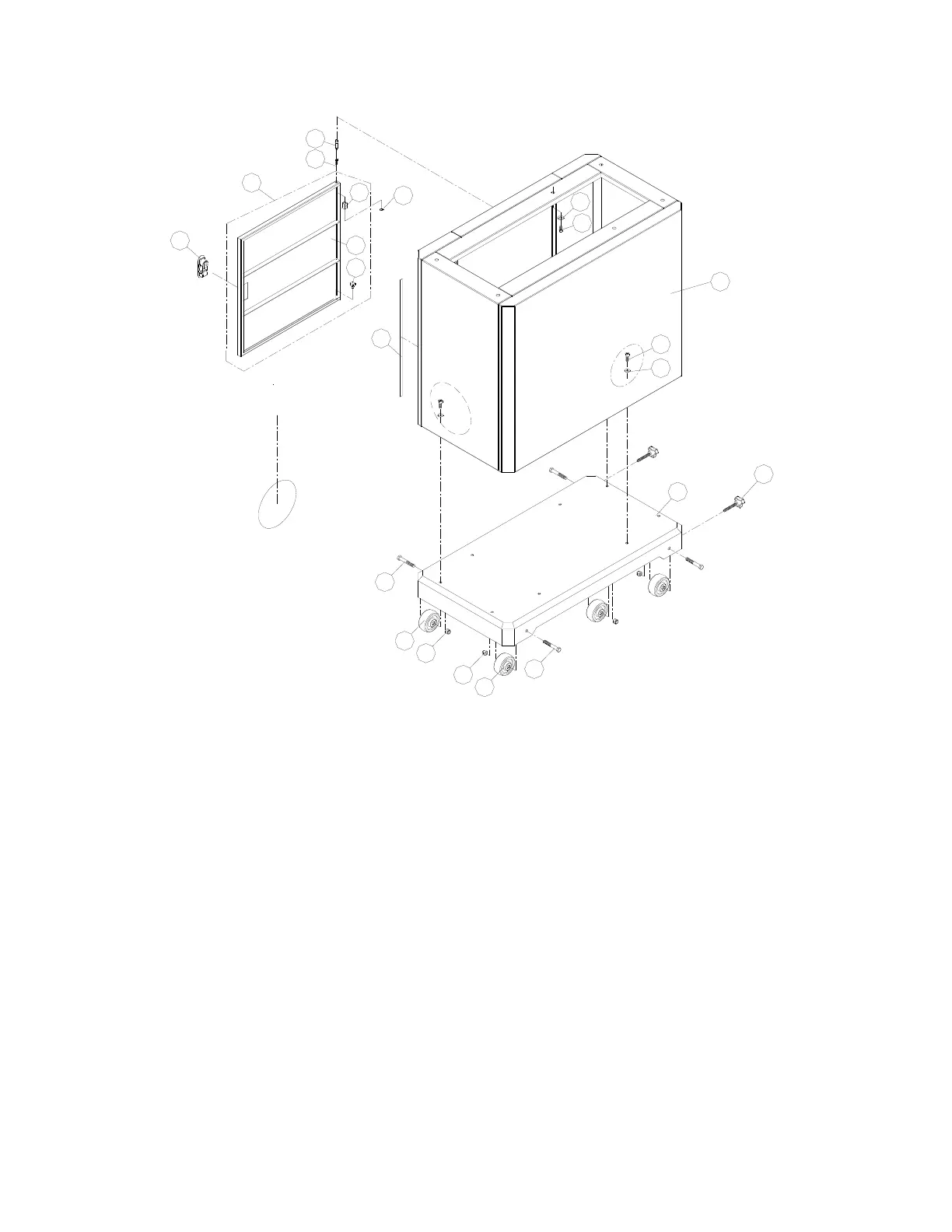

15.7.1 (OPTIONAL) Closed Stand Assembly for JWDS-2550 – Exploded View
15.7.2 (OPTIONAL) Closed Stand Assembly for JWDS-2550 – Parts List
Index No Part No Description Size Qty
.................. 723544CS ................. Closed Stand Assembly (#1 thru 14) ....................... ........................................
1 ................ JOSS-S-245 .............. Door Latch ............................................................... ...................................... 1
2 ................ JWDS2550-702 ......... Cabinet Door ........................................................... ...................................... 1
3 ................ JOSS-S-242 .............. Door Pivot ................................................................ ...................................... 1
4 ................ JOSS-S-243 .............. Compression Spring ................................................ ...................................... 1
5 ................ 6286482 .................... E-Retaining Ring Ext. .............................................. ETW-4 ........................... 1
6 ................ JWDS2550-706 ......... Foam Strip ............................................................... ...................................... 1
7 ................ TS-1550061 .............. Flat Washer ............................................................. 8.3 x 18 x 1.5T ............ 14
8 ................ TS-1504031 .............. Socket Head Cap Screw ......................................... M8-1.25P x 16L .......... 14
9 ................ JWDS2550-709 ......... Cabinet .................................................................... ...................................... 1
10 .............. TS-0060111 .............. Hex Cap Screw ........................................................ 3/8”-16UNC x 2-1/2”L ... 4
11 .............. PJE-S05 .................... Wheel ...................................................................... ...................................... 4
12 .............. TS-0640091 .............. Nylon Lock Hex Nut ................................................. 3/8”-16UNC ................... 4
13 .............. JWDS2550-713 ......... Base ........................................................................ ...................................... 1
14 .............. JWDS2550-714 ......... Knob ........................................................................ ...................................... 2
14
13
1
3
2
5
4
6
12
11
10
10
11
12
7
8
7
8
2.2
2.1
2.3
9
