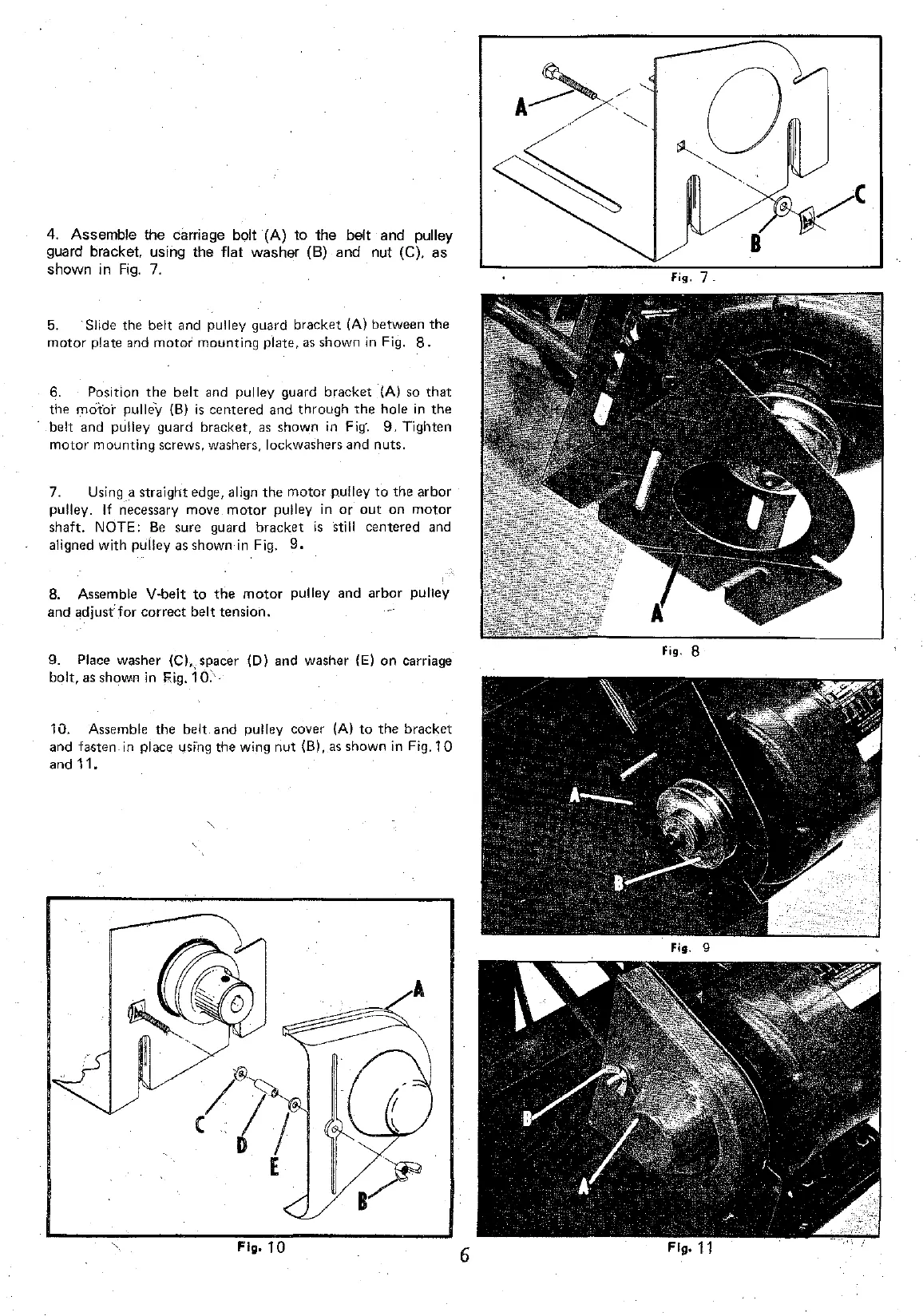

4. Assemble the carriage boit (A) to the bel! and pulley
guard bracket. using the flat washer (B) and nut (C). as
shawn in Fig. 7.
5. Slide the belt and pulley guard bracket (A) between the
motor plate and motoi mounting plate, as shawn in Fig. 8.
6. Position the belt and pu! ley guard bracket (A) sa that
the m01:Cfr pulle\r (B) is centered and through the hale in the
be!t and pu!ley guard bracket, as shawn in Fig·. 9. Tighten
motor mounting screws, washers, lockwashers and nuts.
7. Using_a straight edge, align the motor pulley to the Ç~.rbor
pulley. If necessary move motor pu !ley in or out on motor
shaft. NOTE: Be sure guard bracket is still centered and
aligned with pulley as shawn in Fig. 9.
8. Assemble V-belt to the motor pulley and arbor pulley
and adjust:for correct belt tension.
9. Place washer {C),_ spacer (D) and washer {E) on carriage
boit, as shawn in i';i.g. i 0\
1 O. Assemble the belt and pulle y caver (A) to the bracket
and fasten.in place usïng the wing nut (8), as shawn in Fig.10
and 11.
'@
/(/
E
Fig. 10
6
Fig. 11
