Jet JTM-1254VS - JTM-1254 VS;RVS Control Box Assembly - Exploded View; JTM-1254 VS;RVS Control Box Assembly - Parts List

45

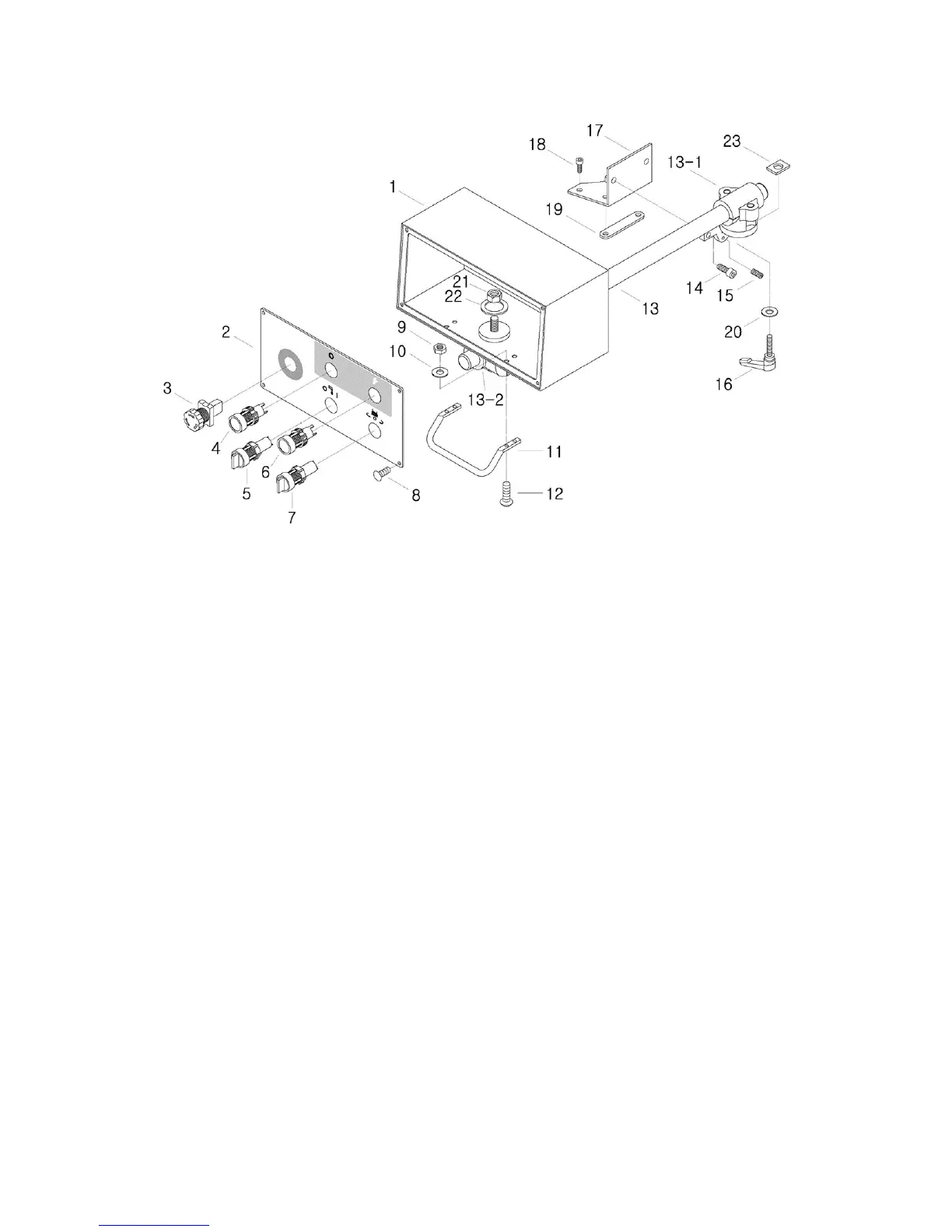

12.8.1 JTM-1254VS/RVS Control Box Assembly – Exploded View
12.8.2 JTM-1254VS/RVS Control Box Assembly – Parts List
Index No Part No Description Size Qty
.................. JTM1254VS-CBA ...... Control Box Assembly (includes #1~8) .................... ...................................... 1
1 ................ JTM949EVS-E01 ...... Control Box .............................................................. ...................................... 1
2 ................ JTM1254VS-CB ........ Control Panel ........................................................... ...................................... 1
3 ................ JTM949EVS-E09 ...... Emergency Switch ................................................... ...................................... 1
4 ................ JTM949EVS-E07 ...... Spindle Stop Button ................................................. ...................................... 1
5 ................ JTM949EVS-E06 ...... Coolant Pump Switch .............................................. ...................................... 1
6 ................ JTM949EVS-E08 ...... Power Start Button .................................................. ...................................... 1
7 ................ JTM949EVS-E04 ...... F/R Select Switch .................................................... ...................................... 1
8 ................ TS-2245102 .............. Socket Head Button Screw ...................................... M5x10L ......................... 4
9 ................ TS-1540031 .............. Hex Nut .................................................................... M5 ................................. 4
10 .............. TS-1550031 .............. Flat Washer ............................................................. Ø5 ................................. 4
11 .............. JTM949EVS-E12 ...... Handle ..................................................................... ...................................... 1
12 .............. TS-2245162 .............. Socket Head Button Screw ...................................... M5x16 ........................... 4
.................. JTM949EVS-E14 ...... Support Rod Unit Assembly (includes #13, 13-1, 13-2, 16, 20, 23) ............... 1
13 .............. JTM1254VS-E13 ....... Rod ......................................................................... ...................................... 1
13-1 ........... JTM1254VS-E13-1 .... Rotating Bracket ...................................................... ...................................... 1
13-2 ........... JTM1254VS-E13-2 .... Control Box Bracket ................................................. ...................................... 1
14 .............. TS-1504041 .............. Hex Socket Cap Screw ............................................ M8X20L ........................ 2
15 .............. TS-1523031 .............. Socket Set Screw .................................................... M6x10 ........................... 3
16 .............. JTM949EVS-E18 ...... Lock Handle ............................................................. M12X35L ...................... 1
17 .............. JTM949EVS-E19 ...... Bracket..................................................................... ...................................... 1
18 .............. TS-1523051 .............. Hex Socket Cap Screw ............................................ M6x16L ......................... 3
19 .............. JTM1254VS-E19 ....... Spacer ..................................................................... ...................................... 1
20 .............. JTM949EVS-B120 .... Flat Washer ............................................................. Ø13xØ20x2T ................ 1
21 .............. TS-0640081 .............. Hex Nylon Lock Nut ................................................. 5/16"-18 ........................ 1
22 .............. JTM1254VS-E22 ....... Rubber gasket ......................................................... ...................................... 1
23 .............. JTM1254VS-E23 ....... Nut ........................................................................... ...................................... 1
.................. JTM1254VS-D19 ....... Cable (Control Panel to Electrical Box) – not shown ...................................... 1
