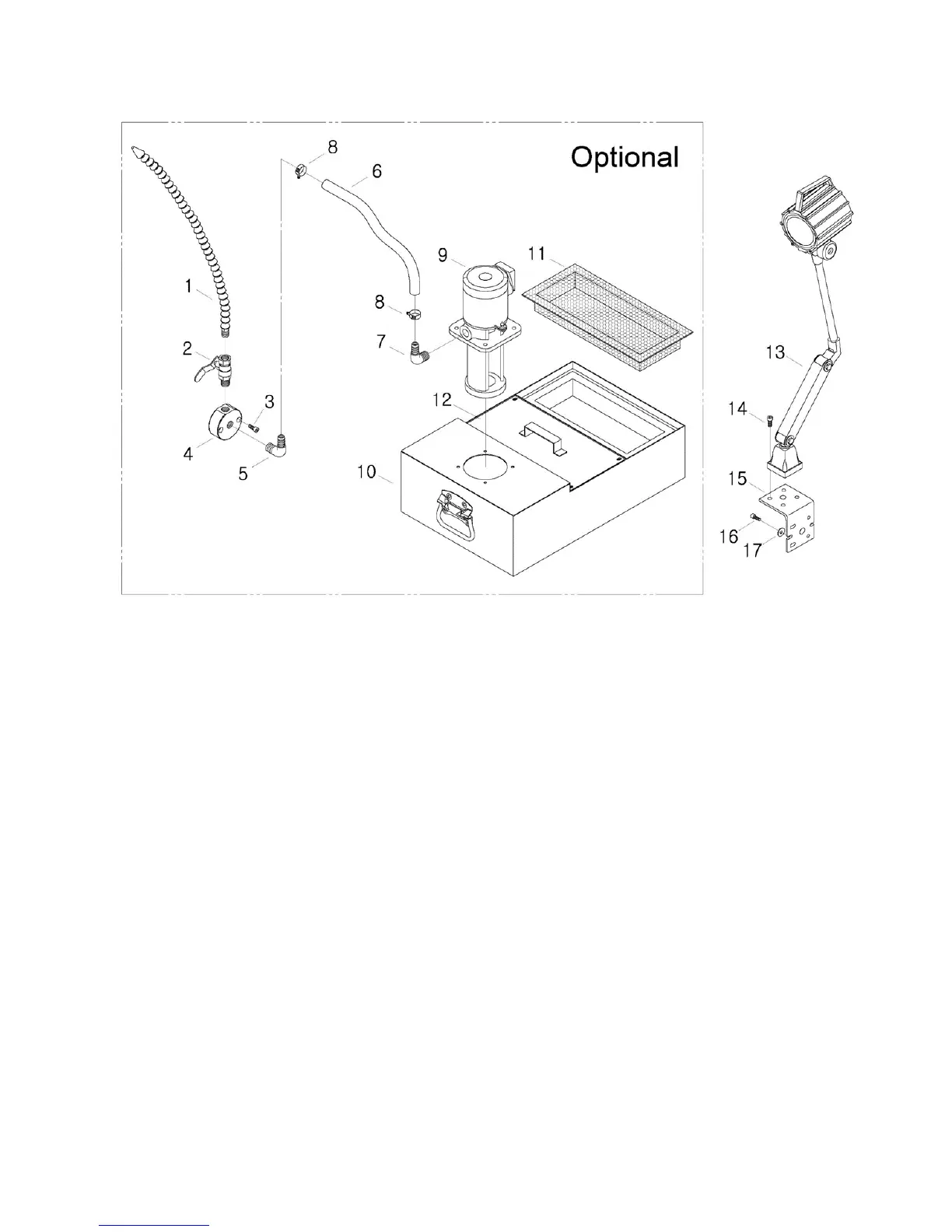

12.10.1 JTM-1254VS/RVS Coolant Pump (Optional) – Exploded View
12.11.1 JTM-1254VS/RVS Work Lamp – Exploded View
12.10.2 JTM-1254VS/RVS Coolant Pump (Optional) – Parts List
Index No Part No Description Size Qty
.................. JTM949EVS-G00 ...... Coolant Pump Kit (includes #1 thru 12) ................... ........................................
1 ................ JTM949EVS-G01 ...... Plastic Nozzle .......................................................... ...................................... 1
2 ................ JTM949EVS-G02 ...... Valve ........................................................................ PT 3/8" x 1/2" ................ 1
3 ................ TS-1503091 .............. Hex Socket Cap Screw ............................................ M6 x 40 ......................... 2
4 ................ JTM949EVS-G04 ...... Block ........................................................................ ...................................... 1
5 ................ JTM949EVS-G07 ...... Hose Fitting.............................................................. PT 3/8" x 1/2" (90°) ....... 1
6 ................ JTM949EVS-G06 ...... Hose ........................................................................ 1/2" ................................ 1
7 ................ JTM949EVS-G07 ...... Hose Fitting.............................................................. PT 3/8" x 1/2" (90°) ....... 1
8 ................ JTM949EVS-G08 ...... Hose Clamp ............................................................. 5/6" (11 ~ 20) ................ 2
9 ................ JTM949EVS-G09 ...... Coolant Pump .......................................................... 1/8HP ............................ 1
10 .............. JTM949EVS-G10 ...... External Coolant Tank ............................................. ...................................... 1
11 .............. JTM949EVS-G11 ...... Strainer .................................................................... ...................................... 1
12 .............. JTM949EVS-G12 ...... Cover with handle .................................................... ...................................... 1
12.11.2 JTM-1254VS/RVS Work Lamp – Parts List
13 .............. JTM949EVS-G13 ...... Work Lamp .............................................................. 24V / LED ..................... 1
14 .............. TS-1502041 .............. Hex Socket Cap Screw ............................................ M5X16 .......................... 4
15 .............. JTM949EVS-G15 ...... Work Light Bracket .................................................. ...................................... 1
16 .............. TS-1503041 .............. Hex Socket Cap Screw ............................................ M6X16 .......................... 6
17 .............. TS-1550041 .............. Flat Washer ............................................................. Ø6mm ........................... 6
18 .............. JTM949EVS-G18 ...... LED Bulb (not shown) .............................................. 24V ............................... 1
