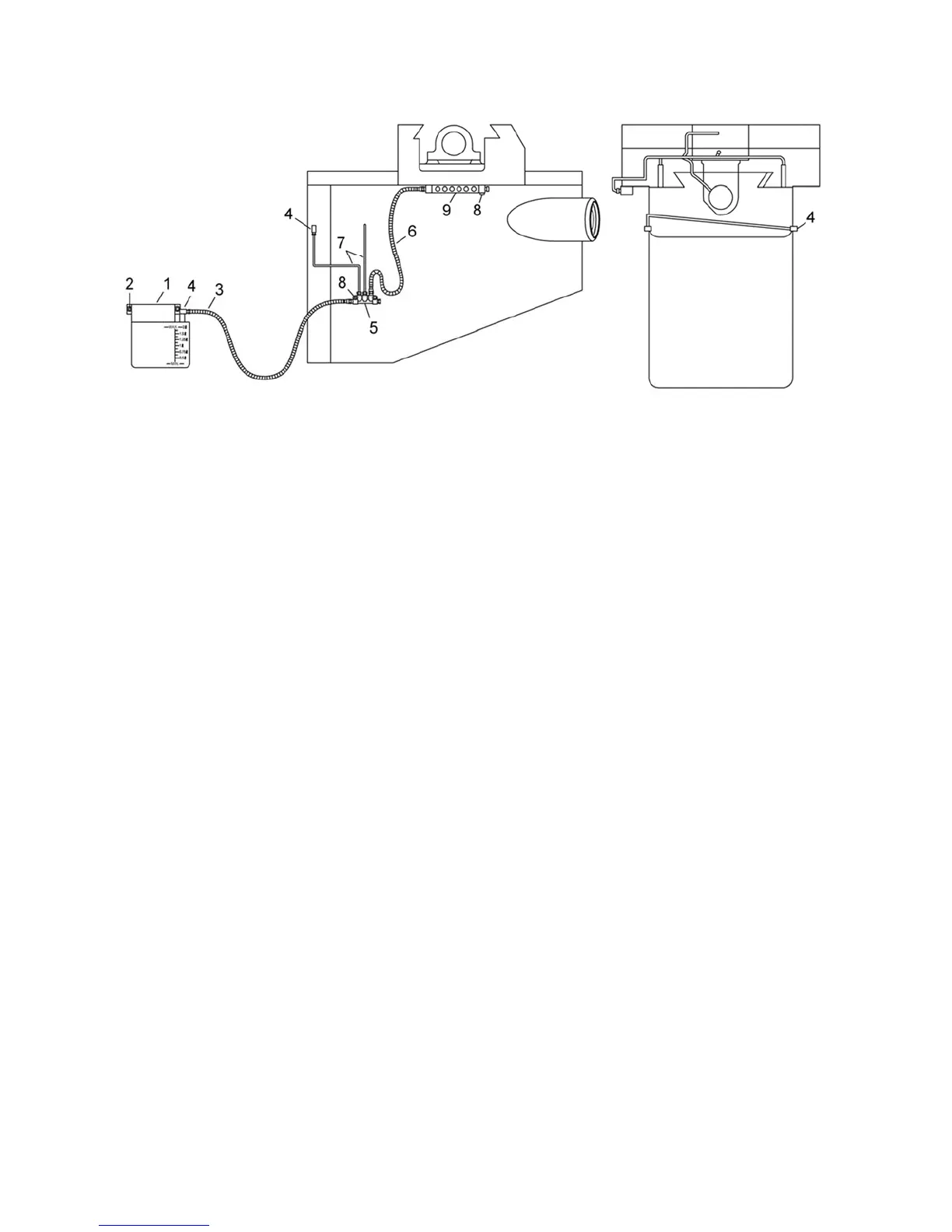

12.13.1 JTM-1254VS/RVS Lubrication System – Exploded View

12.13.2 JTM-1254VS/RVS Lubrication System – Parts List

Index No Part No Description Size Qty

1 ................ JTM949EVS-J01N .... Automatic Oiler ........................................................ 2L, 0~180min ................ 1

2 ................ TS-1503061 .............. Hex Socket Cap Screw ............................................ M6x25L ......................... 2

3 ................ JTM949EVS-J03 ....... Flexible Steel Tube .................................................. Ø4 ................................. 1

4 ................ JTM949EVS-J04 ....... Elbow Adaptor ......................................................... Ø4 ................................. 3

5 ................ JTM949EVS-J10 ....... Oil Distributor ........................................................... Ø4, 6 holes ................... 2

6 ................ JTM949EVS-J06 ....... Flexible Steel Tube .................................................. ...................................... 1

7 ................ JTM949EVS-J07 ....... Aluminum Pipe......................................................... Ø4 ................................. 2

8 ................ TS-1502061 .............. Hex Socket Cap Screw ............................................ M5x25L ......................... 4

9 ................ JTM1254VS-J09 ....... Oil Distributor ........................................................... Ø4, 8 holes ................... 1

.................. JTM1254VS-J05A ..... Oil Distributor Kit (incl. #3,5,6,9) .............................. ...................................... 1
