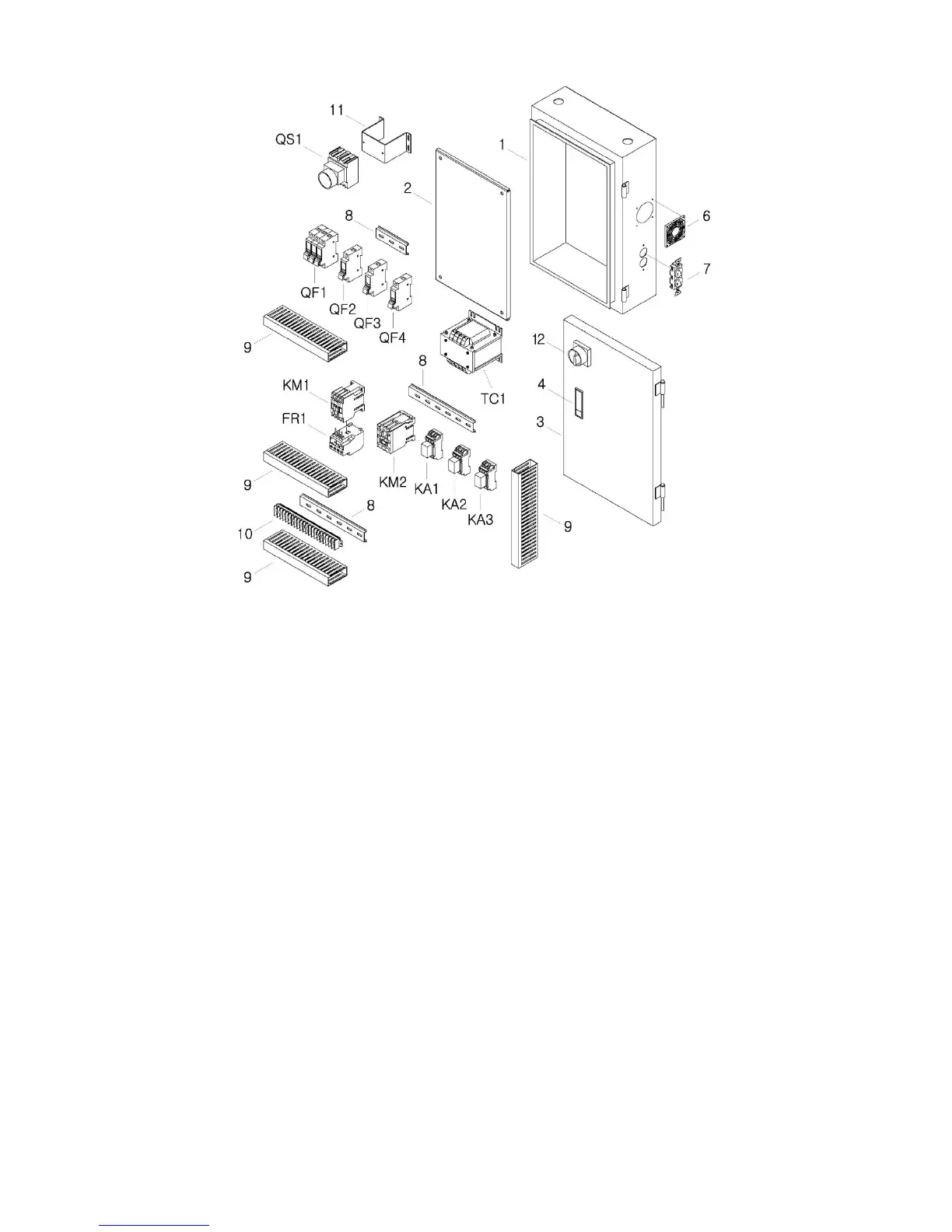

12.9.1 JTM-1254VS/RVS Electrical Box – Exploded View
12.9.2 JTM-1254VS/RVS Electrical Box – Parts List
Index No Part No Description Size Qty
1 ................ JTM949EVS-F01 ....... Electrical Cabinet (RE: JTM949EVS-F21) ............... ...................................... 1
2 ................ JTM949EVS-F02 ....... Electrical Plate (RE: JTM949EVS-F21) ................... ...................................... 1
3 ................ JTM949EVS-F03 ....... Electrical Cabinet Door (RE: JTM949EVS-F21) ...... ...................................... 1
.................. JTM949EVS-F21 ....... Electrical Cabinet Assembly (includes #1-3) ........... ...................................... 1
4 ................ JTM949EVS-F04 ....... Door Latch ............................................................... ...................................... 1
6 ................ JTM949EVS-F18 ....... Fan Cover ................................................................ ...................................... 1
7 ................ JTM949EVS-F19 ....... Electric Receptacle .................................................. ...................................... 1
8 ................ JTM949EVS-F16 ....... Aluminum Rail.......................................................... ...................................... 2
9 ................ JTM949EVS-F14 ....... Wire Casing ............................................................. ...................................... 5
10 .............. JTM949EVS-F15. ...... Terminal Block ......................................................... ...................................... 1
11 .............. JTM949EVS-F21 ....... Switch Bracket ......................................................... ...................................... 1
12 .............. JTM949EVS-F05-1 ... Switch Interface ....................................................... ...................................... 1
QS1 ........... JTM949EVS-F05 ....... Door Switch (includes #12) ...................................... ...................................... 1
TC1 ........... JTM949EVS-F06 ....... Transformer ............................................................. 400VA ........................... 1
KM1 ........... JTM1254VS-FKM1 .... Magnetic Contactor.................................................. TECO / CU-11 .............. 1
FR1 ........... JTM1254VS-FFR1 .... Flicker Relay ............................................................ ...................................... 1
KM2 ........... JTM1254VS-FKM2 .... Magnetic Contactor.................................................. TECO / CU-11 .............. 1
KA1 ........... JTM1254VS-FKA1 .... Relay........................................................................ RMIA4524VAC ............. 1
KA2 ........... JTM1254VS-FKA2 .... Relay........................................................................ RMIA21024VAC ........... 1
KA3 ........... JTM1254VS-FKA3 .... Relay........................................................................ RMIA4524VAC ............. 1
QF1 ........... JTM1254VS-FQF1 .... Power Circuit Breaker .............................................. 3P 25A .......................... 1
QF2 ........... JTM1254VS-FQF2 .... Power Circuit Breaker .............................................. 1P 2A ............................ 1
QF3 ........... JTM1254VS-FQF3 .... Power Circuit Breaker .............................................. 1P 6A ............................ 1
QF4 ........... JTM1254VS-FQF4 .... Power Circuit Breaker .............................................. 1P 6A ............................ 1
