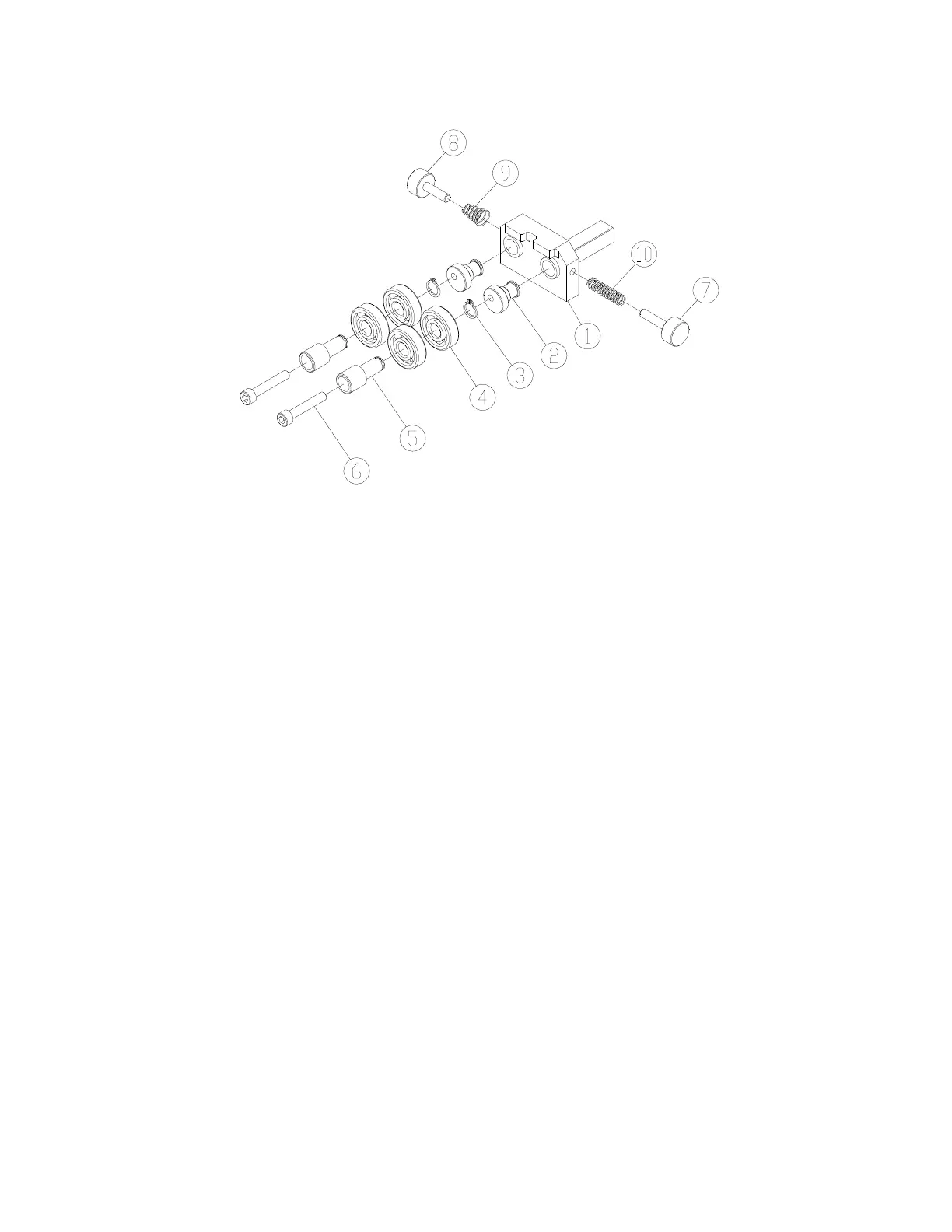

13.7.1 JWBS-15 Lower Blade Guide Assembly – Exploded View
13.7.2 JWBS-15 Lower Blade Guide Assembly – Parts List
Index No Part No Description Size Qty
.................. JWBS15-1137 ........... Lower Blade Guide Assembly (#1 thru 10) .............. ........................................
1 ................ PM1500-096-01 ........ Lower Blade Guide Support .................................... ...................................... 1
2 ................ PM1500-096-02 ........ Eccentric Shaft......................................................... ...................................... 2
3 ................ 6286478 .................... E Ring ...................................................................... S12 ............................... 2
4 ................ BB-6201ZZ ................ Ball Bearing ............................................................. 6201ZZ ......................... 4
5 ................ PM1500-095-05 ........ Knurled Knob ........................................................... ...................................... 2
6 ................ TS-1503081 .............. Socket Head Cap Screw ......................................... M6x35 ........................... 2
7 ................ PM1500-095-16 ........ Lock Knob ................................................................ ...................................... 1
8 ................ JWBS15-1137-508 .... Lock Knob ................................................................ ...................................... 1
9 ................ PM1800B-059-017 .... Cone Spring ............................................................. ...................................... 1
10 .............. JWBS15-1138-332 .... Spring ...................................................................... ...................................... 1
