43

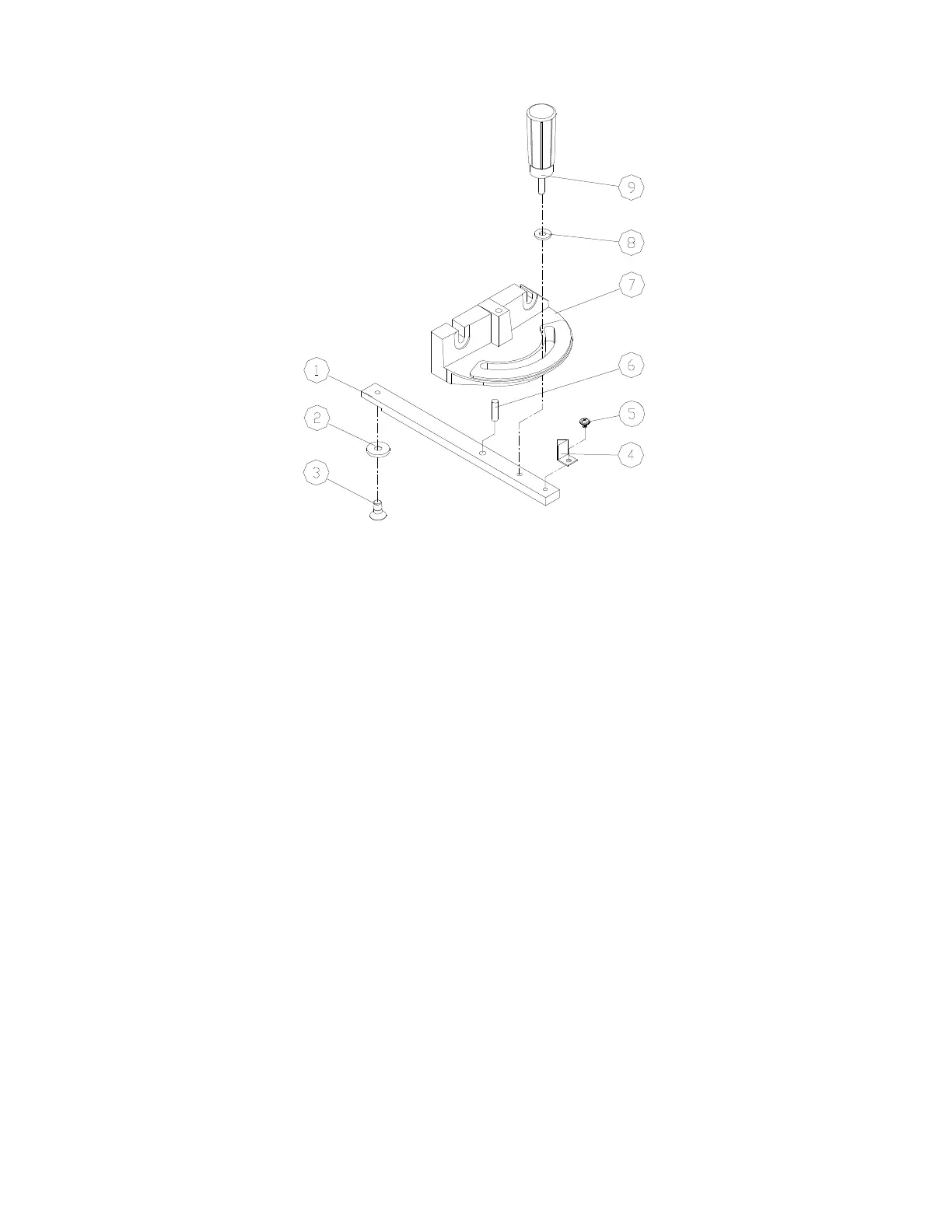

13.9.1 JWBS-15/18/20 Miter Gauge Assembly – Exploded View
13.9.2 JWBS-15/18/20 Miter Gauge Assembly – Parts List
Index No Part No Description Size Qty
.................. JWBS15-1122 ........... Miter Gauge Assembly (#1 thru 9) ........................... ........................................
1 ................ JWBS15-1122-701 .... Guide Bar................................................................. ...................................... 1
2 ................ JWBS15-1122-702 .... Guide Piece ............................................................. ...................................... 1
3 ................ JWBS15-1122-703 .... Countersunk Bolt ..................................................... M6x6 ............................. 1
4 ................ JWBS15-1122-704 .... Pointer ..................................................................... ...................................... 1
5 ................ PWBS14-251-5 ......... Pan Head Flanged Screw ........................................ M5x8 ............................. 1
6 ................ JWBS15-1122-706 .... Steel Pin .................................................................. Ø6x10mm ..................... 1
7 ................ JWBS15-1122-707 .... Miter Gauge Body .................................................... ...................................... 1
8 ................ JWBS15-1122-708 .... Nylon Washer .......................................................... ...................................... 1
9 ................ JWBS15-1122-709 .... Handle ..................................................................... ...................................... 1
