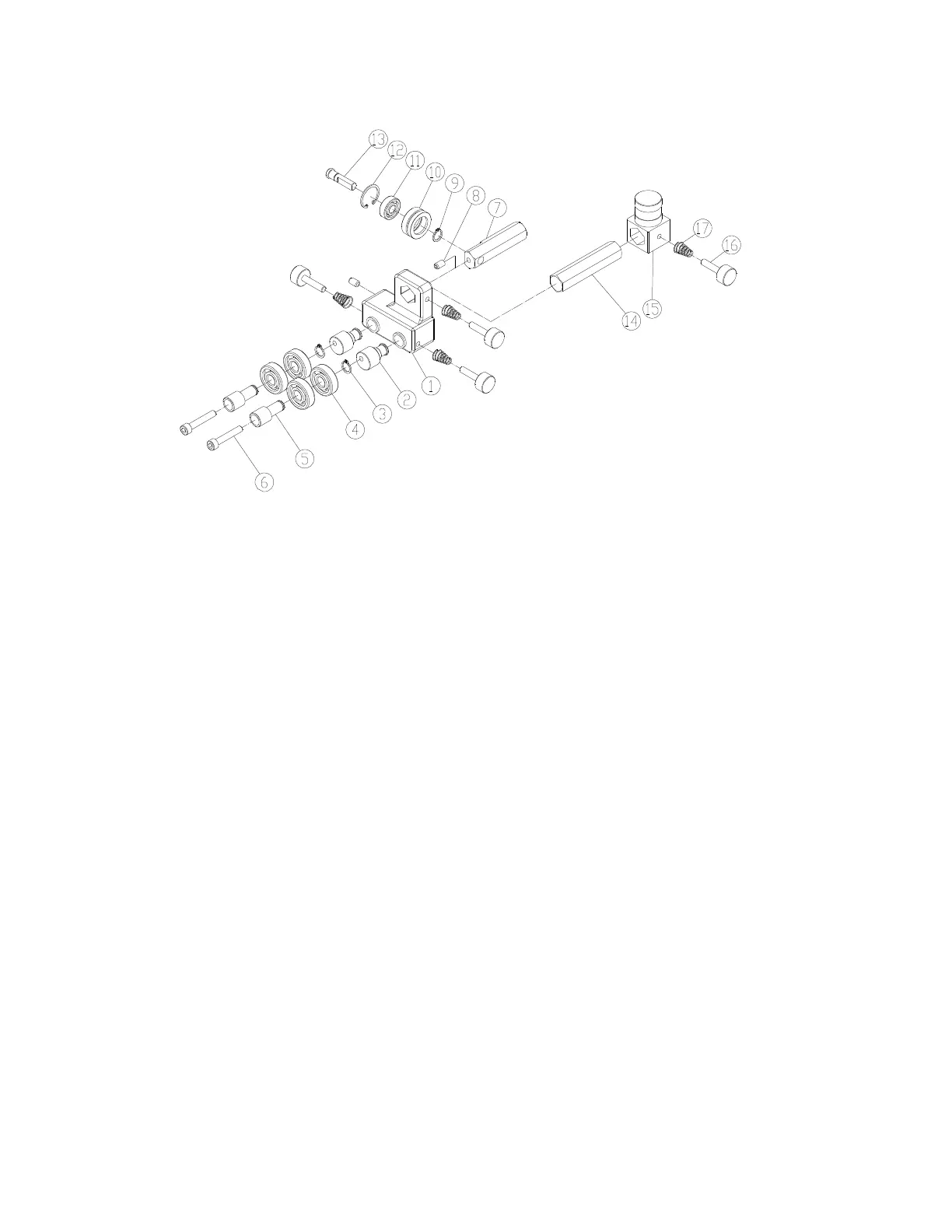

13.8.1 JWBS-15 Upper Blade Guide Assembly – Exploded View
13.8.2 JWBS-15 Upper Blade Guide Assembly – Parts List
Index No Part No Description Size Qty
.................. JWBS15-1121 ........... Upper Blade Guide Assembly (#1 thru 17) .............. ........................................
1 ................ PM1500-095-01 ........ Upper Blade Guide Support .................................... ...................................... 1
2 ................ PM1500-095-02 ........ Eccentric Shaft......................................................... ...................................... 2
3 ................ 6286478 .................... Retaining Ring ......................................................... S12 ............................... 2
4 ................ BB-6201ZZ ................ Ball Bearing ............................................................. 6201ZZ ......................... 4
5 ................ PM1500-095-05 ........ Knurled Knob ........................................................... ...................................... 2
6 ................ TS-1503081 .............. Socket Head Cap Screw ......................................... M6x35 ........................... 2
7 ................ PM1500-095-07 ........ Sleeve ...................................................................... ...................................... 1
8 ................ TS-1523011 .............. Set Screw ................................................................ M6x6 ............................. 2
9 ................ PM1500-085-29 ........ S Ring ...................................................................... S8 ................................. 1
10 .............. PM1500-085-28 ........ Thrust Bearing Holder.............................................. ...................................... 1
11 .............. BB-608ZZ .................. Ball Bearing ............................................................. 608ZZ ........................... 1
12 .............. PM1500-085-26 ........ Retaining Ring ......................................................... R22 ............................... 1
13 .............. PM1500-085-25 ........ Adjust Shaft ............................................................. ...................................... 1
14 .............. PM1500-095-14 ........ Hex Post .................................................................. ...................................... 1
15 .............. PM1500-095-15 ........ Upper Guide Support Block ..................................... ...................................... 1
16 .............. PM1500-095-16 ........ Lock Knob ................................................................ ...................................... 1
17 .............. PM1800B-059-017 .... Cone Spring ............................................................. ...................................... 4
