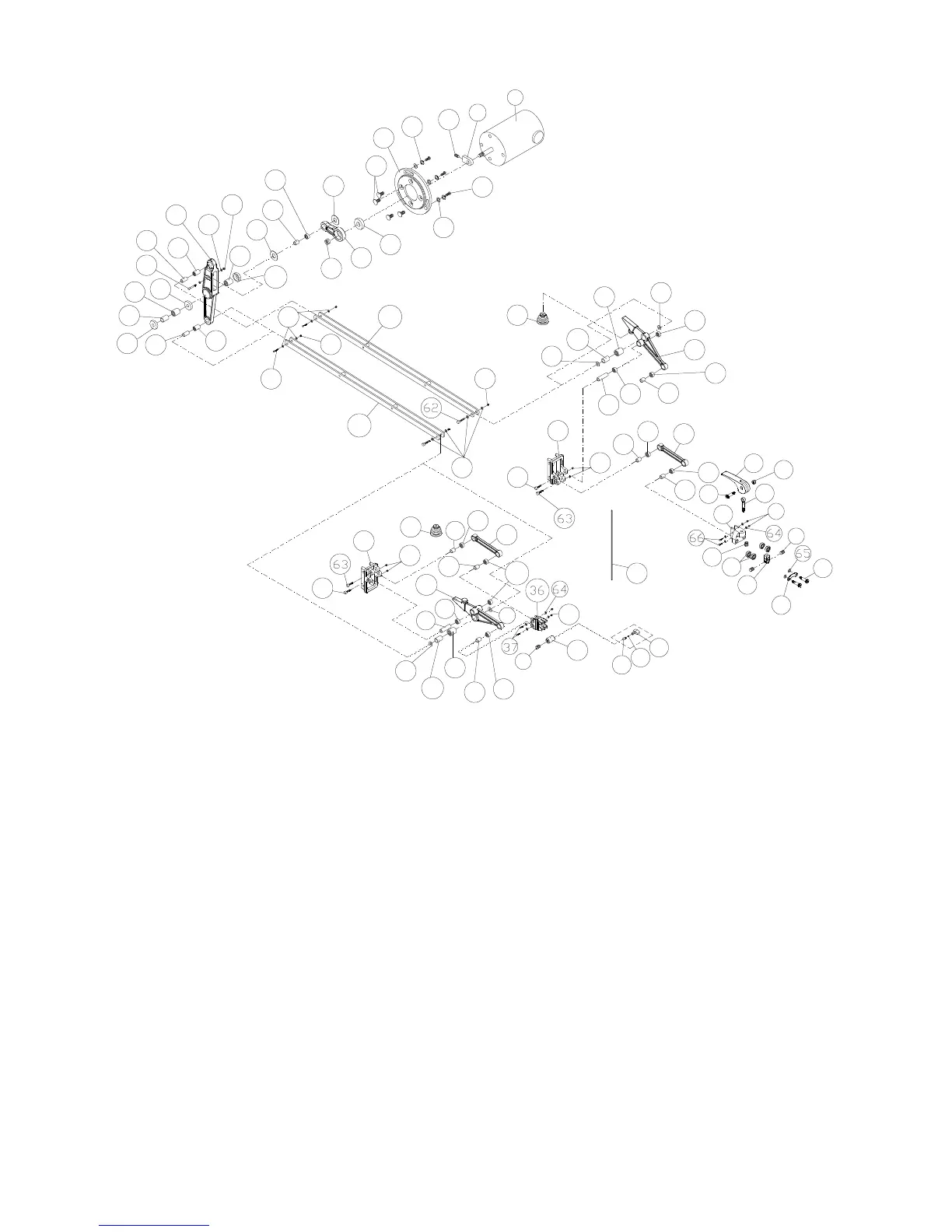

15.3.1 JWSS-22B Drive Link Assembly – Exploded View
15.3.2 JWSS-22B Drive Link Assembly – Parts List
Index No Part No Description Size Qty
1 ................ JWSS22B-401 ........... Motor........................................................................ ...................................... 1
.................. JWSS22B-MCB ......... Motor Carbon Brush (not shown) ............................ ...................................... 2
.................. JWSS22B-MCBC ...... Motor Carbon Brush Cap (not shown) ..................... ...................................... 2
.................. LM000190 ................. Motor Label, JWSS-22B (not shown) ...................... ...................................... 1
2 ................ JWSS22B-402 ........... Balance Block .......................................................... ...................................... 1
3 ................ TS-1523011 .............. Socket Set Screw .................................................... M6x6 ............................. 1
4 ................ TS-0254021 .............. Button Head Socket Screw ...................................... 1/4-20x1/2 ..................... 3
5 ................ TS-0720071 .............. Lock Washer ............................................................ 1/4 ................................. 3
6 ................ TS-0680021 .............. Flat Washer ............................................................. 1/4 ................................. 3
7 ................ JWSS22B-407 ........... Motor Cover Plate .................................................... ...................................... 1
8 ................ TS-1514021 .............. Socket Head Flat Screw .......................................... M6x16 ........................... 4
.................. JWSS22B-CDLA ....... Complete Drive Link Assembly (#9 thru 27, #52) .... ...................................... 1
9 ................ BB-608ZZ .................. Ball Bearing ............................................................. 608ZZ ........................... 1
10 .............. TS-1550061 .............. Flat Washer ............................................................. M8 ................................. 6
11 .............. JWSS22B-411 ........... Motor Cam ............................................................... ...................................... 1
12 .............. JWSS22B-412 ........... Nut ........................................................................... M8xP1.25LH ................. 1
13 .............. JWSS22B-413 ........... Bearing .................................................................... 810 ................................ 3
14 .............. JWSS22B-414 ........... Inner Bearing Sleeve ............................................... Ø8.046x21.5mm ........... 1
15 .............. TS-1541011 .............. Hex Nylon Lock Nut ................................................. M5 ................................. 1
16 .............. TS-1550031 .............. Flat Washer ............................................................. M5 ................................. 2
1
2
3
4
6
8
7
5
9
11
12
10
13
14
10
15
16
17
18
19
20
21
22
19
18
23
22
25
26
27
52
25
26
30
55
52
30
18
28
29
26
18
26
29
28
35
35
18
32
32
18
33
33
10
10
10
10
31
13
31
13
18
18
18
55
34
34
18
59
26
40
42
38
44
43
45
46
47
44
48
49
50
51
24
18
23
38
59
56
57
58
26
