Cast Bottom Grate Removal
The cast bottom grate can be removed by lifting up at the front or side edges. Care should be taken to ensure
that the V boards each side of the grate do not become damaged. Particularly the thin sections that surround
the cast bottom grate.

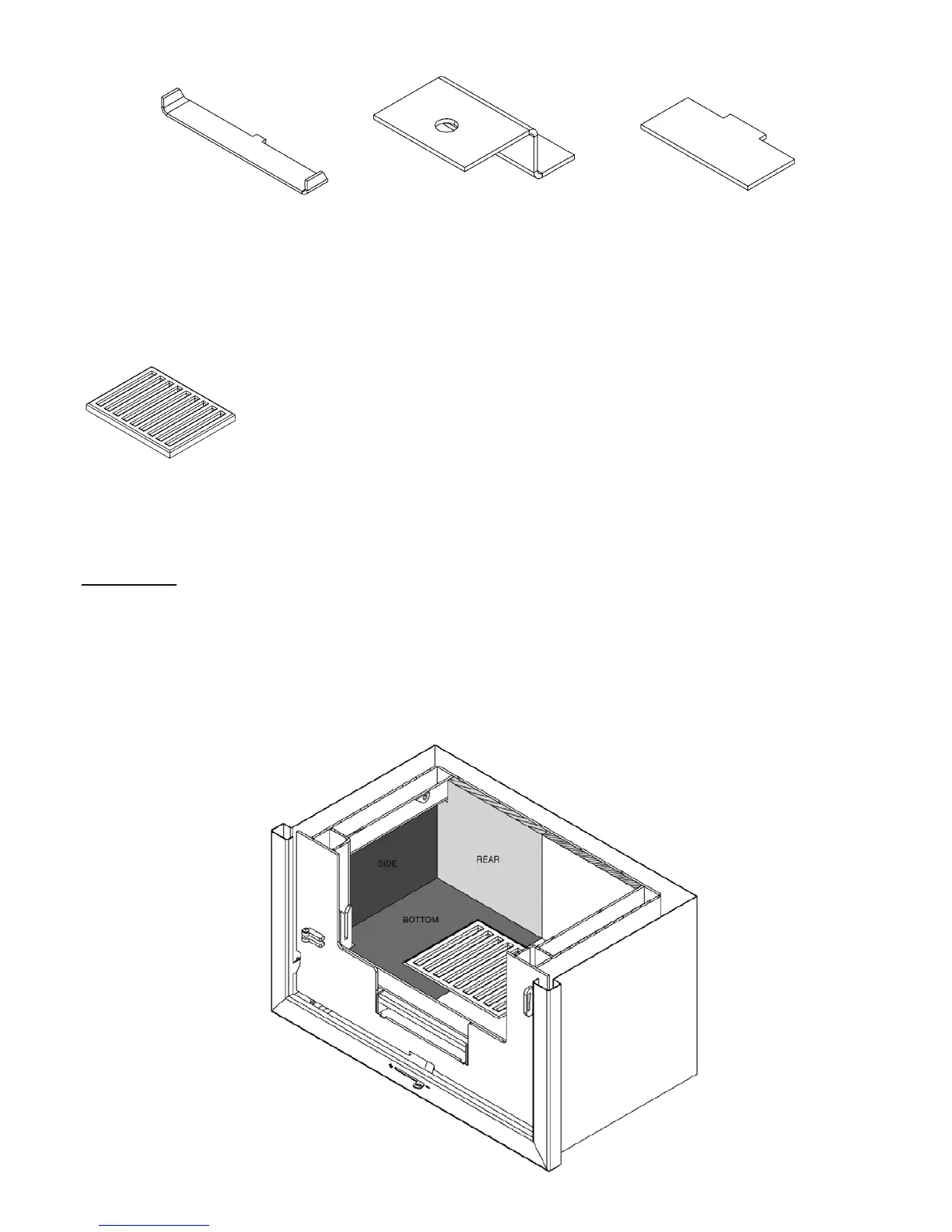

BACK REST PLATE
BOTTOM GRATE
UPPER V-BOARD BAFFLEUPPER V-BOARD CLAMP
Internal V Board Removal (Bottom, Rear and Sides)
The internal V boards need to be taken out in the following sequence:-
IMPORTANT First remove Cast Bottom Grate then Bottom V boards, then Rear V boards and then the Side V
boards.
All the V boards are soft to enable them to be stable in high temperatures so care must be taken during
handling.
The position of the V boards must be noted so that they can be replaced back in the same positions. Note also
that some of the V boards can only be tted one way around or are handed.
