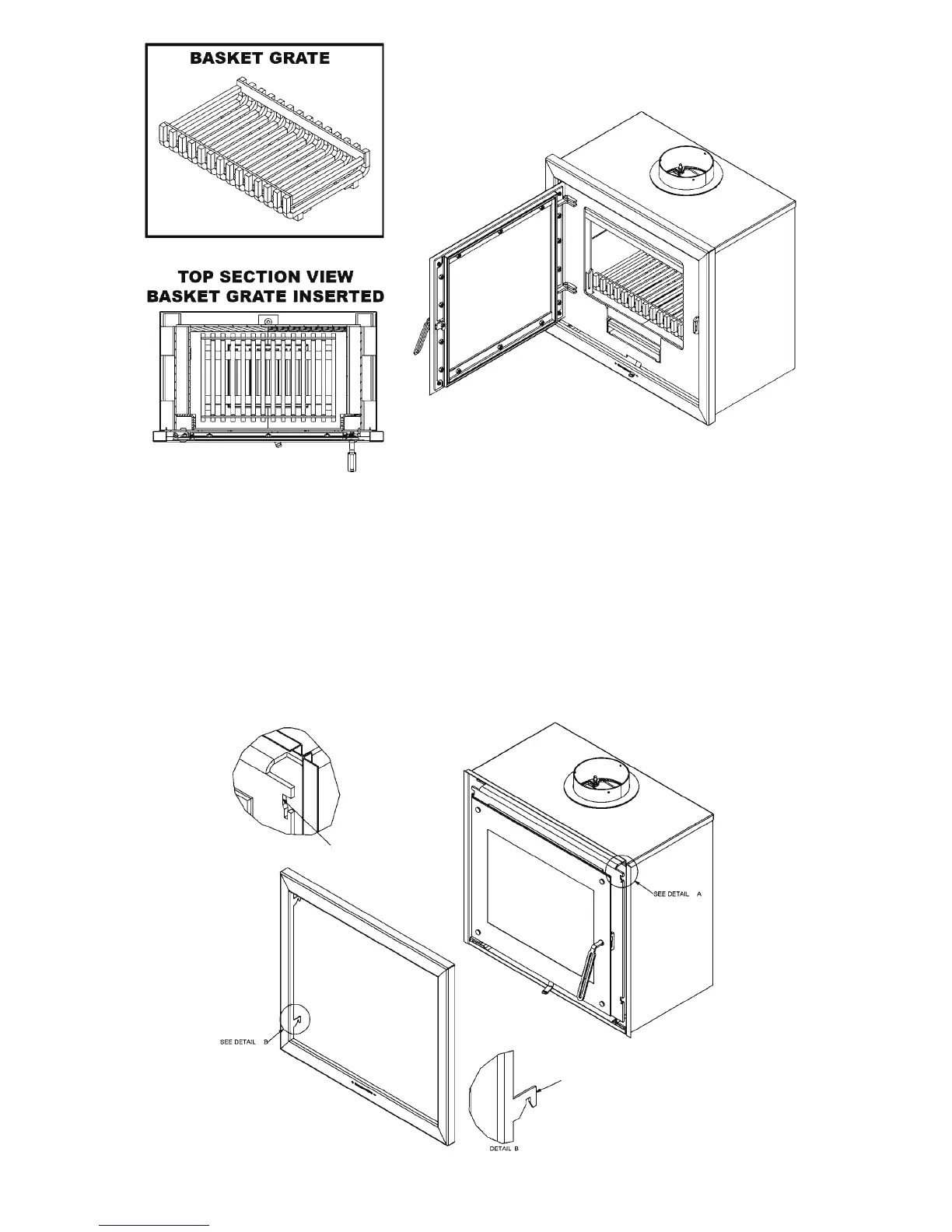

Fitting the Frame
The Frame is tted to the inner rebox by clipping the hooks onto the rebox tags located each side at the top
and bottom of the front of the inner box. Lift the Frame higher than the inner box, push towards the inner box
and then push down locating the hooks on the frame over the rebox tags. If the frame cannot be engaged
then adjust the inner rebox either by pulling outwards or pushing inwards slightly so as the frame ts correctly.
Ensure that the frame is not pressed tight against any plastered surface or surface that is likely to mark.
FRAME LOCATING TAGS
HOOKS
21
