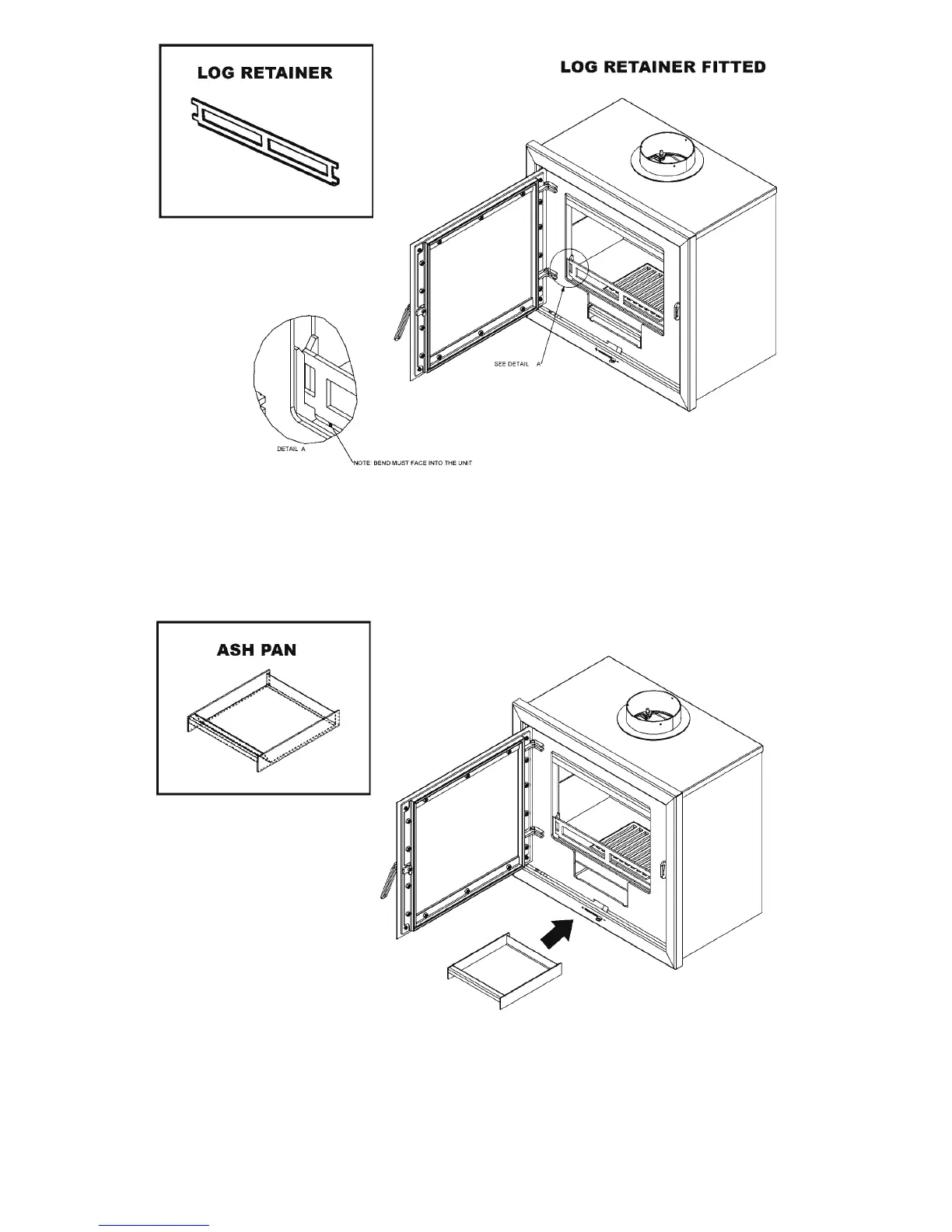

Fitting the Ash Pan
Fit the ash pan by sliding in under the cast bottom grid. Ensure it is tted the correct way around with the handle
towards the front as shown below.
Fitting the Basket Grate (Optional Extra)
The basket can be slide into the rebox centrally. It should be pushed back to the rear of the rebox and then
pulled foreword slightly by a few millimetres to allow a small air space between the rear of the basket and the
inside back of the rebox. Fit the bottom grid into the basket if supplied as a separate part.
20
