JETSURF ADVENTURE DFI PLUS - Fuel Top-Up

28
DFI003/EN_part A
FUEL TOP-UP
Observe all the safety instructions specied in this manual, mainly the
chapter FUEL TANK (part B).
NEVER add fuel into the tank which is inside the JetSurf™. Before adding
fuel, ALWAYS take the tank out.

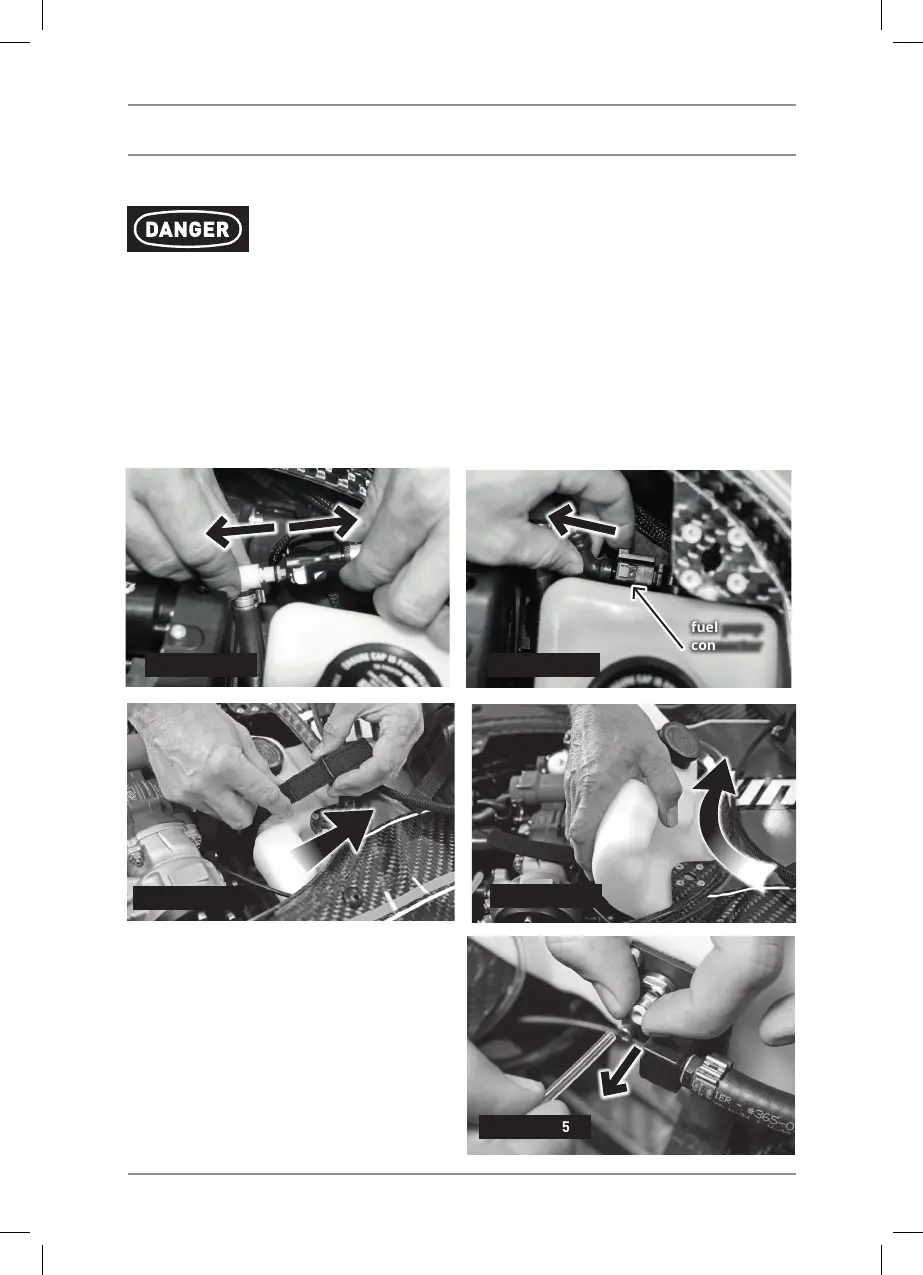

FUEL TANK REMOVAL
1) Disconnect the second CPC coupling connecting the tube coming out of the tank to the tube going
to the injector – FIGURE 1. The CPC coupling has a security clip which must be pressed when
disconnected.
2) Disconnect the fuel pump connector – FIGURE 2.
3) Undo the velcro on the tank – FIGURE 3.
4) Move the tank out upwards – FIGURE 4.
5) Disconnect the hose on the other side of
the tank – FIGURE 5 leading to the suction
hose.
FIGURE 1 FIGURE 2
FIGURE 3
RIDE
FIGURE 4
FIGURE 5
fuel pump
connector
