SECTION 3 - COMPONENT SERVICING
3121741 – JLG Lift – 3-1
SECTION 3. COMPONENT SERVICING
3.1 FRAME COVER INSTALLATION
Ecolift50
NOTE: Do not release the flywheel crank and raise the platform without weight in the platform. The mast contains a charged
gas cylinder under constant pressure to help assist the lifting process.
Ecolift70

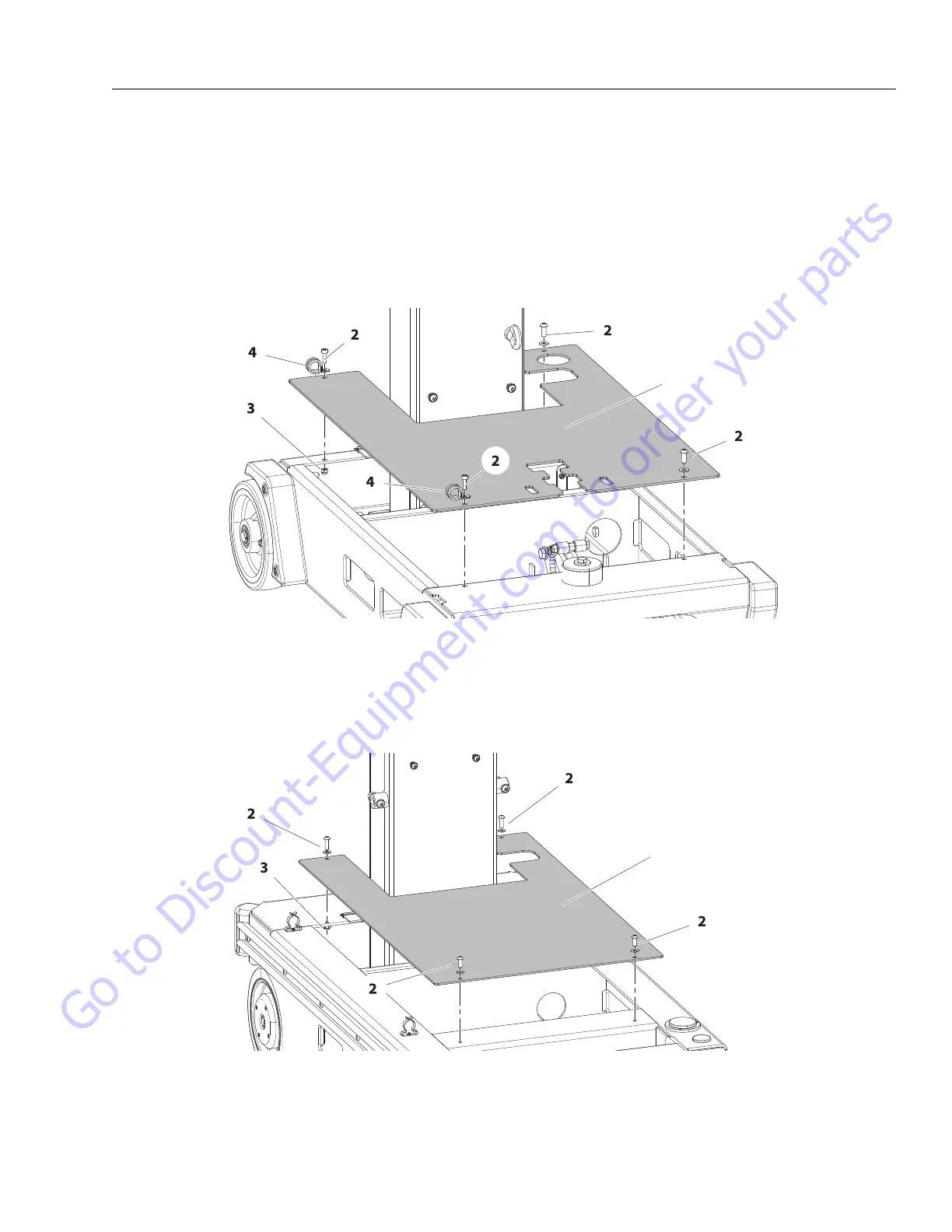

Figure 3-1. Frame Cover Installation - Ecolift50
1. Frame Cover
2. Screws and Washers
3. Lock Nut (Qty. 4)
4. Emergency Lowering Tool Mounting Clamps
1
Figure 3-2. Frame Cover Installation - Ecolift50
1. Frame Cover
2. Screws and Washers
3. Lock Nut (Qty. 4)
1
