SECTION 3 - COMPONENT SERVICING
3-16 – JLG Lift – 3121741
3.9 830P ELECTRICAL/HYDRAULIC COMPONENTS
NOTE: See Hydraulic and Electrical Diagrams in Section 4, 830P - Troubleshooting And Schematics. for complete electrical wir-
ing connections.

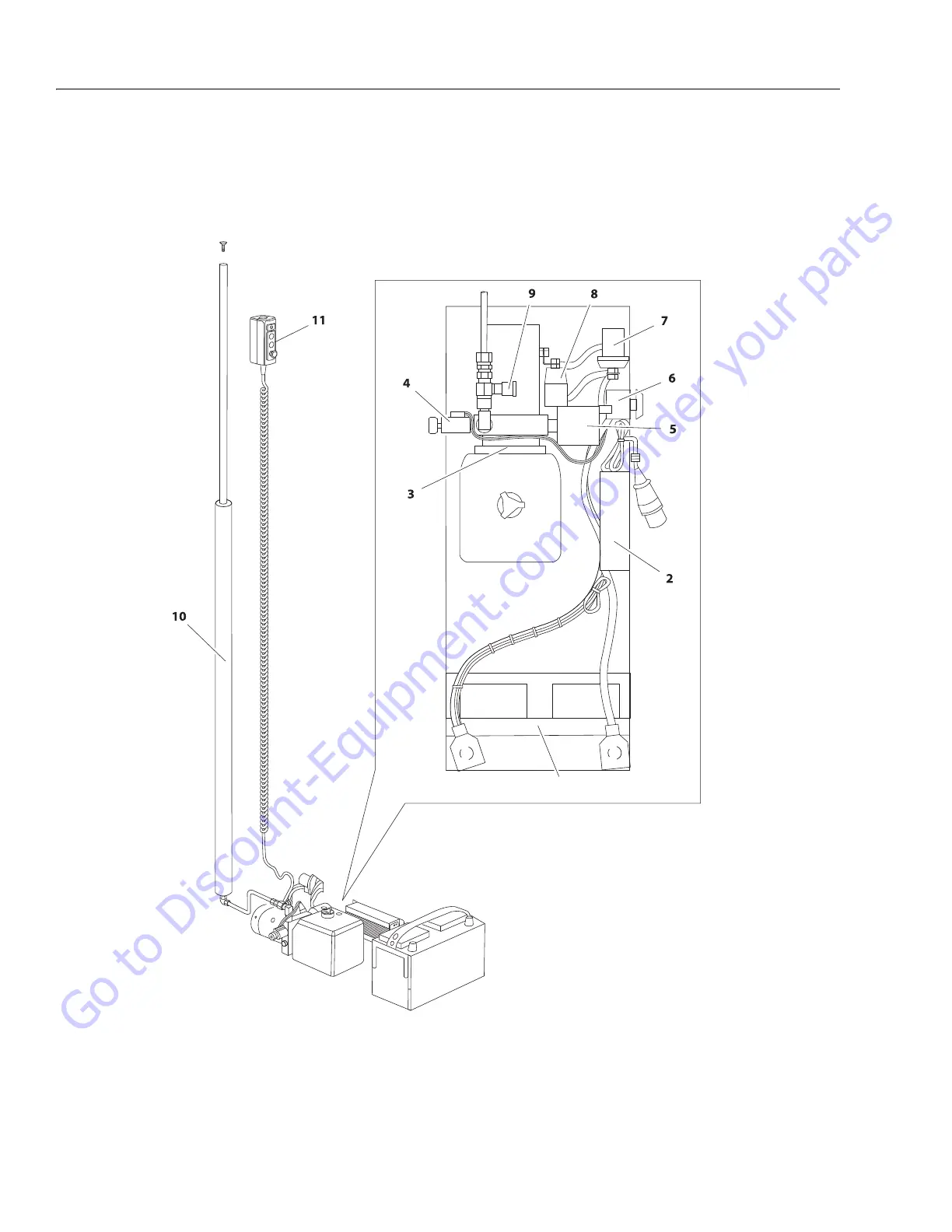

Figure 3-20. 830P Electrical/Hydraulic Components
1. Battery
2. Battery Charger
3. Hydraulic Pump and Resevoir
4. Lowering Valve w/Manual Override
5. Lift Valve
6. Emergency Stop Switch w/Key
7. Safety Solenoid
8. Pump Starter Solenoid
9. Hydraulic Test Port
10. Hydraulic Lift Cylinder
11. Platform Control Station with Enable Button
