SECTION 3 - COMPONENT SERVICING
3121741 – JLG Lift – 3-15

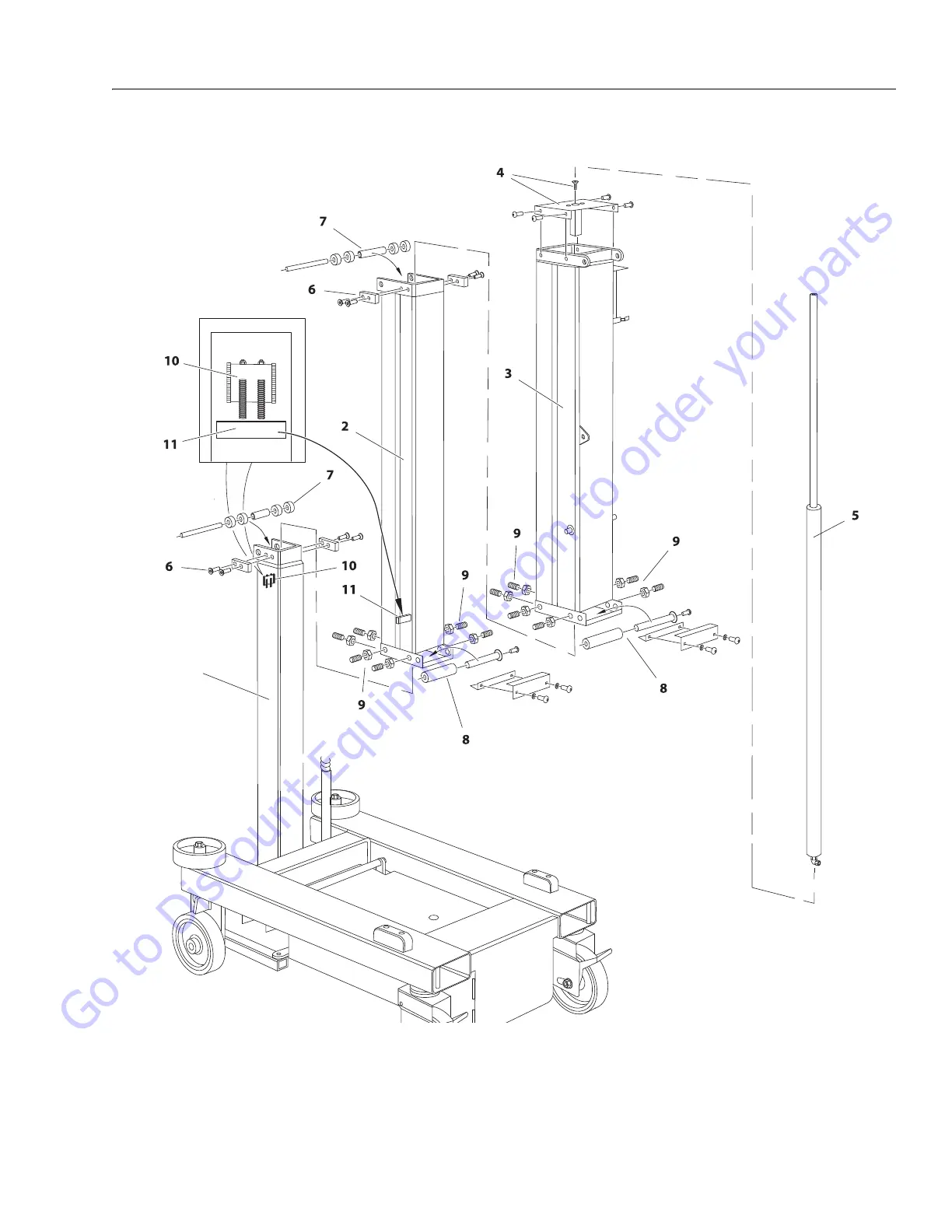

Figure 3-19. 830P Mast Assembly
1. Inner Mast Section (Welded to Base)
2. Mid Mast Section
3. Outer Mast Section
4. Mast Top Cap, Mounting and Cylinder Screws
5. Hydraulic Lift Cylinder
6. Inner and Mid - Mast Slide Pads
7. Inner and Mid - Mast Rear Guide Roller
8. Mid and Outer - Mast Front Guide Roller
9. Wear Screws
10. Spring Damper Assembly
11. Spring Damper Stop
