SECTION 3 - COMPONENT SERVICING
3-4 – JLG Lift – 3121741
3.3 CASTOR WHEEL ASSEMBLY
Ecolift70 and 830P
In order to ensure the castors are maintained in service-
able and safe condition, regular inspection is required,
especially where arduous conditions are known to be
involved or there is suspicion of misuse or abuse.
1. Using suitable lifting equipment raise the front
of the machine to allow removal of the castor
wheel.
2. Using correct size wrench or socket remove the
attaching nut on the top of the castor wheel
assembly inside the frame.
3. Slide castor assembly out bottom of frame.
Install in reverse order using the above steps.
Ecolift50
1. Use suitable lifting equipment to raise and sup-
port the front of the machine to allow removal of
the castor wheel.
2. Be certain the castor is in the down position
removing the tension from the internal spring.
3. Using correct size wrench or socket hold the
mounting bolt head on the top of the chassis
frame housing and remove the locking nut and
washer on the bottom of the castor wheel
assembly inside the castor wheel frame.
4. Slide castor and mount assembly out bottom of
frame.
Install in reverse order using the above steps.

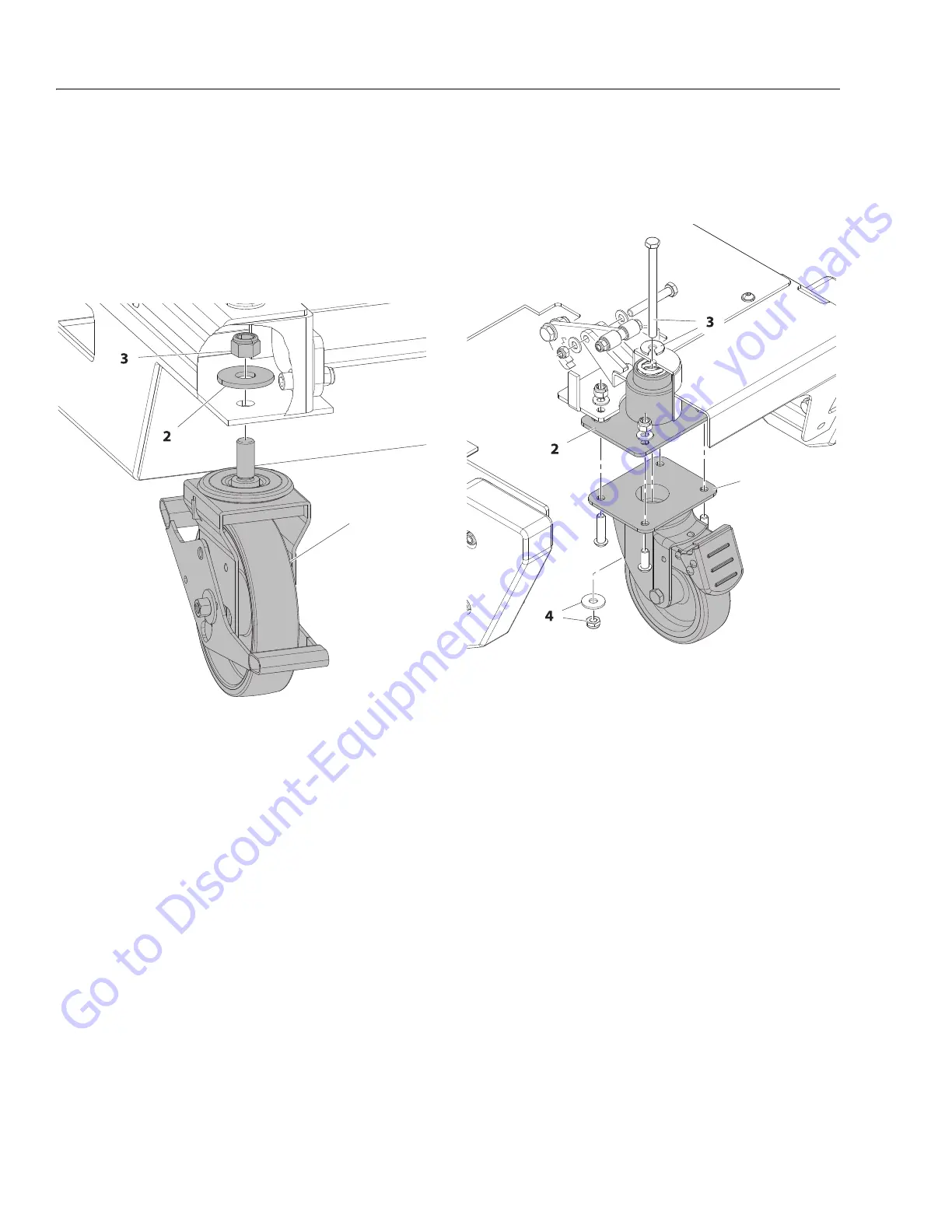

Figure 3-7. Castor Wheel Installation - Ecolift70 and 830P
1. Castor Wheel Assembly
2. Washer
3. Locking Nut
1
Figure 3-8. Castor Wheel Installation - Ecolift50
1. Castor Wheel Assembly
2. Spring Mount
3. Mounting Bolt and Washer
4. Locking Nut and Washer
1
