SECTION 3 - COMPONENT SERVICING
3-18 – JLG Lift – 3121741
AC POWER SUPPLY CIRCUIT SHOULD BE PROTECTED WITH A BREAKER
CIRCUIT. ONLY CHARGE BATTERY IN A WELL-VENTILATED AREA.
NOTE: The charger is fitted with a 15A automotive spade
fuse (blue). If the fuse has failed, the indicator lights
will still operate. The fuse may have failed if the bat-
tery is heavily discharged and the motor is run when
the charger is switched on. In such an event, the fuse
is simple to replace; ensure battery disconnect is
switched off and that the positive RED battery cable
is disconnected before attempting to check or
change fuse.

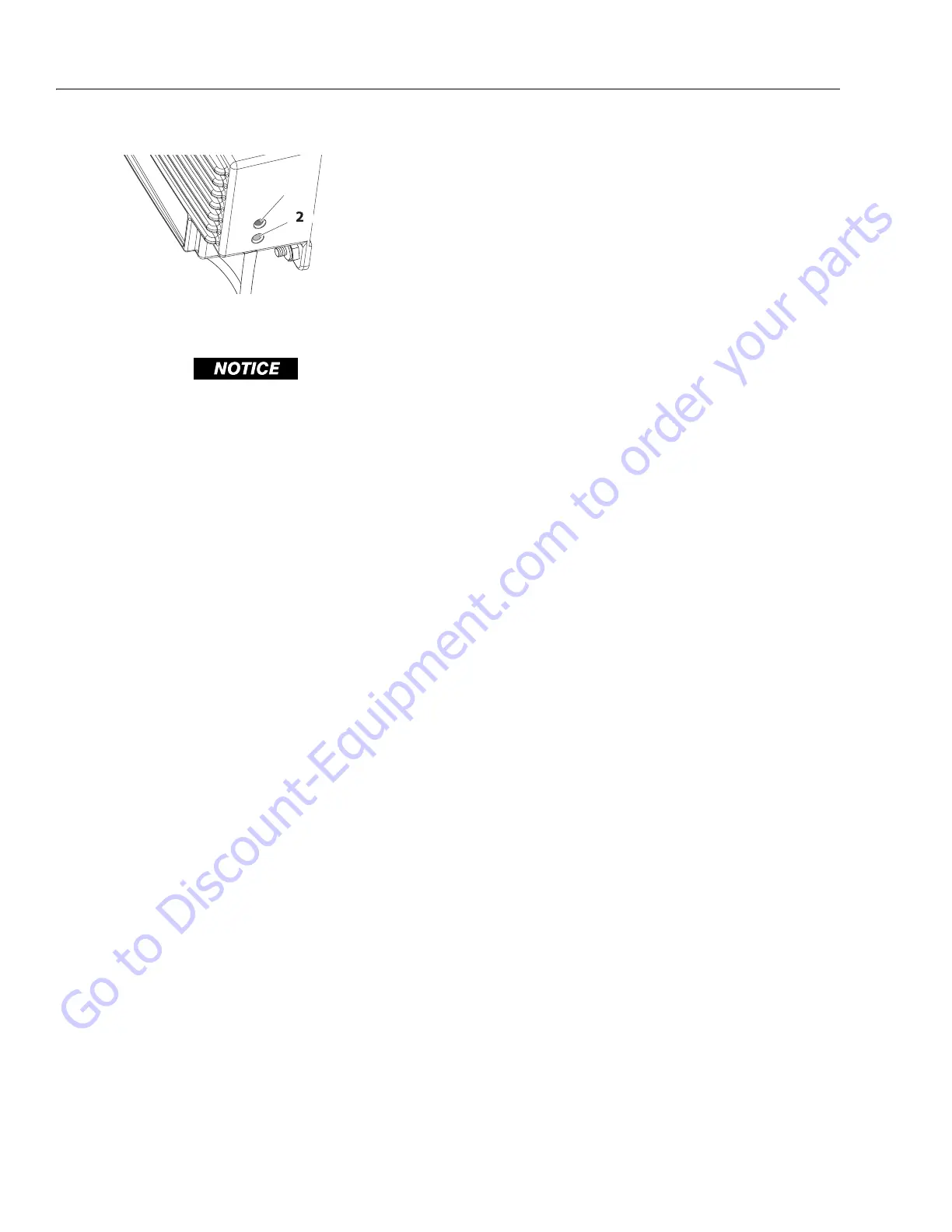

1. Green LED 2. Amber LED
Figure 3-24. Charger LEDs
