4.4.2. Alarm connections
For reference, summary information on alarm connections is shown below.
(See Appendix G for further information and alarm mapping.)
Relay name
Pin out
Critical
OUT1.1 – Normally open
OUT1.2 – Common
OUT1.3 – Normally closed
Minor
OUT2.1 – Normally open
OUT2.2 – Common
OUT2.3 – Normally closed

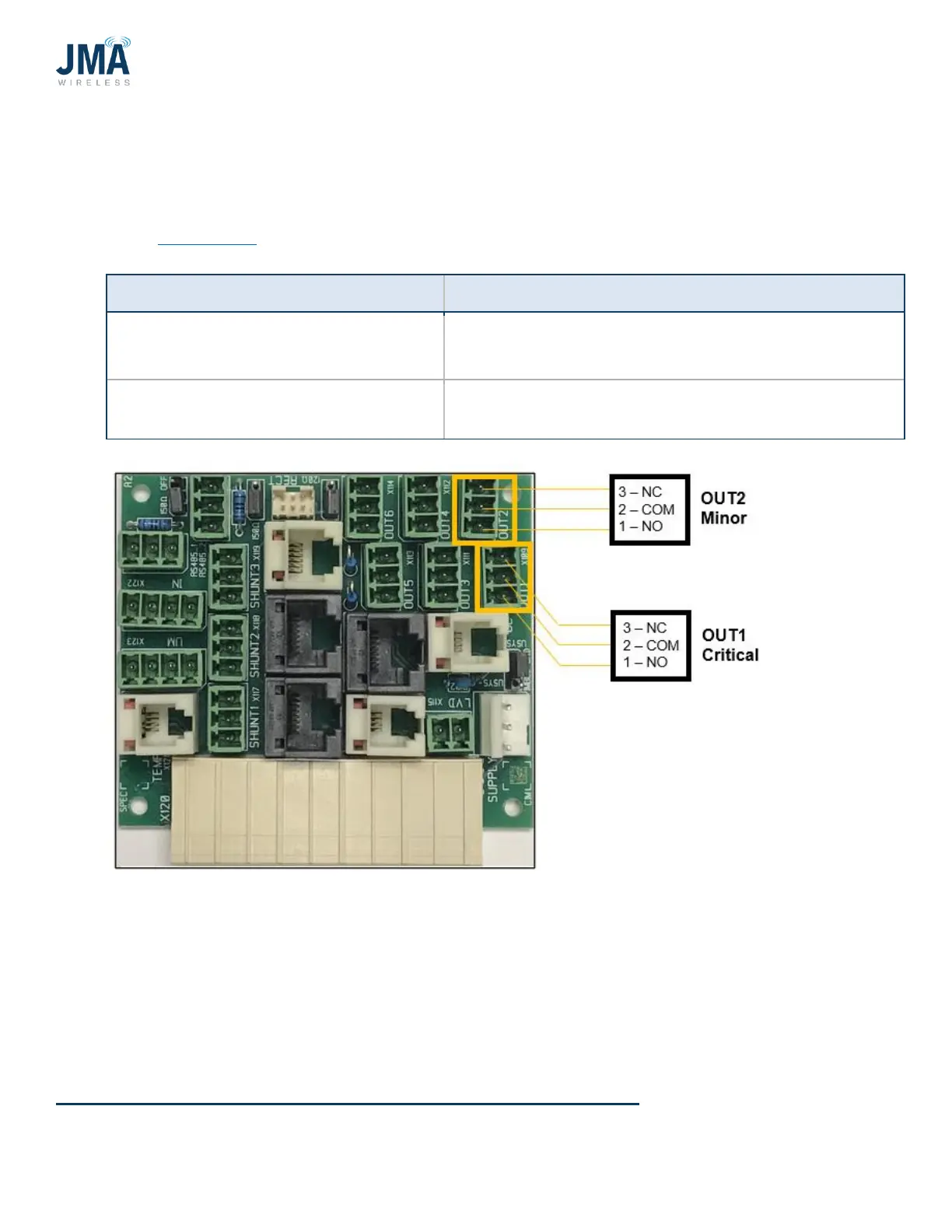

Board is on rear of rack behind Orion controller (interface connectors are included with
unit).
