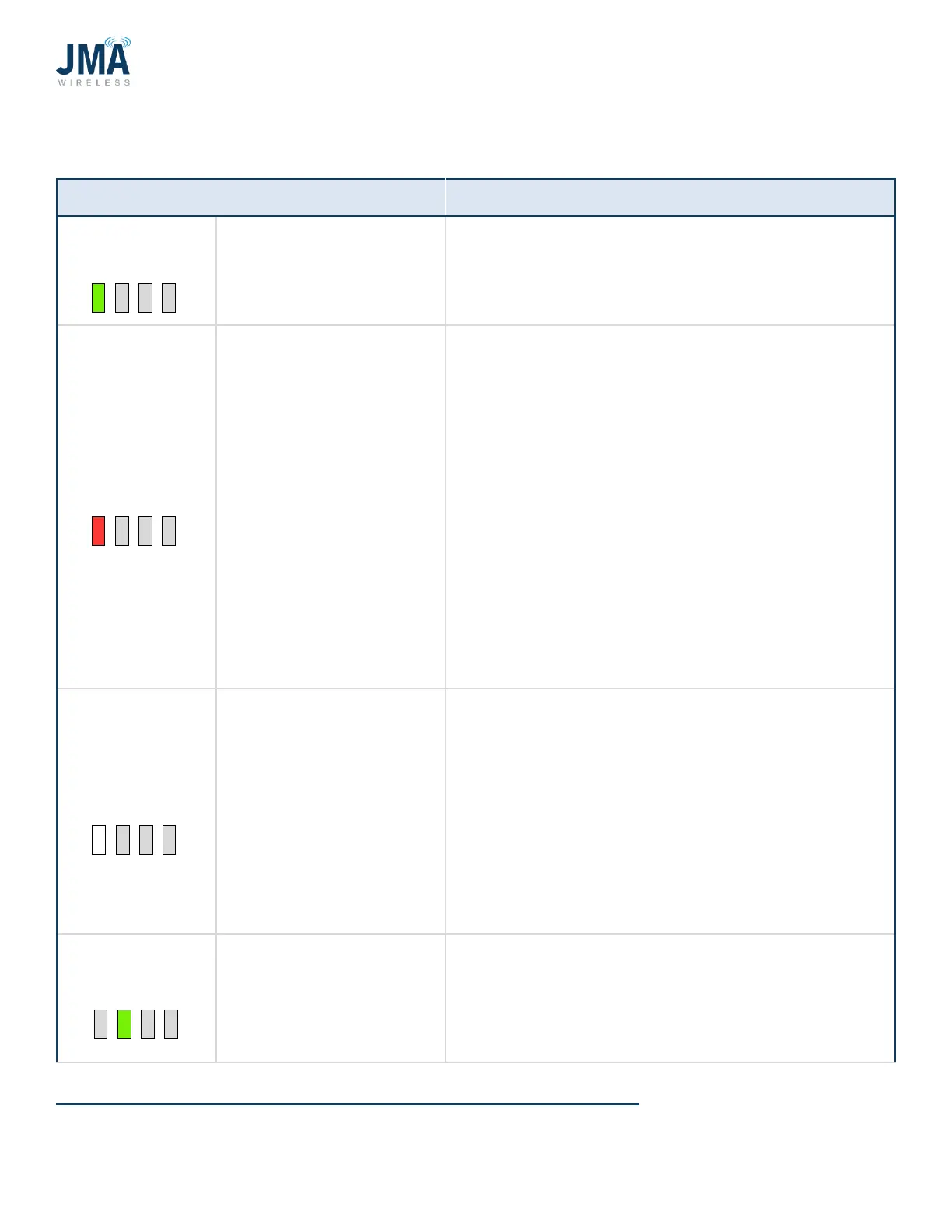

Appendix F: Converter status LEDs
LED
LED behavior
Description
OK LED is solid green
• The converter is operating normally
Action
• N/A
OK LED is solid red
• The converter is not operating due to input being
out of the operating range (under-voltage or over-
voltage)
• The converter is not operating due to over-
temperature protection (OTP)
• The converter is not operating due to a fan failure
• The converter is not operating due to a DC
overvoltage protection (OVP)
• The converter is not operating due to improper
installation
Action
• View converter status on controller
• Reseat converter
• Test status of converter by inserting converter into
different slot
• Replace converter
OK LED is off
• The converter is not working due to a loss of input
power
• The converter is not working due to a converter
failure
Action
• View converter status on controller
• Reseat converter
• Test status of converter by inserting converter into
different slot
• Replace converter
COM LED is solid green
• The converter is communicating with the controller
(if applicable)
Action
• N/A
OK
COM
LD
STA
OK
COM
LD
STA
OK
COM
LD
STA
OK
COM
LD
STA
