JMA Wireless POWERBOOST DC Converter System 1.5 User Manual

PowerBoost DC Converter System 1.5: Quick Start Guide
16995-01 rev. D
This document contains proprietary information. No part of this document should be reproduced
or distributed beyond its intended recipients without the express written consent of JMA Wireless. 65

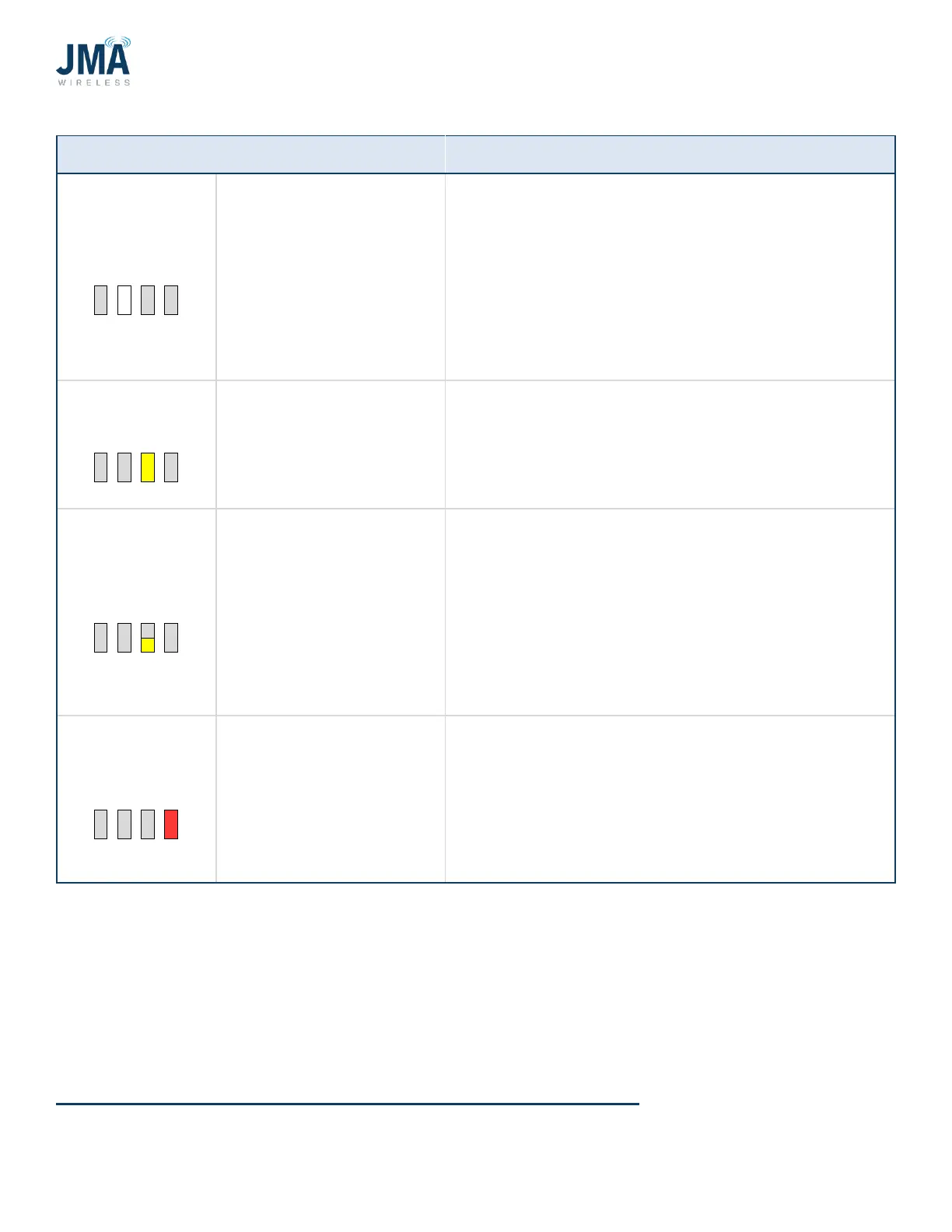

LED
LED behavior
Description
COM LED is off
• The converter is not communicating with the
controller (if applicable)
Action
• View converter status on controller
• Reseat converter
• Test status of converter by inserting converter into
different slot
• Replace converter
LD LED is solid yellow
• The converter is operating at less than 5 percent
load
Action
• N/A
LD LED is blinking yellow
• The converter is operating in current limit mode
• The DC output of the converter is short circuited
Action
• View converter status on controller
• Reseat converter
• Test status of converter by inserting converter into
different slot
• Replace converter
STA LED is solid red
• The converter is shut down permanently (latched
protection) due to an over-temperature or a DC
over-voltage condition
Action
• Reseat converter
• Replace converter
OK
COM
LD
STA
OK
COM
LD
STA
OK
COM
LD
STA
OK
COM
LD
STA
