PowerBoost DC Converter System 1.5: Quick Start Guide
16995-01 rev. D
This document contains proprietary information. No part of this document should be reproduced
or distributed beyond its intended recipients without the express written consent of JMA Wireless. 8
• Ground wiring must be installed in accordance with all local and national electric codes
and requirements.

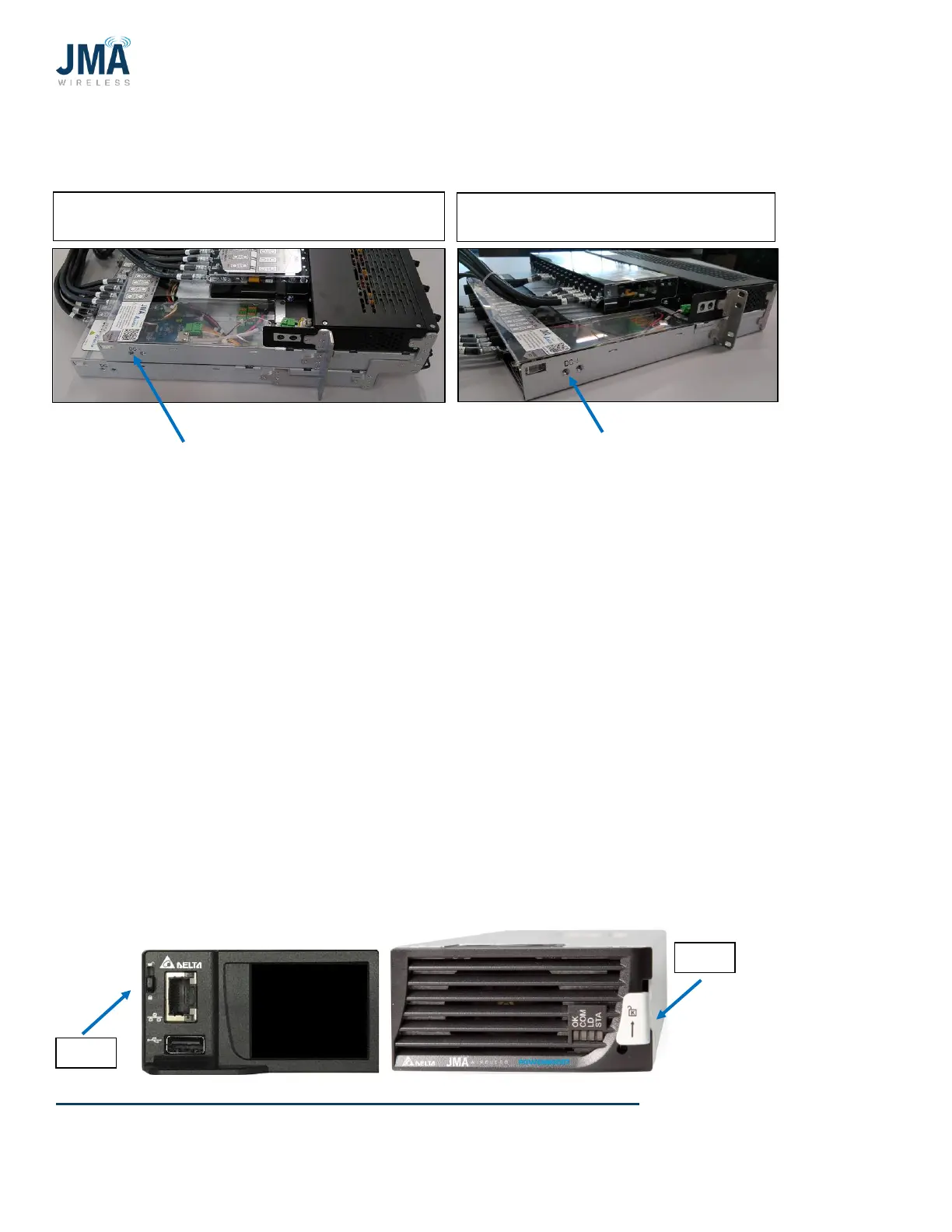

3.4. How to insert and remove modules from boost rack
The following information explains how to insert and remove modules from the boost rack.
The Orion controller comes pre-installed and is typically removed only for the purpose of re-
setting the controller.
Insertion:
Simply slide the Orion controller and/or boost module into the appropriate bay and push it
fully in. The module will automatically latch in place. For the Orion controller, push on the
left side (not on the touch screen).
Removal:
Orion controller: Locate the unlocking slide lever at the upper left corner. Hold the slide lever
in the “up” position and pull on the protrusion at the bottom to remove the controller. The
Orion controller is hot-swappable; loads will remain powered, but will not be regulated until a
controller is installed.
Boost module: Locate the unlocking lever at the right side. Hold the lever in the “up” position
and pull on it to remove the boost module. Use only boost modules specified for use in
PowerBoost.
