PowerBoost DC Converter System 1.5: Quick Start Guide
16995-01 rev. D
This document contains proprietary information. No part of this document should be reproduced
or distributed beyond its intended recipients without the express written consent of JMA Wireless. 7
Installation
3. Unbox, mount PowerBoost unit, connect ground
Caution! Wear a grounded ESD wrist strap when handling equipment or working with
electrical connections.

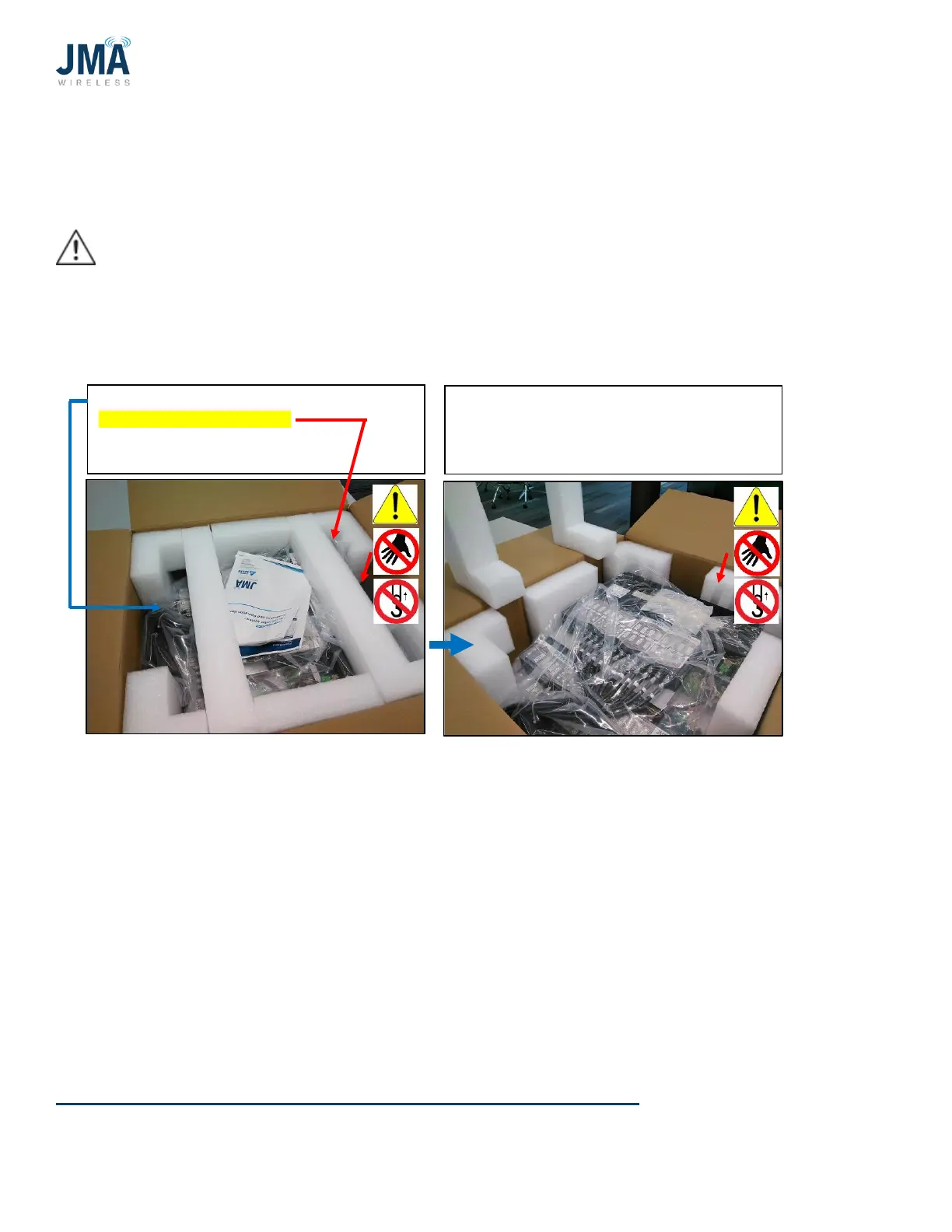

3.1. Unbox.
3.2. Mount securely in rack.
Mounting hardware supplied in box under unit.
3.3. Attach ground cable 6AWG or larger
Compression lug for 6AWG (1/4” x 5/8” spacing) and bolts provided in hardware kit. (See
photos below)
• Arrows show recommended point for ground lug. Typically, one ground cable per
PowerBoost unit is acceptable, provided that the factory-supplied mounting brackets are
present and secure.
Identify: Rear- pre-installed cables.
Caution! Do not lift at front
Do not lift unit by cables.
Lift by grasping under sides & rear.
To Next Page
