PowerBoost DC Converter System 1.5: Quick Start Guide
16995-01 rev. D
This document contains proprietary information. No part of this document should be reproduced
or distributed beyond its intended recipients without the express written consent of JMA Wireless. 20
5.2.1. Select a config file via touch screen
To select a config file via the Orion touch screen (without using a laptop / without logging
into the Orion Ethernet GUI):
Think of swipes horizontally on the Orion touch screen as flipping through pages in a
book; repeated swipes to the right return toward “front of the book”; in other words,
toward the Orion main screen.

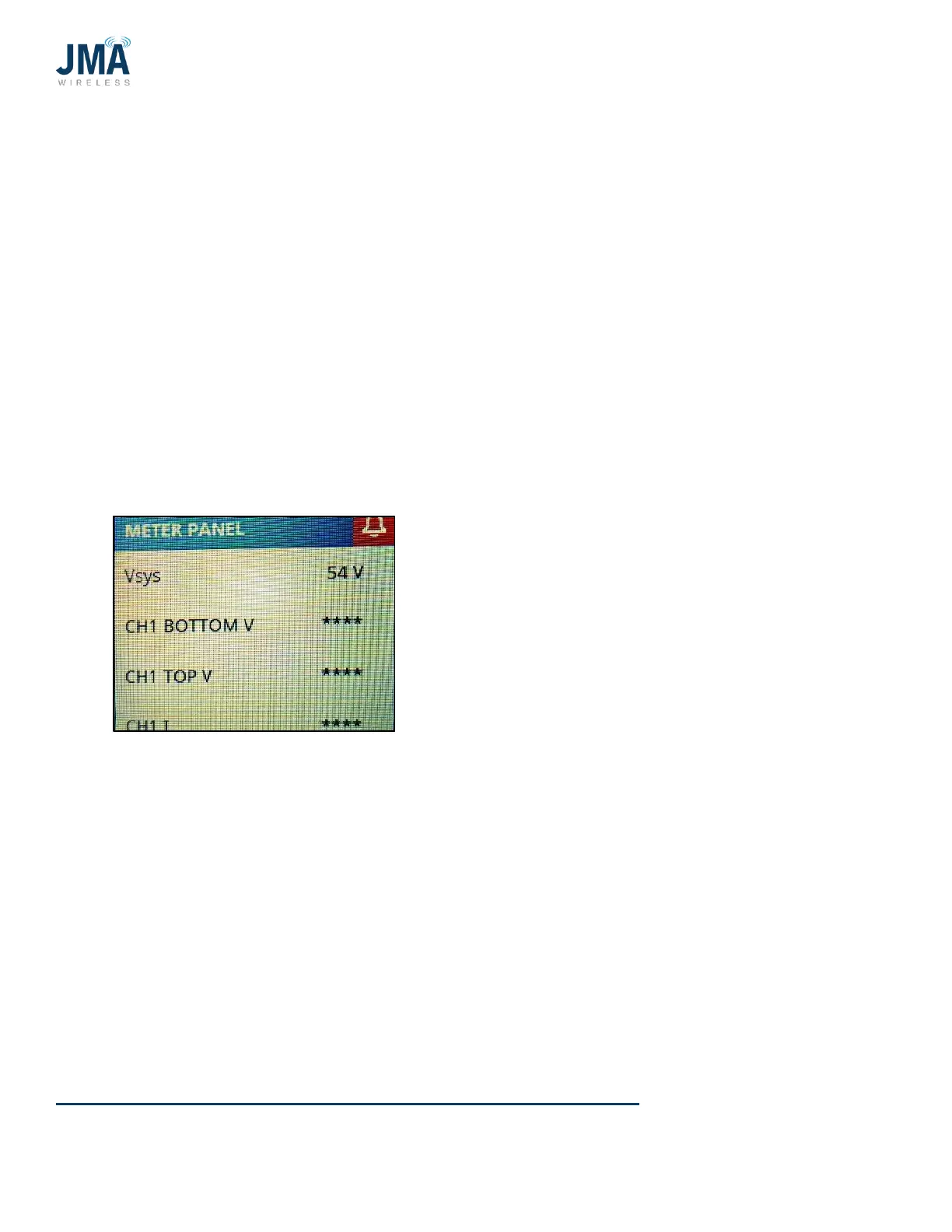

From the factory, default display page for the Orion controller is the “meter panel” page,
which shows parameters for each channel. Scroll up and down to scroll through the
channels. Rather than one long (vertical) string of all channels, the meter panel page is
divided into segments of approximately 5 channels. To advance forward through the
meter panel page segments, scroll down to the bottom of a given segment and choose
“Next.” To return through the segments, swipe right in a given segment.
