PowerBoost DC Converter System 1.5: Quick Start Guide
16995-01 rev. D
This document contains proprietary information. No part of this document should be reproduced
or distributed beyond its intended recipients without the express written consent of JMA Wireless. 24

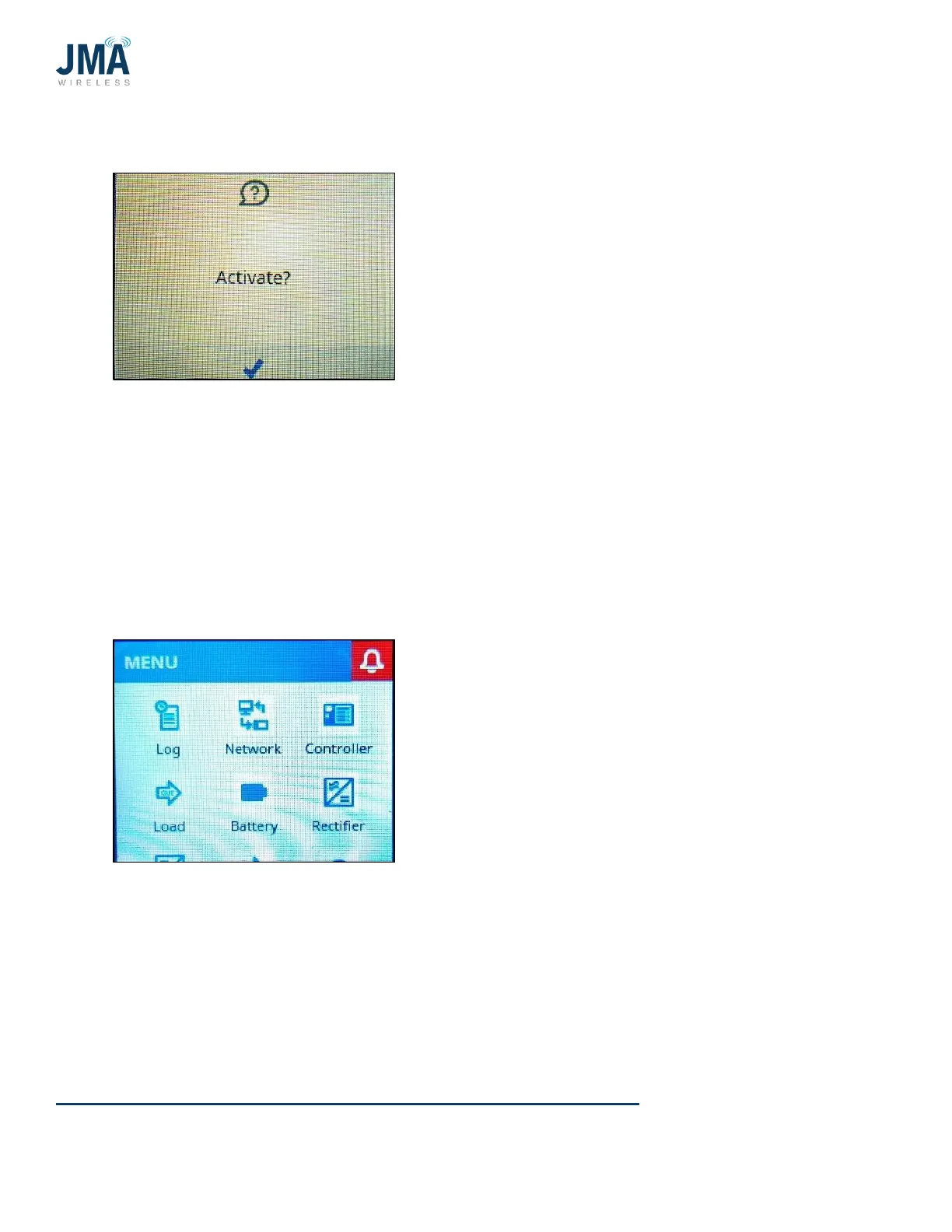

Orion will present a confirmation screen; touch the blue checkmark at bottom.
If using config file 2OVP, 3OVP, 4OVP: those files are fully defined and no further action is
necessary.
If selecting the config file CFG_06OVP… or CFG_12OVP…, an extra step is necessary to
enable the desired channels (because these two config files ship by default with no
channels enabled). Channel enable can be performed from the Orion touch screen as
follows:
Swipe the Orion touch screen as needed to reach the “Menu” screen:
