PowerBoost DC Converter System 1.5: Quick Start Guide
16995-01 rev. D
This document contains proprietary information. No part of this document should be reproduced
or distributed beyond its intended recipients without the express written consent of JMA Wireless. 43

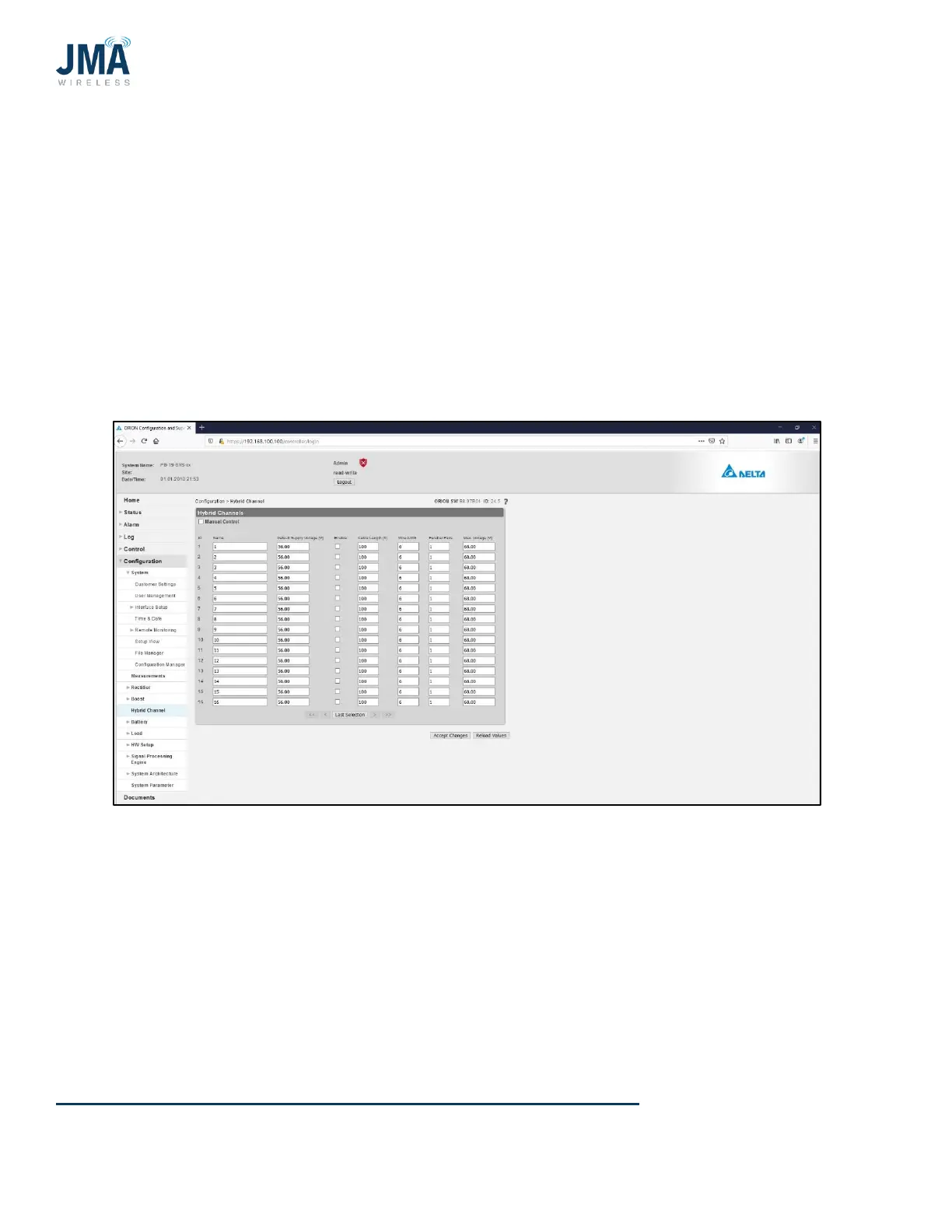

After activating the “CUSTOM” config file, navigate menu path: Configuration, System,
Hybrid channel. See image below. The purpose of navigating to this menu is to do 2
things:
• Enter the desired channel mapping numbers in the “Name” column.
• Enable the desired channels.
• Enabled channels must have a valid OVP channel reference in their “Name” entry (ie.
101, 102, etc.). Enabling a channel that doesn’t have a valid “Name” mapping entry
will result in error message.
Note: Do not change other existing entries in this menu; focus is only on the “Name” and
“Enable” columns.
