1.5 STANDARD ACCESSORIES

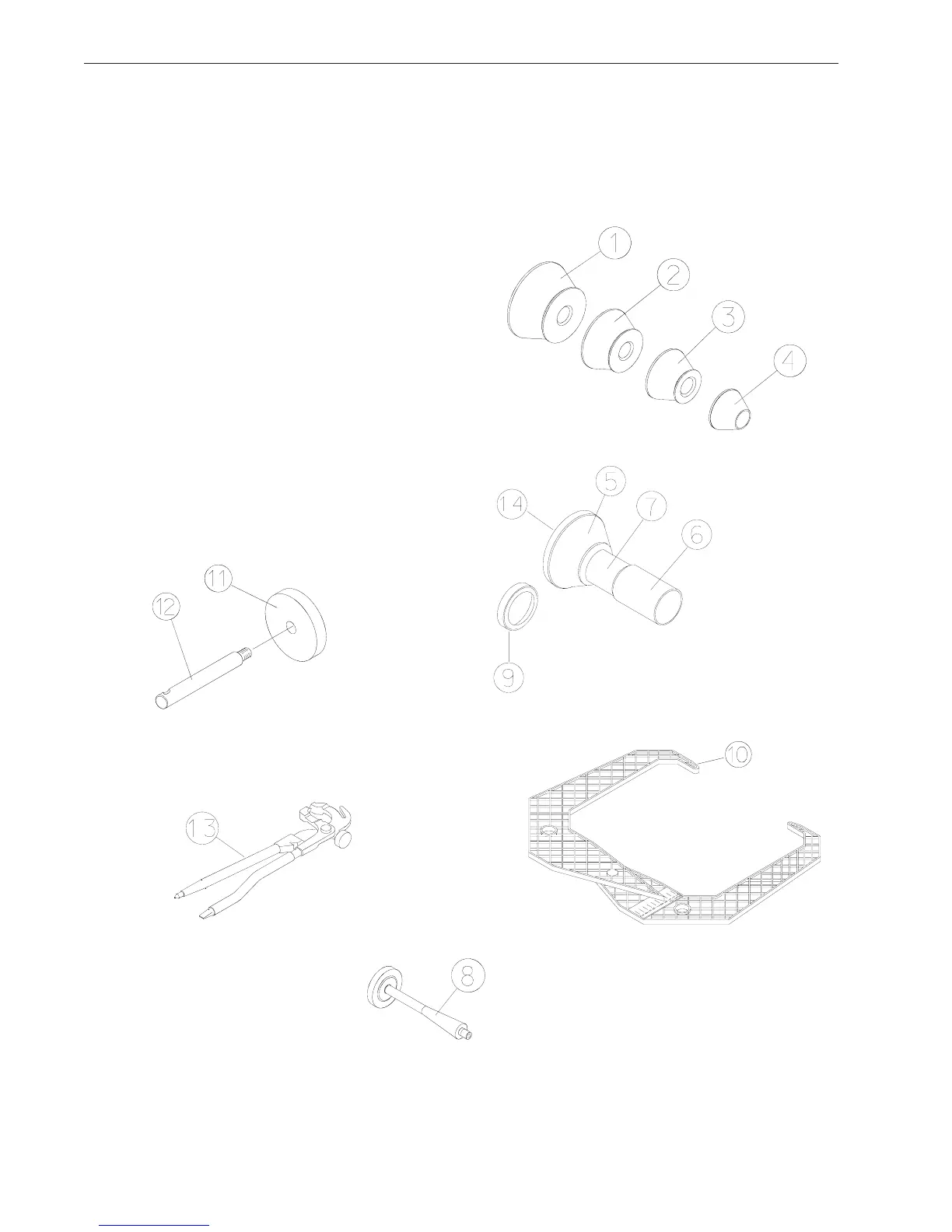

Standard accessories ( Figure 1) included with the Standard BFH 1000 are:
1 EAM0003J08A Cone, 85-132 mm / 3.3”-5.2”
2 EAM0003J07A Cone, 71-99 mm / 2.8”-3.9”
3 EAM0003J06A Cone, 56-84 mm / 2.2”-3.3”
4 EAM0003J05A Cone, 43-63 mm / 1.7” - 2.5”
5 EAC0058D07A Cup - Large Pressure
6 EAM0005D54A Plastic Sleeve
7 EAA0283D53A Power Clamp Nut
8 EAM0005D40A Weight - Shaft Calibration
9 EAC0058D08A Small Presure Disk
10 EAA0247G21A Caliper - Rim Width
11 EAC0060G02A Flange - Cover, Hook
12 EAM0006G01A Pin - Accessory
13 58839 Weight Pliers
14 EAC0058D15A Soft Protective Ring
Figure 1
